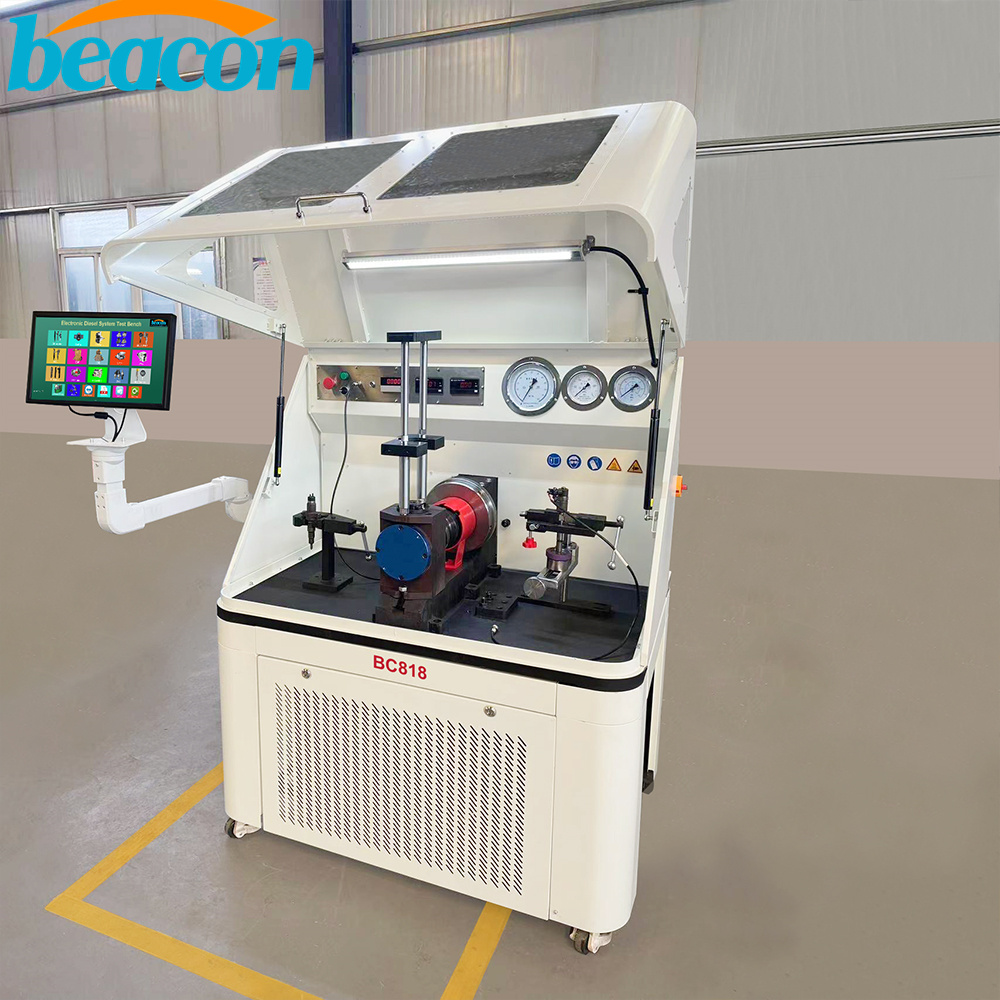

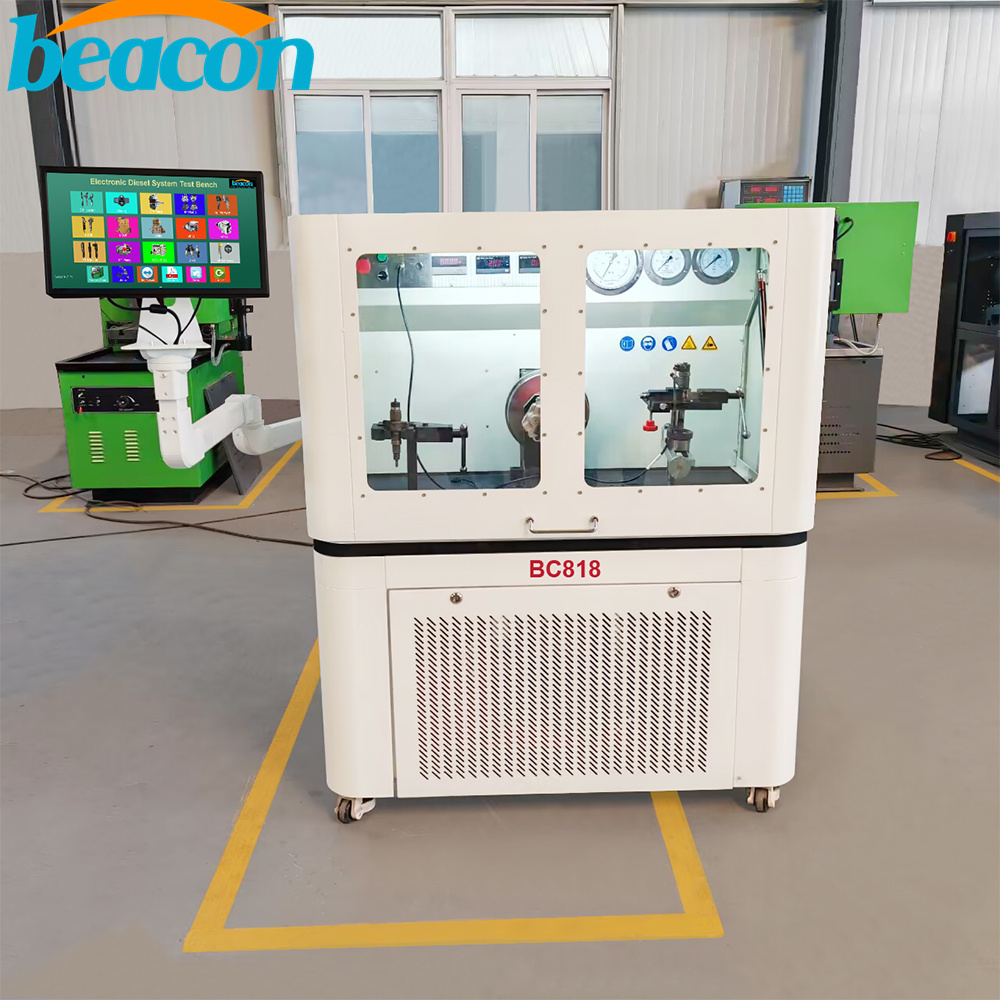

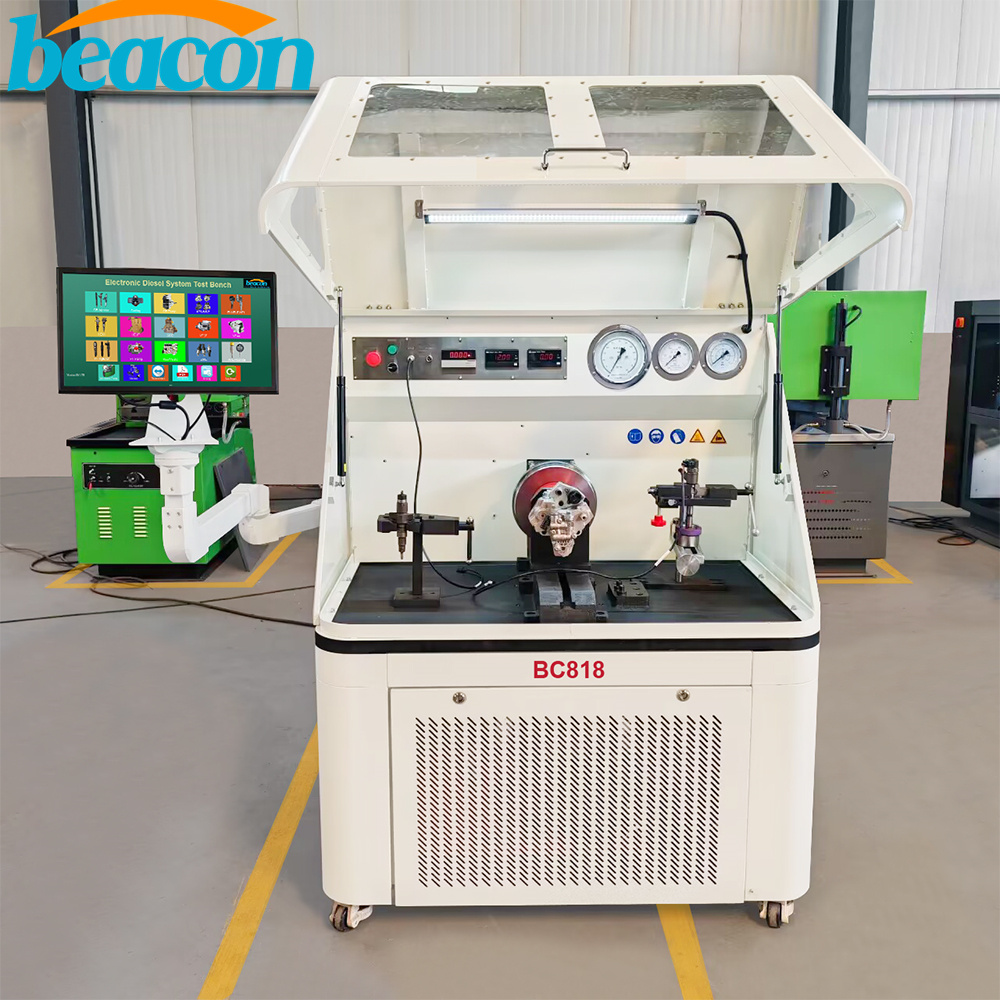

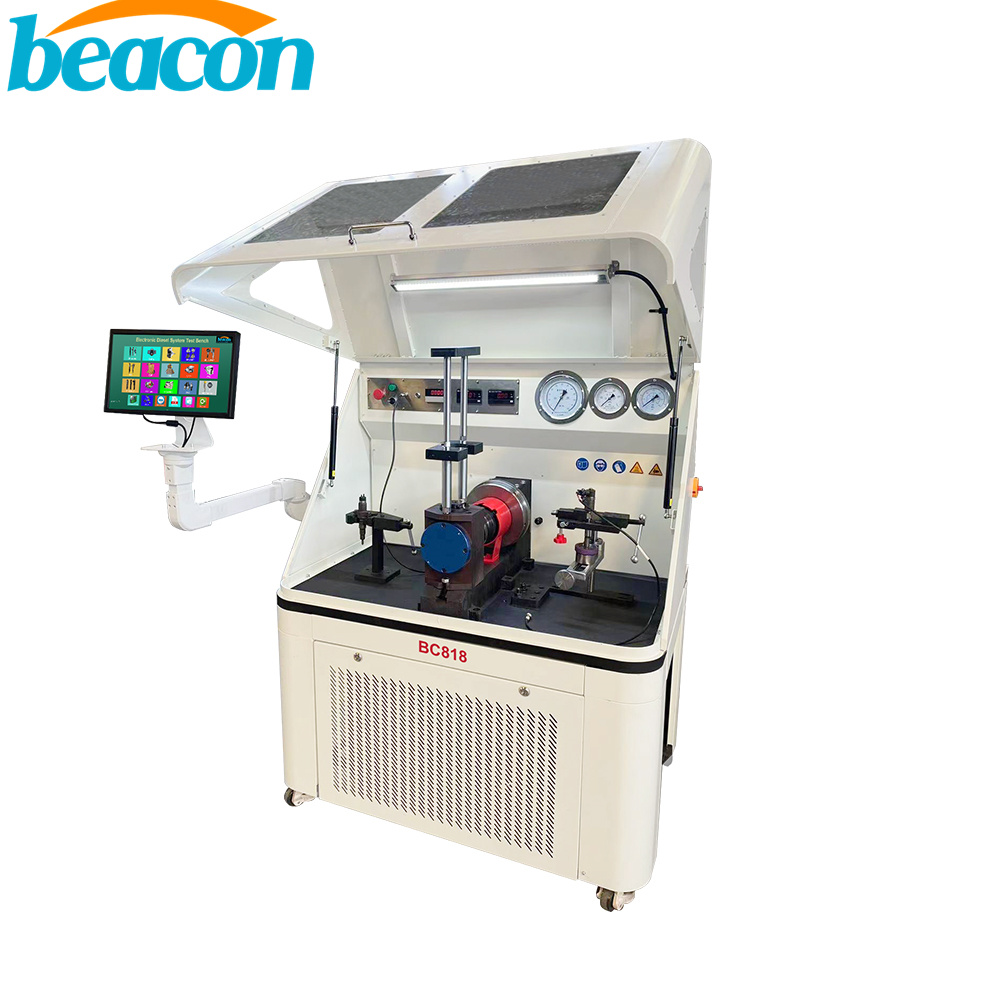

Bc818 BEACON Common Rail Injector Pump Testing Machine Full Function BC818 EUI EUP HEUI CRDI Pump Testing Machine Bench
Product Application
1. Industrial computer Windows operating system
2. With database, can can search, store, modify test data and generate new data.
3. Automatic measurement and generate QR code
4. Closed-loop control, which can automatically adjust the control rail pressure, the rail pressure is stable, and the fluctuation value is ±1 Mpa.
5. Display rail working pressure is 200Mpa, maximum pressure is 250Mpa
6. Common rail injection quantity, injection time, number of injections can be freely changed
7. With ultra high pressure protection, the rail pressure is more than 250 Mpa will automatic shutdown
8. Oil temperature automatic control ± 40℃
9. With glass protective door, safe operation and easy observation
10. Can detect HEUI engine oil circuit
11. Oil temperature control using compressor refrigeration (optional)
12. Support Internet connection for remote upgrade
13. With injector response time detection (optional)
inquiry nowIntroduction
Main function
1.Integrated automatic operation, including test bench speed,rail pressure,flow measurement,temperature control, etc. measurement report analysis, one-button operation.
2.Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, heavy oil and other manufacturers solenoid valve or piezoelectric crystal injector and high pressure common rail pump.
3.Can test Bosch, Cummins and other EUP/EUI oil pumps.
4.Can test HEUI medium pressure common rail injector.
5.Can test HEUI medium pressure common rail pump(optional).
6.Can test double solenoid valve nozzle injector(optional).
7.Automatic generation of Q code
8.Can test injector response time.
parameter
|
item
|
BC808
|
|
Voltage
|
220V /380V
|
|
7.5Power
|
7.5 KW
|
|
Certification
|
CE/ISO
|
|
Applicable Models
|
diesel and CAT cars
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
beacon
|
|
Warranty
|
12Months
|
|
Special Features
|
it can test diesel injectors and pumps , traditional and common
|
|
Function
|
it is multifunctional test bench
|
|
Keywords
|
EUIEUP, HEUI ,,INJECTOR CODING AND common rail injector pump testing
|
|
Shaft speed
|
0-3000r/min
|
|
Oil supply pressure
|
0-0.4mpa
|
|
Funciton1
|
test all the common rail injector and pump and piezo injector
|
|
Funciton2
|
test DENSO HP0 pump
|
|
Weight
|
700kg
|
|
Color
|
Customers' Requirements
|
