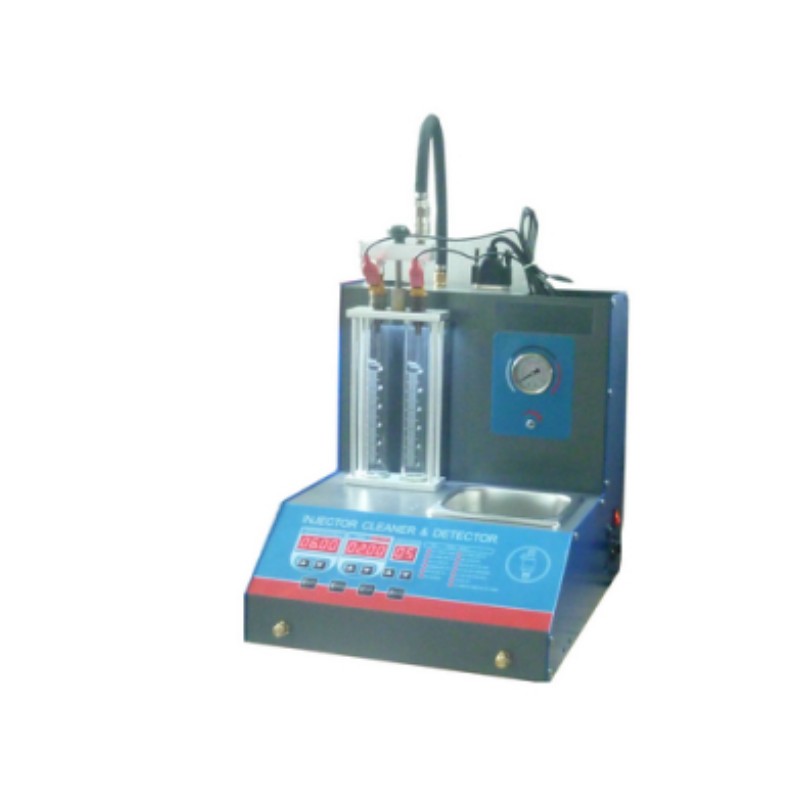

Ultrasonic heated cleaning:
1. can clean for one or two injectors at the same time,
2.Uniformity testing: check injection uniformity of each injector
Tel:+86-13375386268
Email: beacon@beacon-machine.com
1.LED display
2.High definition tube display, makes operation clarity and easy
3.Adopt electronic voltage control technology, make oil pressure stable, and adjust range wide
4.Tank level visual display, test liquid can be reused.
5.Allowed to adjust the injector test time, frequency, injection time, the shortest switaching cycle etc.within range.
6.With heating.
Dimension 550mm*450mm*530mm
Power 200w
Weight 20kgs
Voltage AC220V/110V 50Hz
Tank Capacity 4L
Test Tube Capacity 125CC
Ultrasonic Frequency 28KHZ
Rotation Speed 0~15000r/min
Step: 100r/min
Time Counting Range 0~9900 sec
Oil Pump Pressure 1.8kg/cm²---10kg/cm²
FuelFlow 4.5 L/min
Step 50 sec (adjustable)
