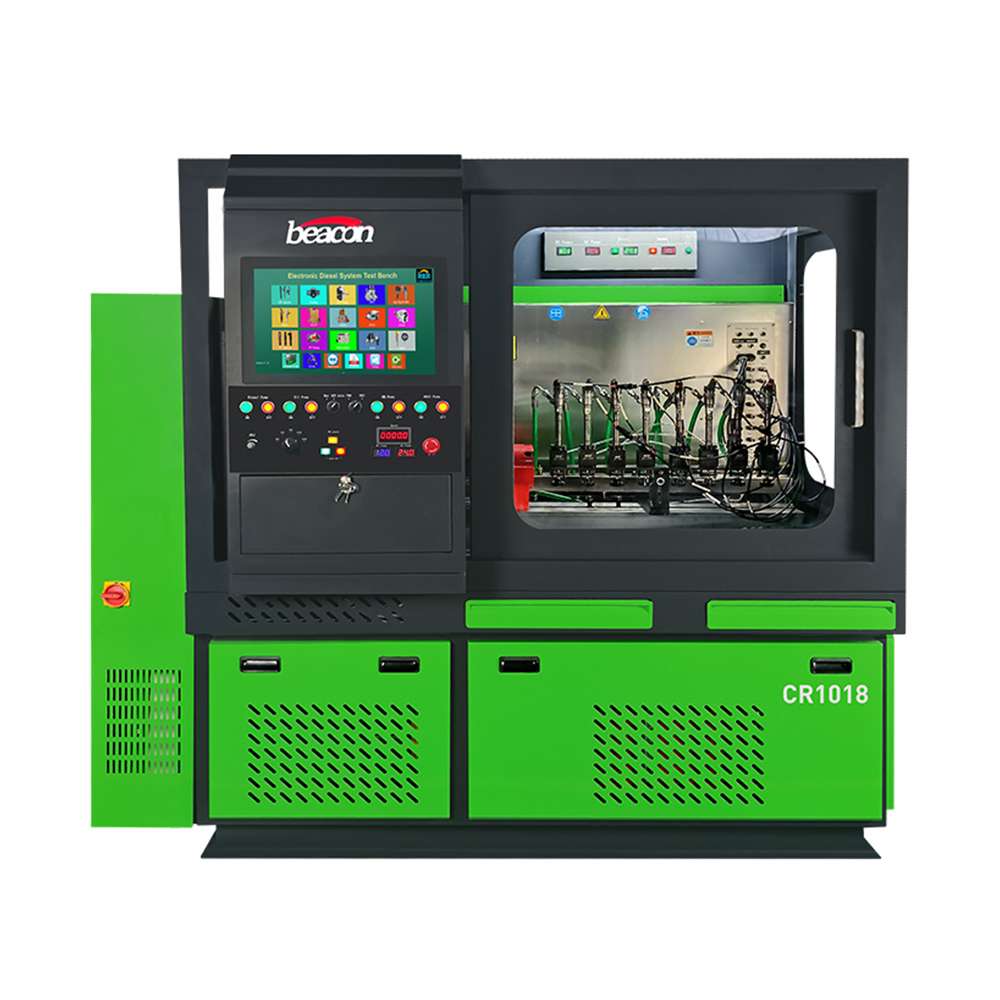

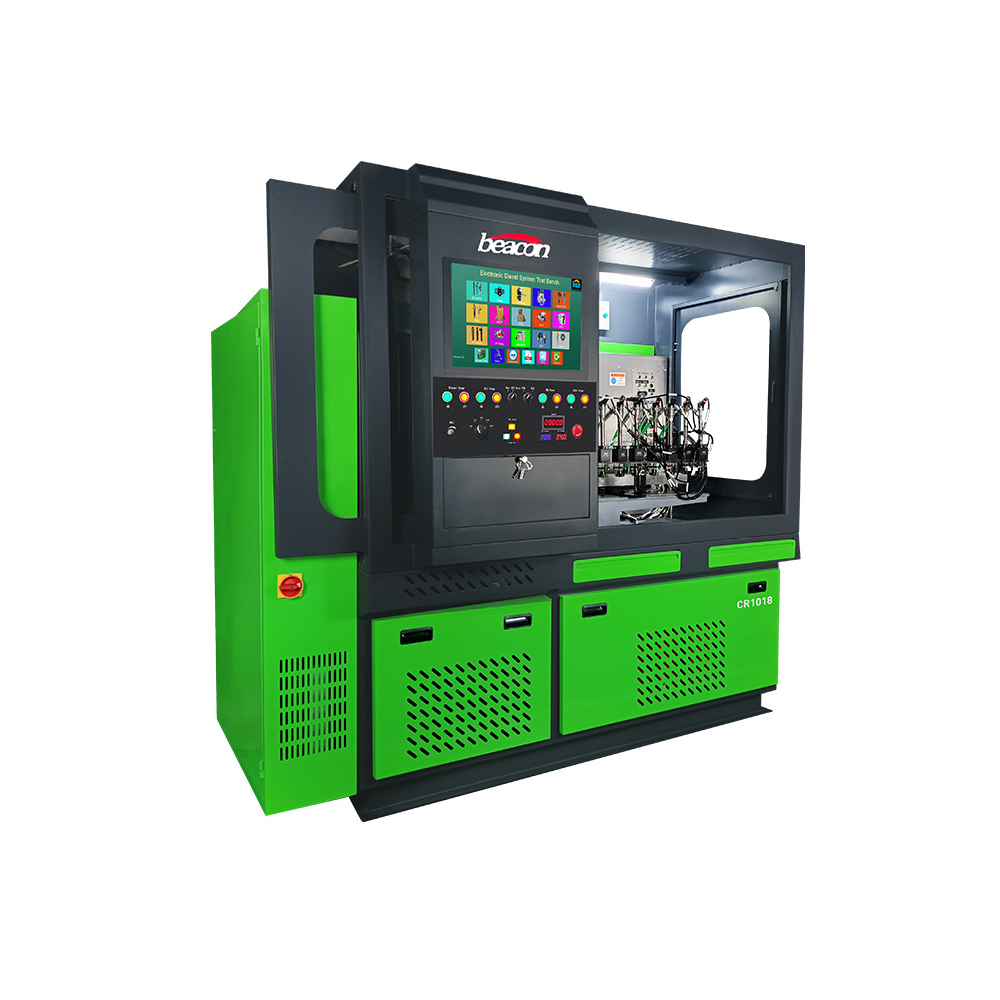

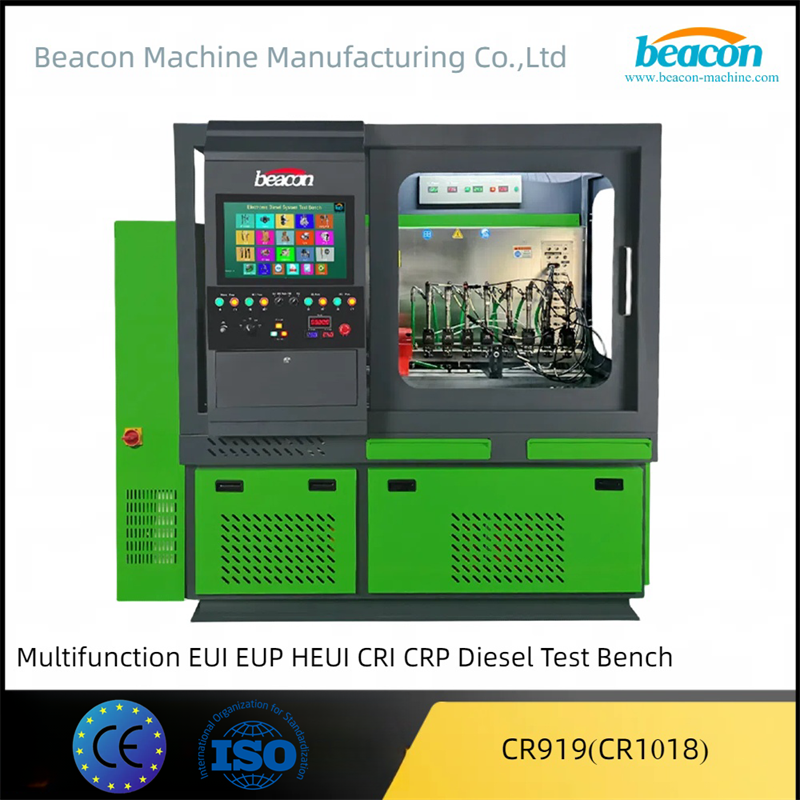

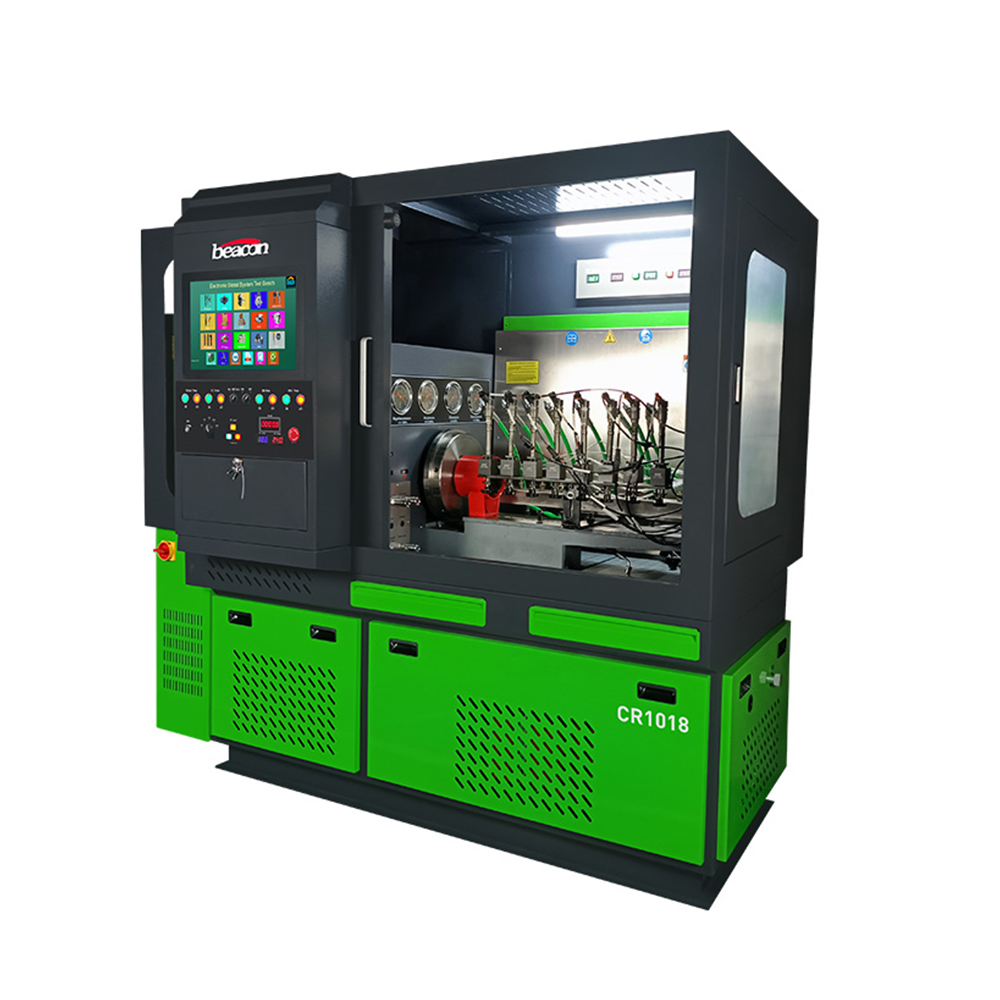

CR1018 Common Rail Diesel Fuel Injection Injector Pump Test Bench HEUI C7 C9 Injector Test Bench With EUI EUP Cambox

CR1018 common rail injector test bench function characteristic

1.Test all the manufacturers of common rail injector

2.Test all the manufacturers of piezo injector

3.Test all the manufacturers of common rail pump

4.Test DENSO HP0 pump

5.Test CAT common rail (HEUI) injector

6.Test CAT common rail (HEUI) engine oil pump

7.Test CAT 320D common rail pump (the world's first successful development)

8.Test EUI/EUP (can adjust the lift but not to change the camshaft)

9.Test VP44 VE VP37 pump optional function

10.Test RED3 RED4 TICS ZEXEL electronic control pump optional function

11.Drive circuit board(solenold valve electric parameters to enhance the voltage current,time,pull in voltage ,current,time,keep

voltage ,current,time,according to the setting of parameters of production factory)

12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2

PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.

Driving signal waveform can be programed.

CR1018 injector test bench main features:

(1) Integrated automatic operation, including test bench speed, fuel rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.

(2) It can test solenoid valve type or piezoelectric crystal type injectors, common rail high pressure pumps from manufacturers such as Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, Beiyou, and heavy oil. (Note: some functions Optional)

(3) It can test Bosch, Caterpillar, Cummins, Delphi, Nanyue Hengyang, Wittur and other unit pumps and pump nozzles, including Delphi E3 dual solenoid valve pump nozzles (optional);

(4) It can test HEUI medium pressure common rail injectors and actuation pumps (optional);

(5) Caterpillar 320D high pressure pump can be tested (optional);

(6) VP37, VP44, RED4, Denso V3/V4/V5 oil pumps can be tested (optional);

(7) HPI injector and PT pump (optional) can be tested;

(8) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;

(9) The database is fully open, and the part number can be increased.

(10) The network is automatically upgraded, and the test data and functions are always up-to-date;

(12) The response time of fuel injection can be tested;

(13) Injector compensation codes can be generated;

(14) Injector resistance and inductance can be tested
