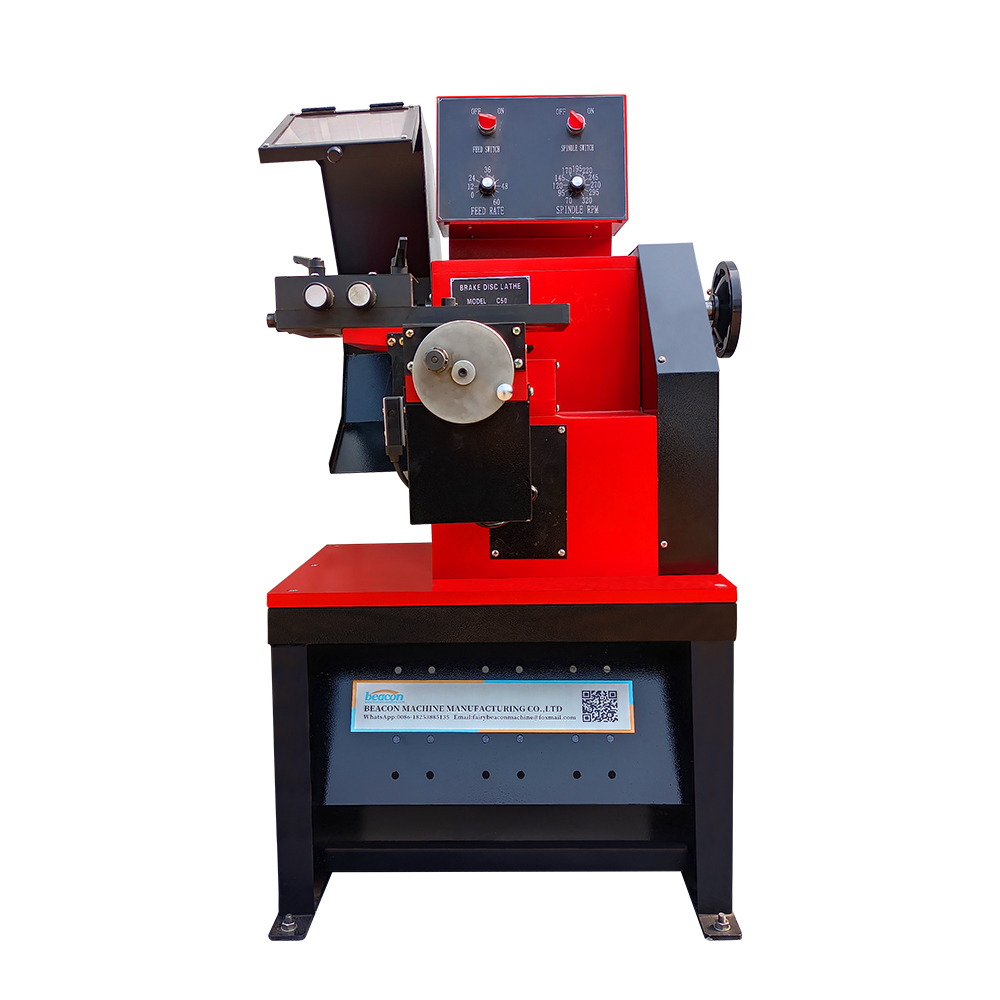

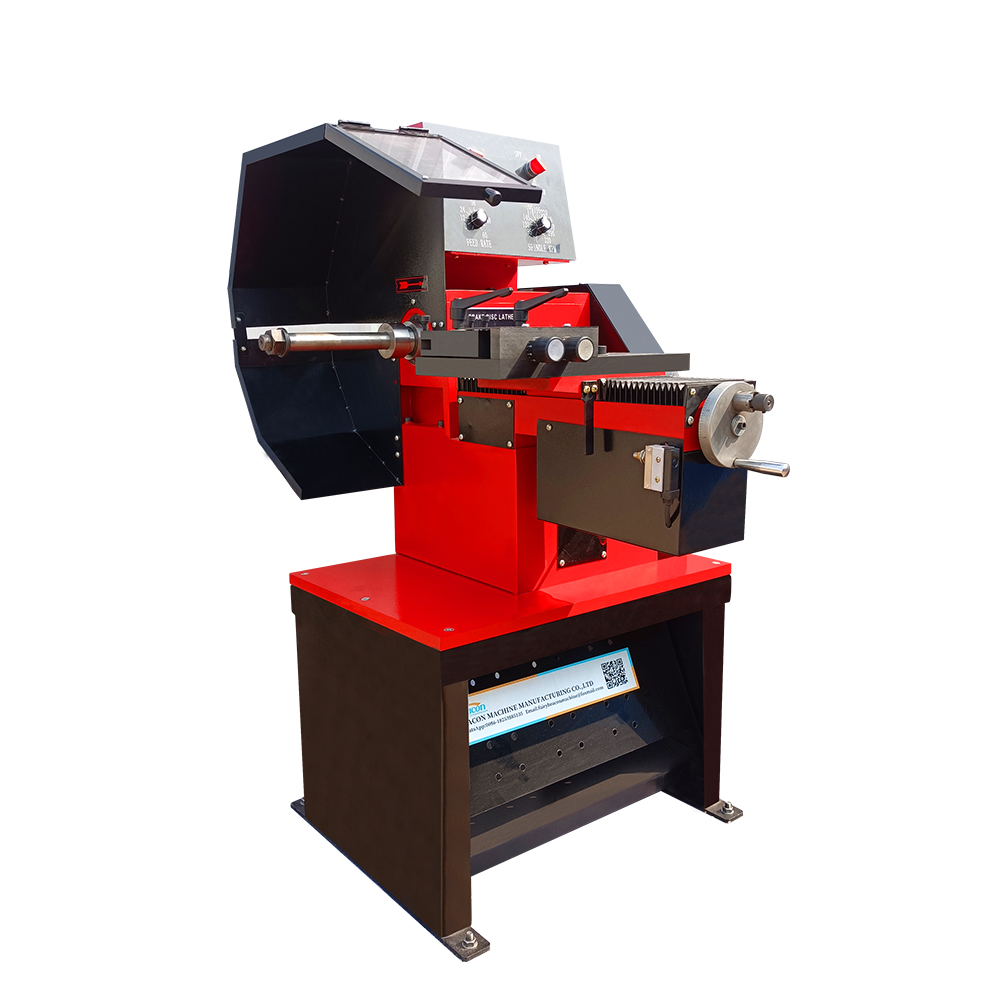

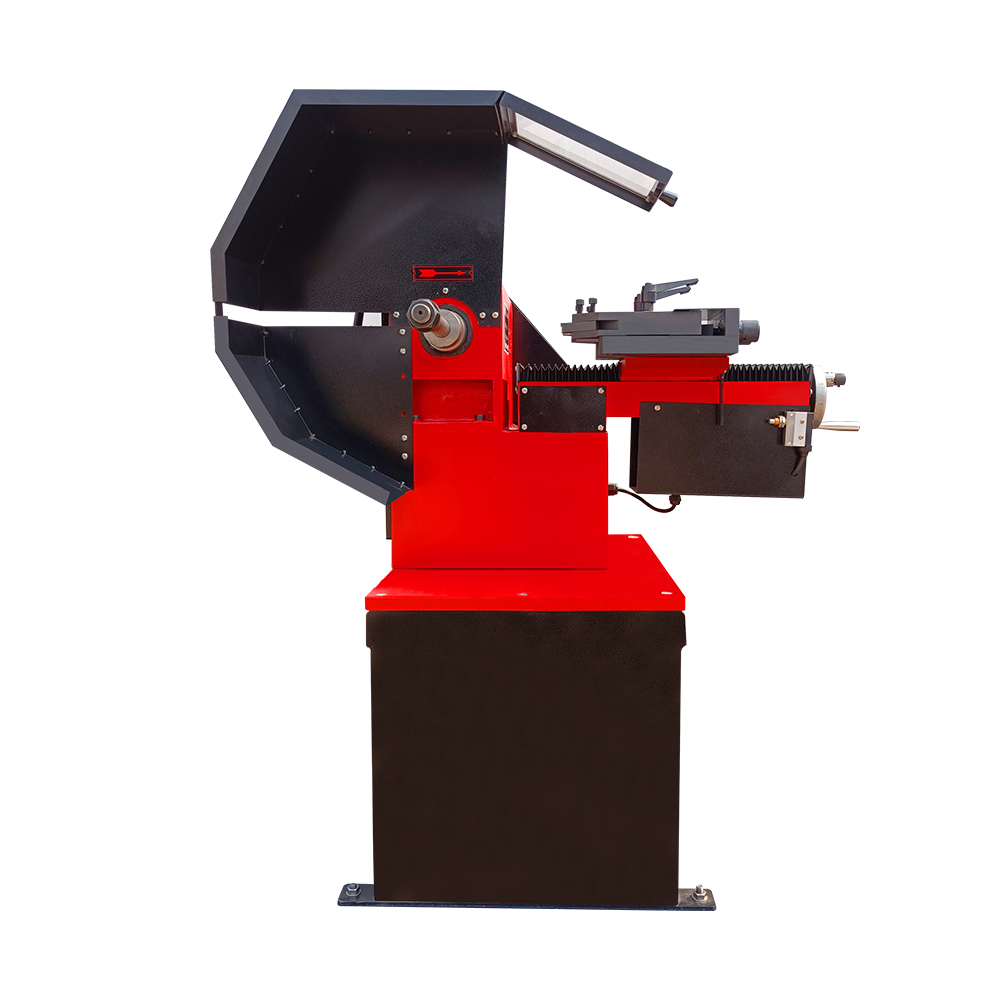

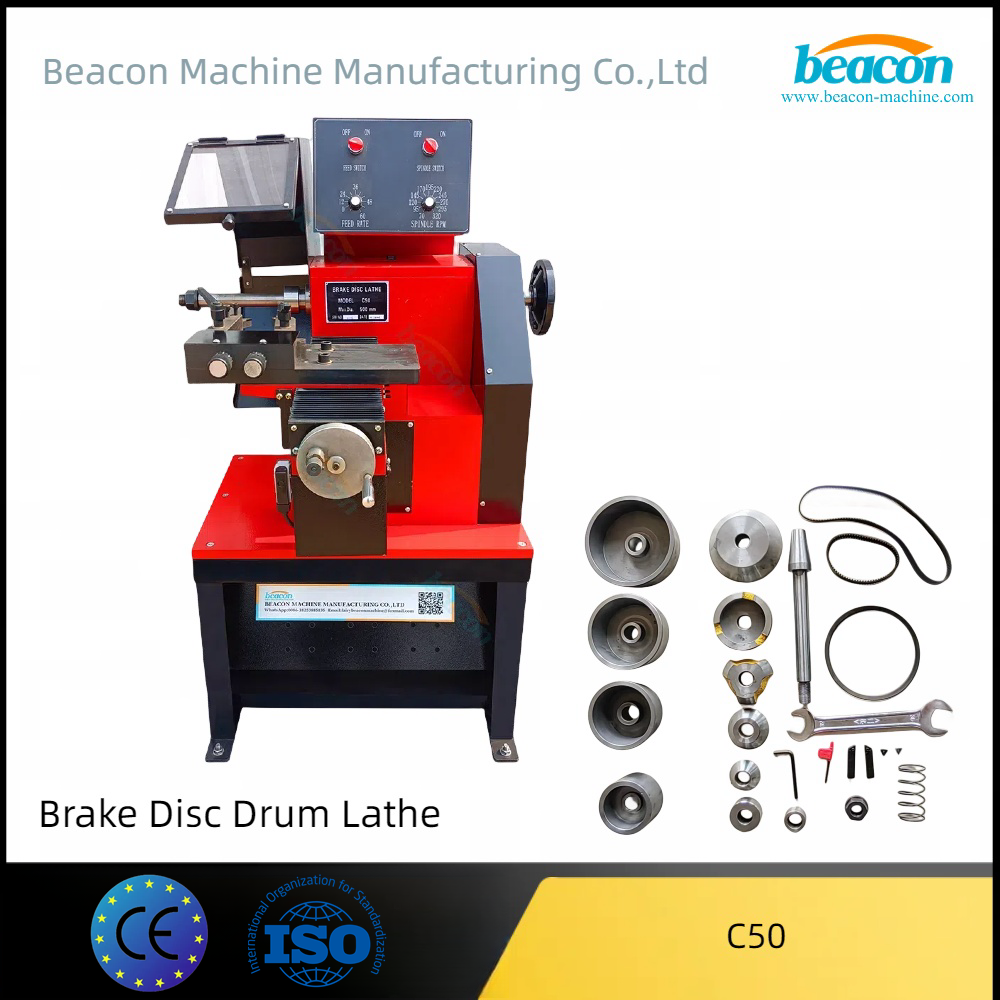

C50 brake drum and disk lathe machine is suitable for the brake disc maintenanceof small and medium-sized cars, the machine tool shapedesign is reasonable and beautiful, the spindle and feedare used infinitely variable speeds, simple operation, easyto use. Using the cone sleeve and the brake disc innerhole stop positioning, high machining precision
|
Main Specifications |
C50 |
|
Brake Disc Dia. |
100-500MM |
|
Max. Disc Thickness |
75MM |
|
Spindle Weight(capacity) |
46KG |
|
spindle Speed(Stepless) |
70-320rpm |
|
Feed Speed |
0-0.66MM |
|
Main Motor |
220v/ 50/60HZ 0.6KW |
|
Machine Size |
1020*830*1230MM |
|
G.WIN.W |
230KW |
|
Packing Size |
1060*820*1340MM |
