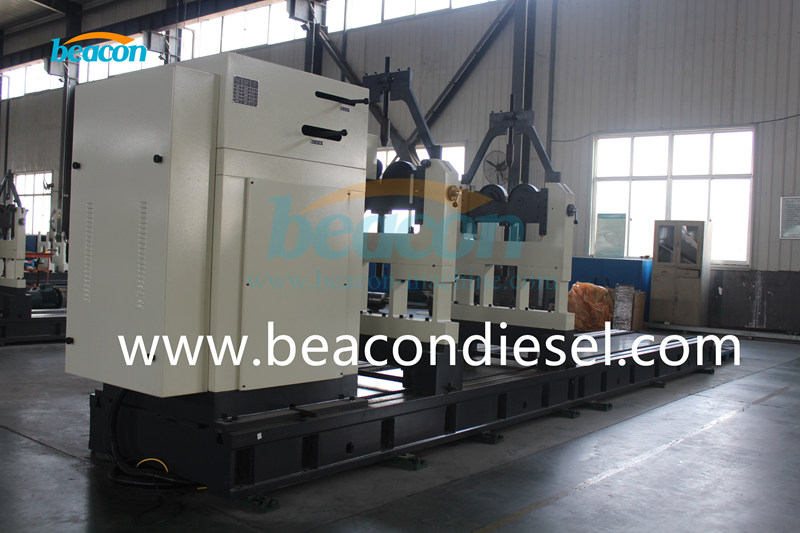

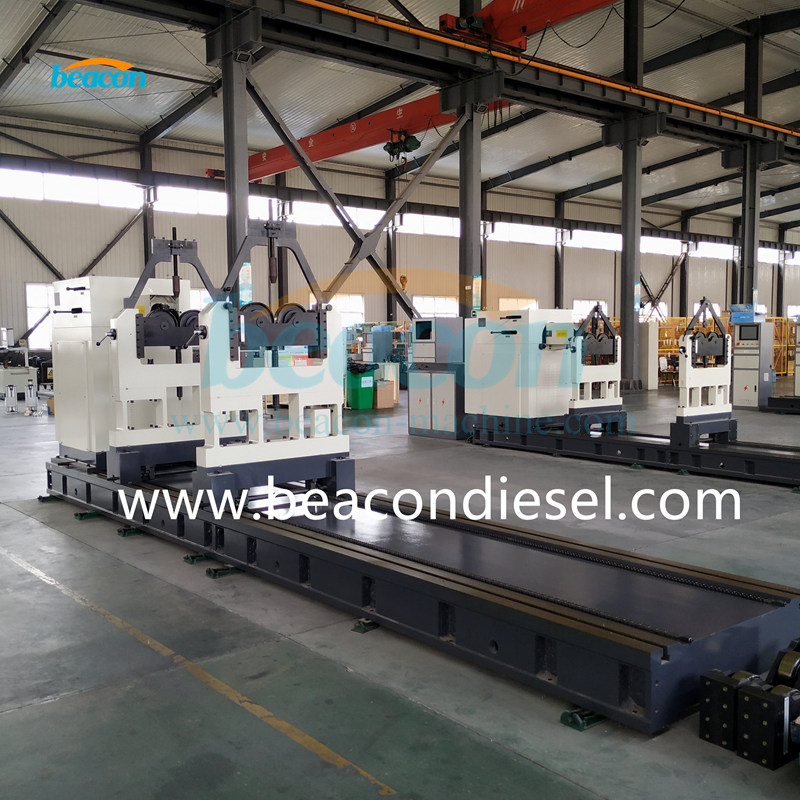

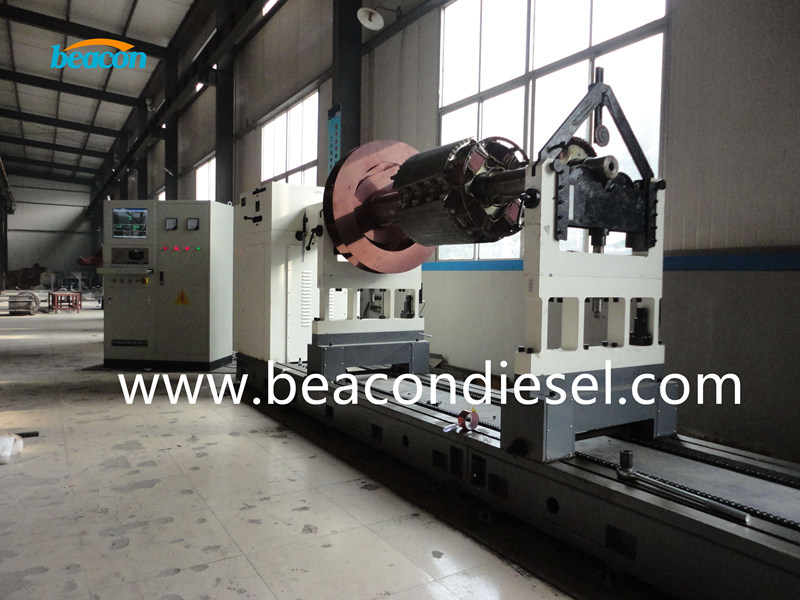

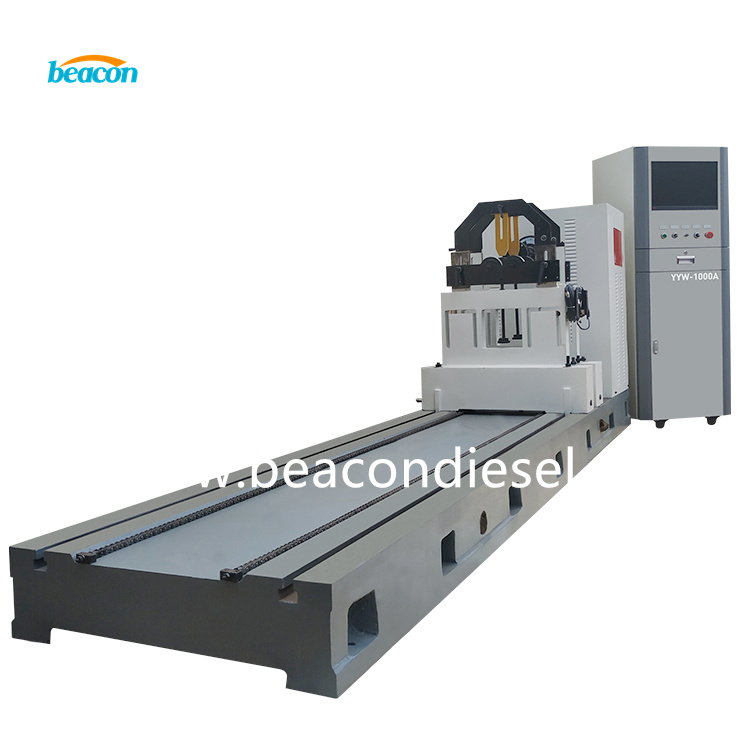

YYW-8000A universal joint drive dynamic balancing machine

※ industrial control computer 19-inch LCD color screen display

※ Widows in the English system double choose

※ equipped with GB-2000 Universal microcomputer balance measuring system

※ automatic programmable amplifier module

※ any artifacts scaling function, arbitrary angle compensation jig and workpiece information storage

※ qualified quantity display, measurement period adjustment

※ signal automatic zoom and manual zoom adjustment, signal self-test, automatic diagnosis

※ vector graphics, waveforms and unbalance, also shows

※ residual imbalance kg, g, mg and unbalanced torque g. Cm, g .mm choose to display

※ Optional features

1, the automatic tracking function equilibrium angle

2, the automatic parking function

3, the vector angle decomposition function

Tel:0086-18253885135

Email: info@beacon-machine.com

inquiry now

Introduction

There are 10 series and more than 40 models of balancing machine, including the belt drive balancing machine,universal joint drive balancing machine , vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine , soft bearing balancing machine, manual milling machine etc. Our products have been widely used in fields like fans, motors, air-conditioners, automobiles, internal combustion engines, aera-spaces, textile machinery, metallurgy and etc.

parameter

Model
YYW-3000A
YYW-5000A
YYW-10000A
YYW-20000A
YYW-30000A
YYW-50000A
Work piece quality range (kg)
100-1600
200-5000
300-10000
500-20000
800-30000
1200-50000
Max.diameter of workpiece(mm)
Φ2400
Φ2400
Φ2400
Φ2400
Φ3000
Φ3200
Two support distance (mm)
300-3000
340-2960
240-5100
300-5100
400-6500
500-6500
Journal (mm)
Φ40-180
Φ40-180
Φ50-200
Φ50-200
Φ50-200
Φ60-220
Min. achievableresidualun balance(g.mm/kg)
≤1
≤1
≤1
≤1
≤1
≤1
Unbvalance reduction ratio(%)
≥90
≥90
≥90
≥90
≥90
≥90
Drive power(kw)
11
18.5
45
55
75
90
