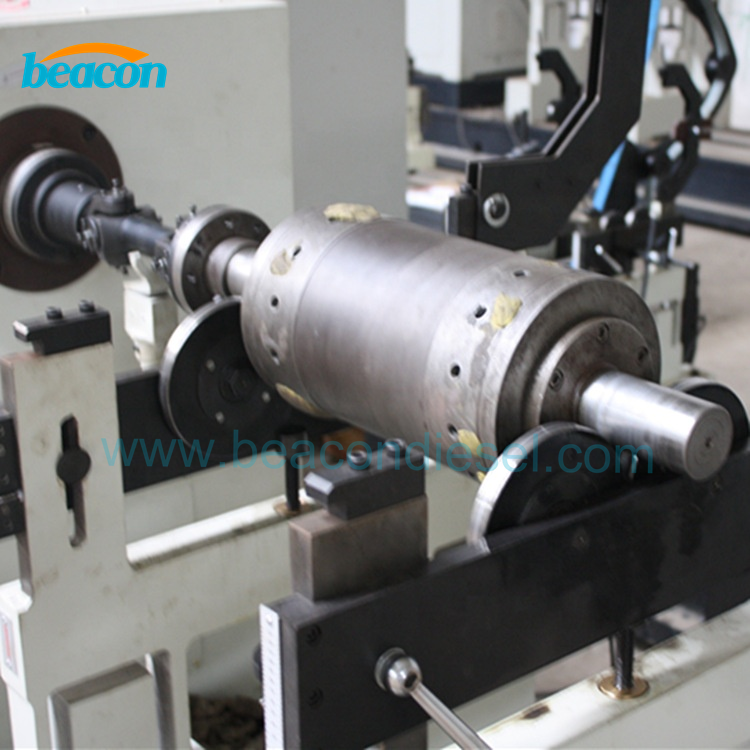

YYH-300A Hard Bearing Rotor Drive Shaft Balancing Machine Double Drive Balance Machine

The 19-inch LCD screen displays real-time display. The software adopts the GB-2000 general-purpose microcomputer balance measurement system. The measurement system runs on the Windows platform and has a fully automatic program-controlled amplification module, which can realize arbitrary input of real parameters. Arbitrary calibration, arbitrary angle fixture compensation, self-checking, qualified quantity prompt, remaining unbalance g (g) and unbalance torque g.cm (g*cm), g.mm (g*mm) multiple display methods, measurement results Automatic storage and other functions; all English menu structure, automatic prompting of the operation steps during calibration and compensation makes the operation simple and convenient to use. The universal type of equipment is suitable for dynamic balance measurement of all kinds of parts with regular or irregular, smooth or non-smooth surface. It is widely used in electric motors, blowers, diesel engines, agricultural machinery, textile machinery and other industries. It can be used in single-sided, double-sided and Perform balance measurement on multiple calibration surfaces, suitable for shafts, discs and rotors with center of gravity extension. It has the advantages of high efficiency, accurate precision, intuitive display and reliable quality.

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

The YYH series is a universal joint and ring belt dual-drive universal hard-supported horizontal double-sided dynamic balancing machine. The equipment model covers a measurement range from a few kilograms to more than 50 tons. It is supported by rollers. The products are strictly in accordance with GB/T 4 2 0 1- 2006 Organization of production. The equipment measurement is processed by the industrial control computer.

parameter

Model

YYH-300A

Maximum mass of workpiece kg

300

Minimum weight of workpiece kg

30

Maximum diameter of workpiece on bed rail surface mm

φ1200

Minimum distance between two supports mm

60

Maximum distance between two supports mm

1500

Minimum residual unbalance

≤0.5gmm/kg

Unbalance reduction rate%

≥95%

Motor Power

5.5KW
