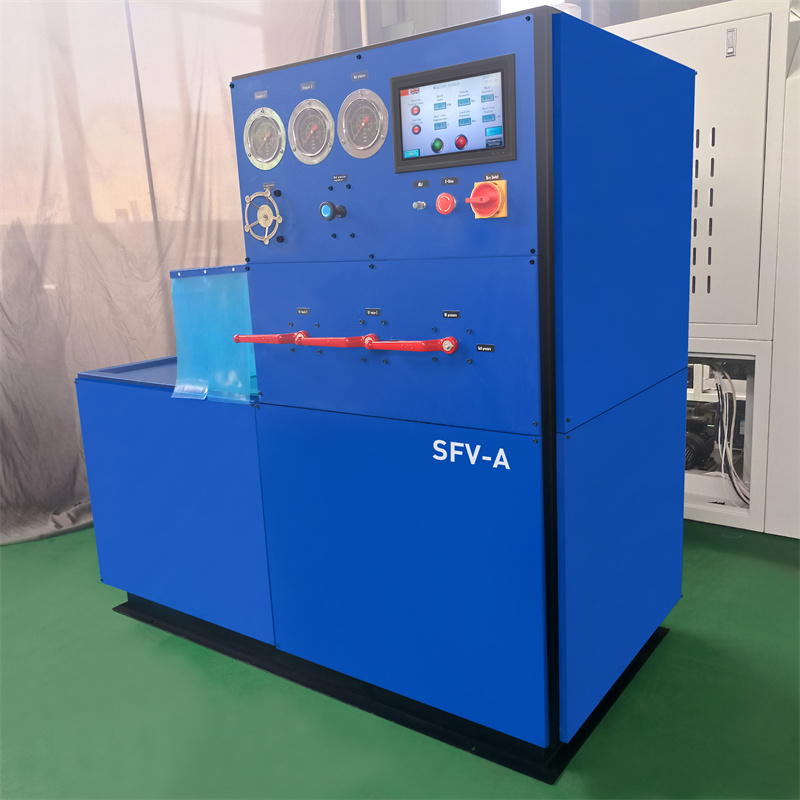

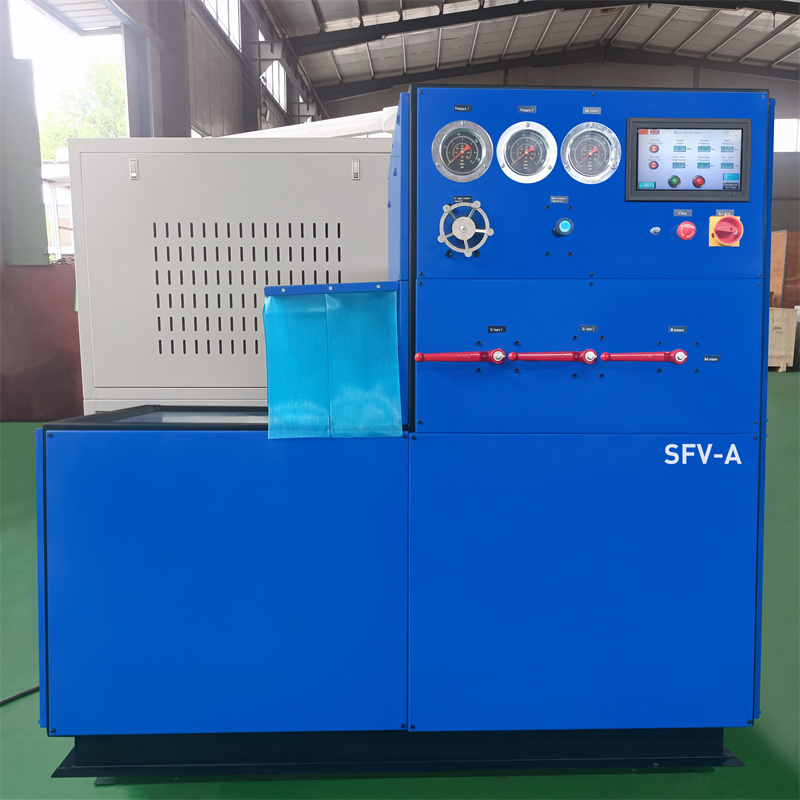

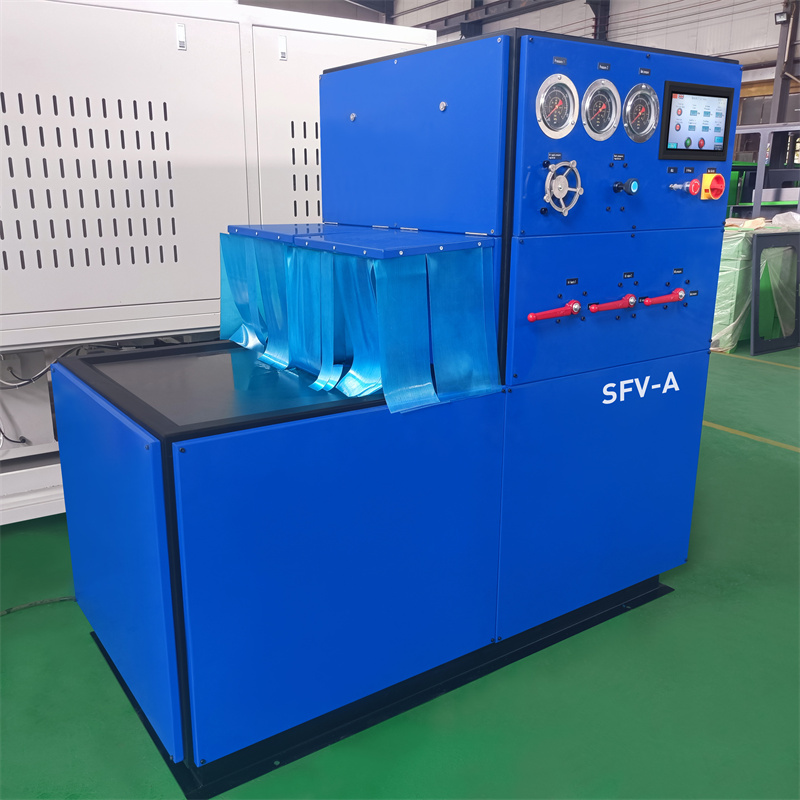

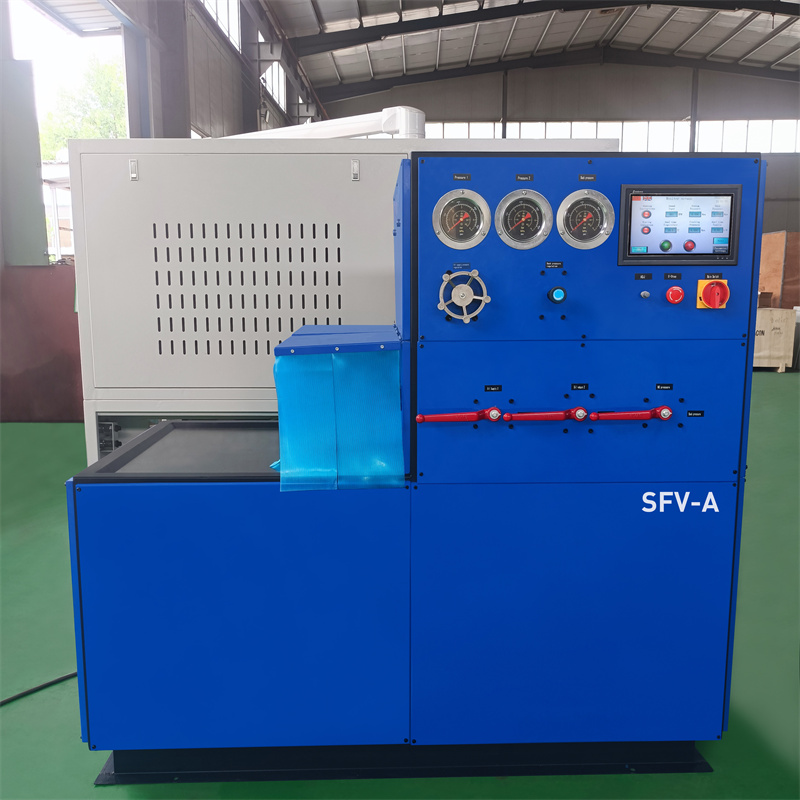

SFV-A Safety valve test bench

 Safety valve test bench

Notice before use

1 Power requirements:

1. The power supply capacity requirements are large enough, the interction of the TV power supply line is ≥4mm2, and the wiring length is <15m.

2. The test table must be reliable! The grounding line should be connected to the special grounding device of the building, and the ground wire should not be connected to the tap water pipe or gas pipe.

3. The power cord is introduced by the test platform base. The three -phase and five -line system is adopted, which is connected to the power switch input terminal. The line numbers are specified as A, B, C, and N. E to protect the ground line must be installed by professionals in accordance with national wiring rules.

4. The air switch with enough power supply must be equipped in the fixed line.

5. When the test table is not used, the power supply must be cut off.

2 Environmental requirements:

The environmental temperature of this test table is: 5 ℃ -30 ℃. Stay away from flammable, explosive items and fire sources.

3 Safety Instructions:

1. Please read this manual carefully before using this test table. If you have unknown or problems, please contact the seller or manufacturer.

2. Do not operate this test table for non -professional personnel.

3. The test table must be installed and fixed before the power can be connected.

4. Wet hands cannot operate the switch.

5. The part of the safety and measurement standard system involved in the test table cannot be transformed. Otherwise, the company is not responsible for the consequences caused by this.

4 Special statement:

Our factory reserves the right to further improve the appearance and internal structure of the product. If there is improvement, it will not be notified separately.

1 The characteristics and use of the test table

The safety valve test table is a testing equipment designed for customers. The test table is mainly used to detect parameters such as traffic valve overflow valves and other flow valves.
