Testing common rail injectors (over 7300 test plans)
Testing piezo injector
Bosch denso, siemens, delphi coding functions (more than 4800 coded data)
Testing all high pressure common rail pumps
Testing the Denso HP0 HP5 HP7 Pump
Test EUI EUP PT injector HPI X15 Q60
Test CAT HEUI C7 C9 3126B
System software supports 15 languages
Customized customer logo available
Tel:+86-13375386268
Email: beacon@beacon-machine.com

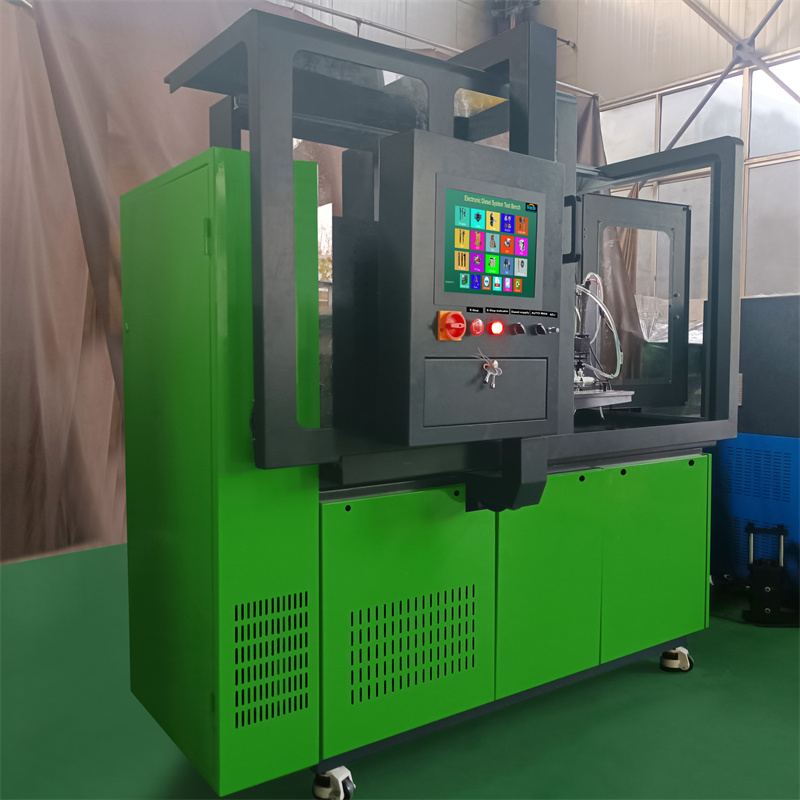

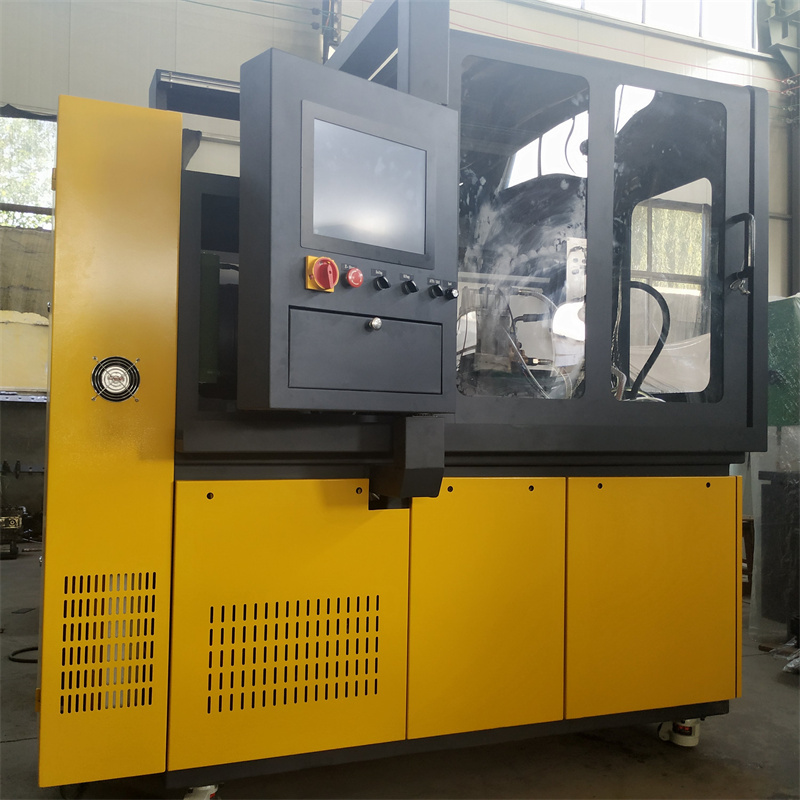

Multifunction Common Rail Injector pump Test Bench CR815S Diesel Test Bench For CRDI Diesel Pumps HEUI EUI EUP VP37 VP44
11KW 380V 3 phase
Common rail fuel injector
piezoelectric injector
common rail pump
Denso HPO pump
HEUI dual oil circuit C7 C9 3126B
EUI EUP with cambox
Delphi, Denso, Siemens, Delphi coding

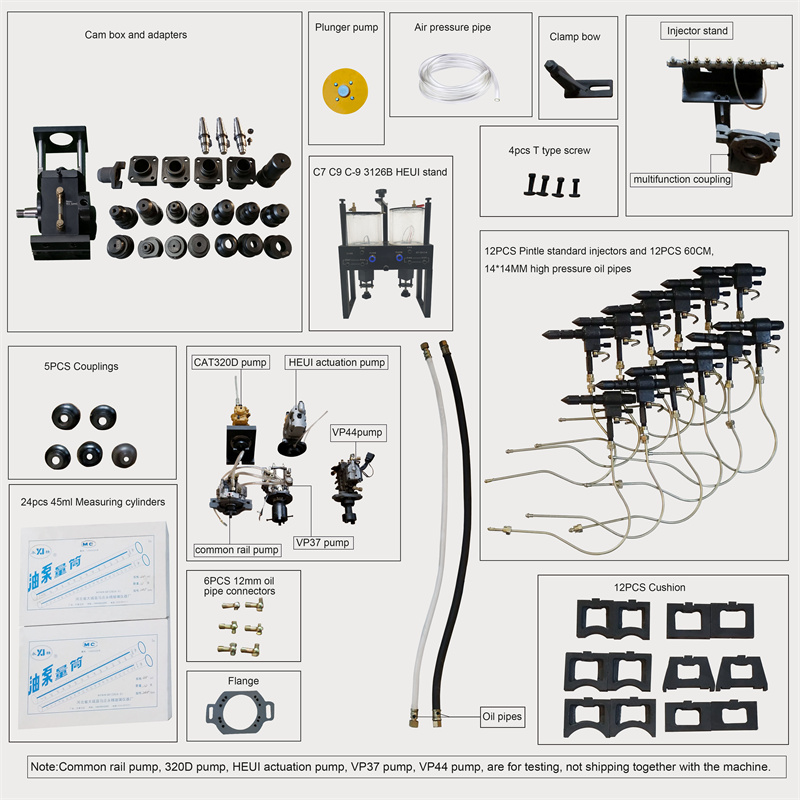

Optional Function
Test mechanical pump (with full set of Euro II accessories)
New 3126A 3412E NAVISTAR ISUZU G2.8 G2.9 six types
Old FORD6.0 3412 clamp
Old G2.9 3116 clamp
Euro 2 function
Carter 320D pump
Carter HEUI Actuator Pump
BIP function
advance angle
Delphi E3 double pulse control system
VP37 VP44 (with measuring cylinder and six injectors)
Model Number :CR815S
Power :11-22KW
Application :Common Rail Injector And Pump Test Bench Piezoelectric injector
Function 1 :Delphi, Denso, Bosch, Siemens coding
Function 2 :Test EUI EUP HEUI
Function 3 :C7 C93126B clamp new/old model, oil + diesel
Color :customize
Weight :850kg
Size :198*113*195CM
Power supply :380V/220V
