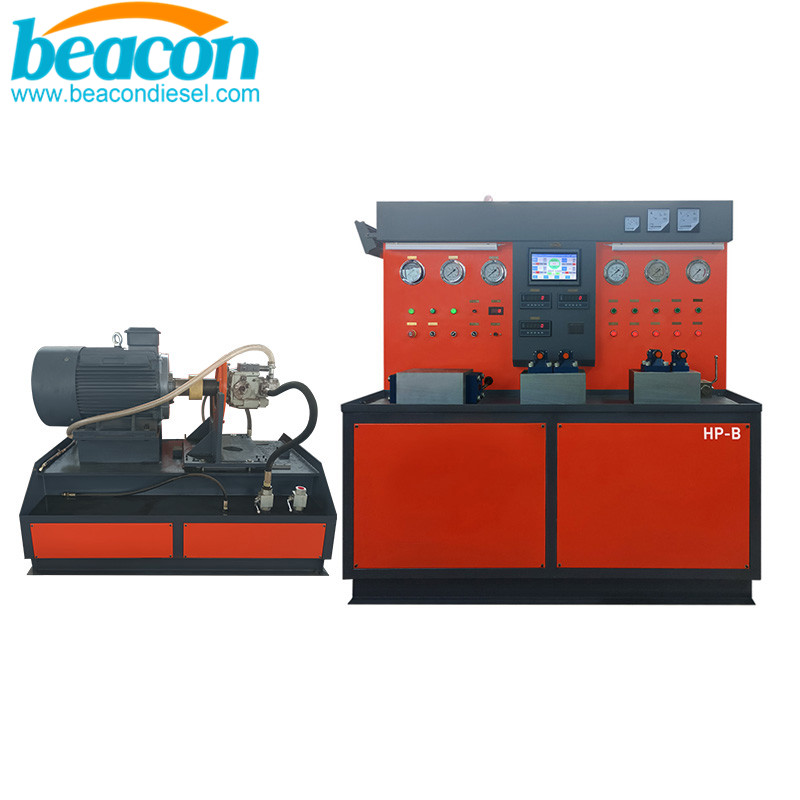

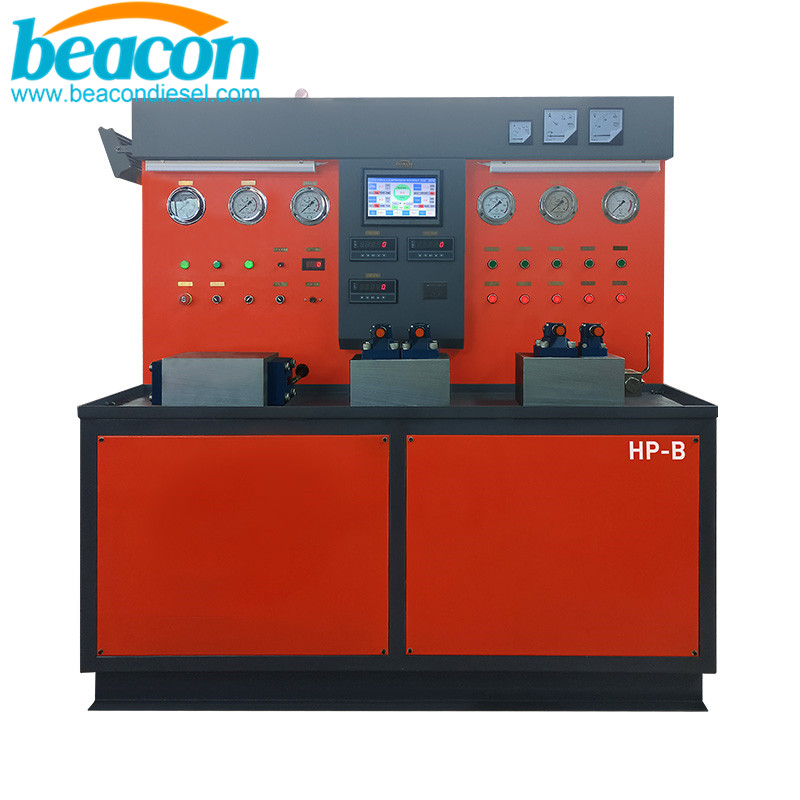

Hydraulic pump comprehensive hydraulic cylinder repair test bench HP-B

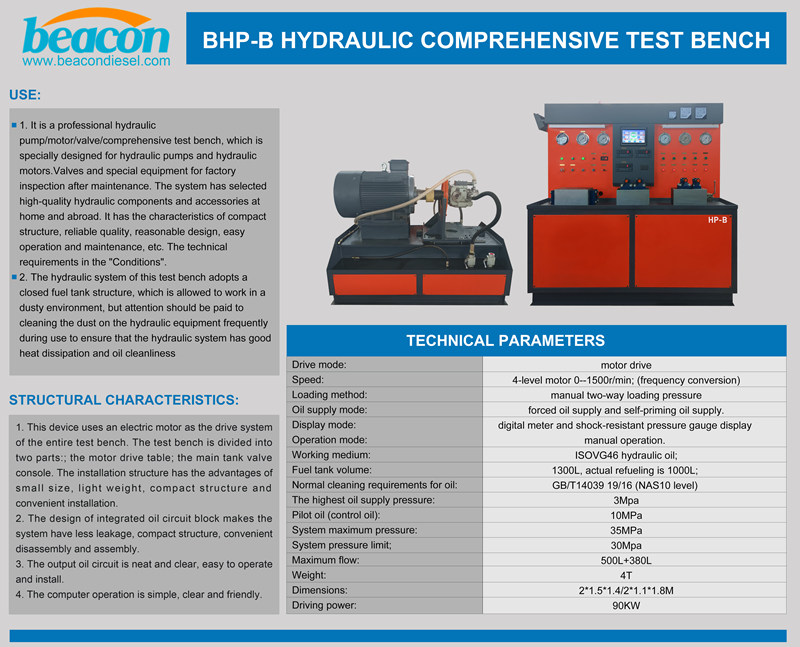

Main technical indicators:
Weight 4T
Overall dimension:
Test power table: 3200x1800x2200mm
Driving power: 90kw
The auxiliary motor is 22KW, and the low-pressure oil supply pump adopts the vane pump ybe200/8
The maximum oil supply pressure is 3Mpa
Pilot oil (control oil) 10MPa
Maximum system pressure: 35MPa
System pressure limit; 30Mpa
Maximum flow: 500l+380l
Introduction
Function configuration and parameters of test bench:
1 driving mode: motor drive
2 speed: Level 4 motor 0--1500r/min; (frequency conversion)
3 loading mode: manual two-way loading pressure
4 oil supply mode: forced oil supply and self-priming oil supply.
5 display mode: digital meter and shockproof pressure gauge display
6 operation mode: manual operation.
