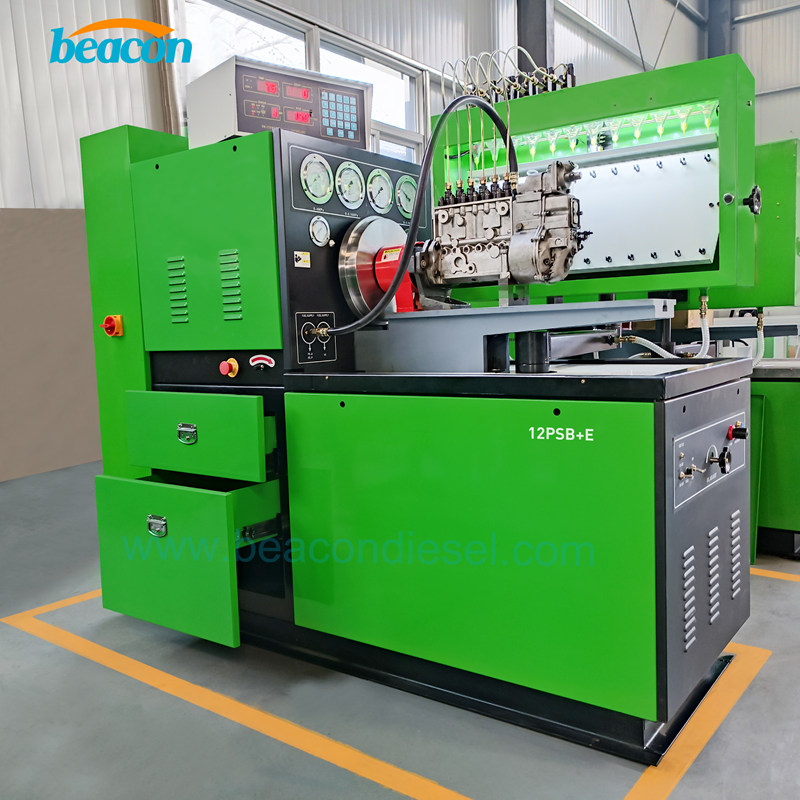

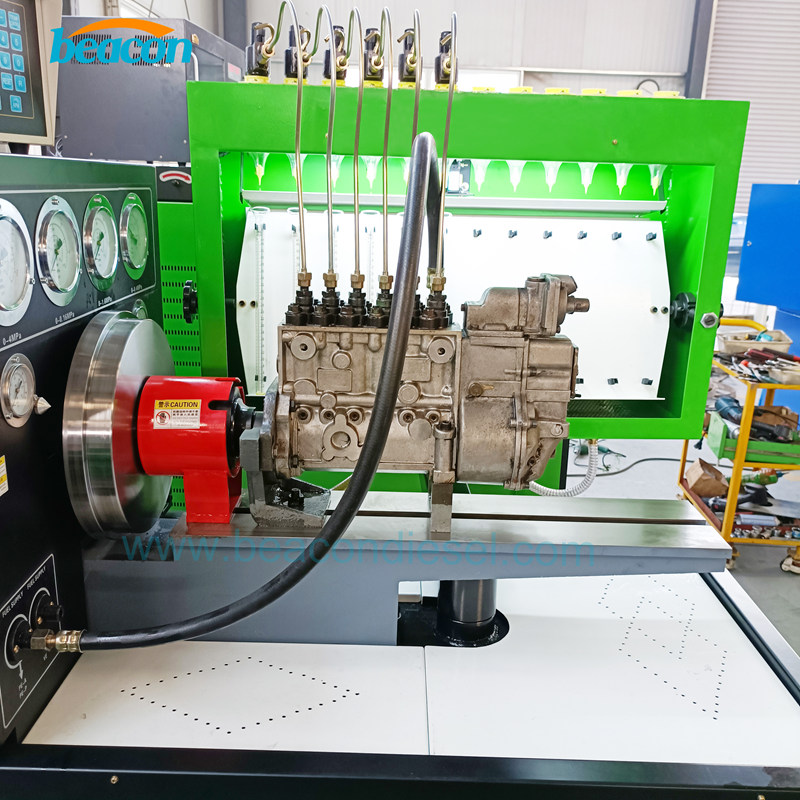

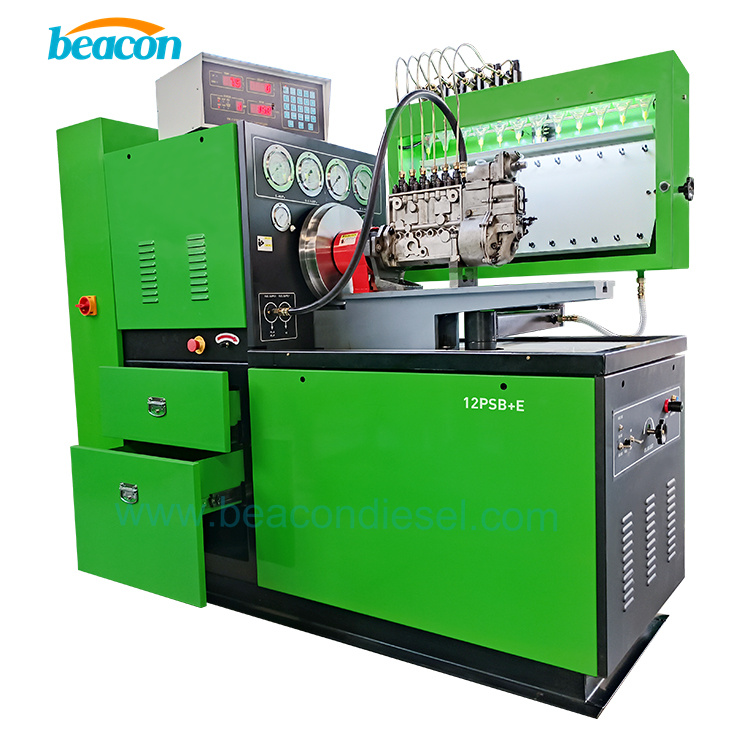

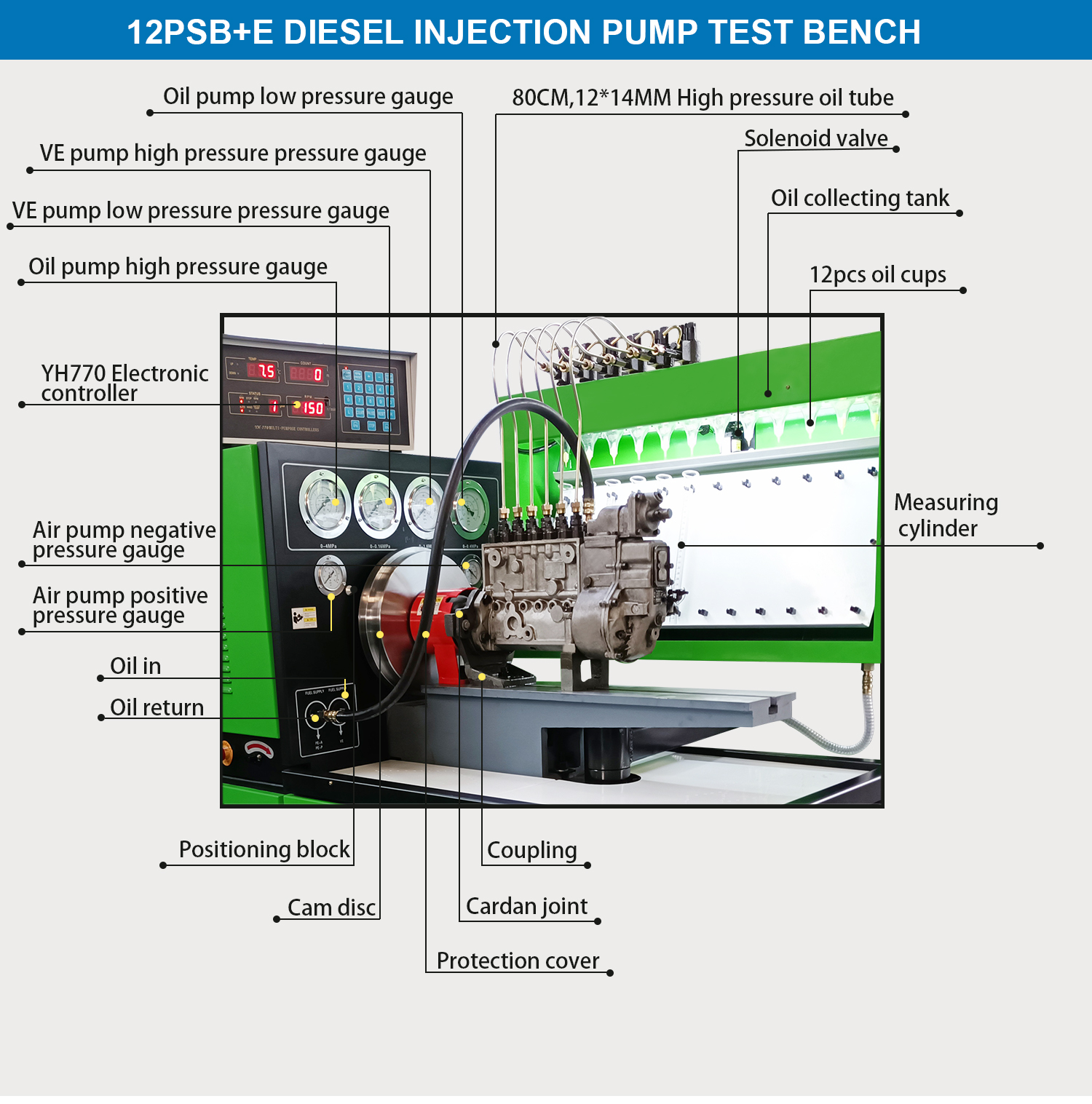

Diesel pump test bench Hot sale diesel fuel injection pump test bench 12PSB 12PSB-E

12PSB test bench can start and test both in-line androtaryfuelinjection pumps, for example, Ⅰ, Ⅱ, Ⅲ, A, B, P, Z, VE pumps andsoon, byemploying the suitable accessories.

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

Main function
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

parameter

1.test cylinders:12 2.RPM 0-4000 3.Ten speed preset 4.With 12v/24v DC power 5.digital display of oil count times 6.Digital display of temperature 7.with air supply 8.Measure advance angle 9. Measure oil return of VE pumps 10. Measure oil flux of VE pumps 11.Measure the internal pressure of VE pump.	5.5 7.5 11 15 18.5

1.test cylinders:12
2.RPM 0-4000
3.Ten speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.Digital display of temperature
7.with air supply
8.Measure advance angle
9. Measure oil return of VE pumps
10. Measure oil flux of VE pumps
11.Measure the internal pressure of VE pump.

5.5
7.5
11
15
18.5

TAGS:12PSB-E diesel fuel injector injection pump test bench injecting pump testing stand,
