HEUI test bench can test HEUI produced by most manufacturer. It completely simulates the injection principle of HEUI. Oil measurement, fuel temperature, lub. oil temperature,
injection time, injection pulse frenquency are all with digital display. Lub. oil pressure is displayed by shakeproof pressure gauge. Clear display, stable work,
high control accuracy. Drive signal can be adjusted, you will have a safe repairing maintenance.

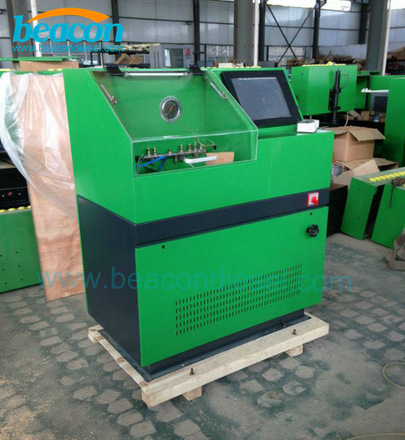

HEUI Injector Test Bench Description
Improve fuel economy & enhance performance
Measurement fuel delivery of four HEUI injectors
Sealing test for injectors upper seat of the solenoid control valve
It can test HEUI(CAT C7/C9,CAT 3408...)
Main parameter
Output power:3KW
High pressure adjust range:0-500bar set freely.
Low pressure adjust range:0-6bar
Electronic fuel delivery system,computer display
HEUI Injector Test Bench Application
Test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
· Navistar T444E, as Ford 7.3L PowerStroke Engines
· Navistar DT466E
· Navistar I530E
· Caterpillar 3126B
Adapting Kits for Testing One Ford 6.0L PowerStroke Engine HEUI Injector
· Adapting Kits for Testing One CAT C7/C9 HEUI Injector
· Adapting Kits for Testing One CAT 3408 HEUI Injector
