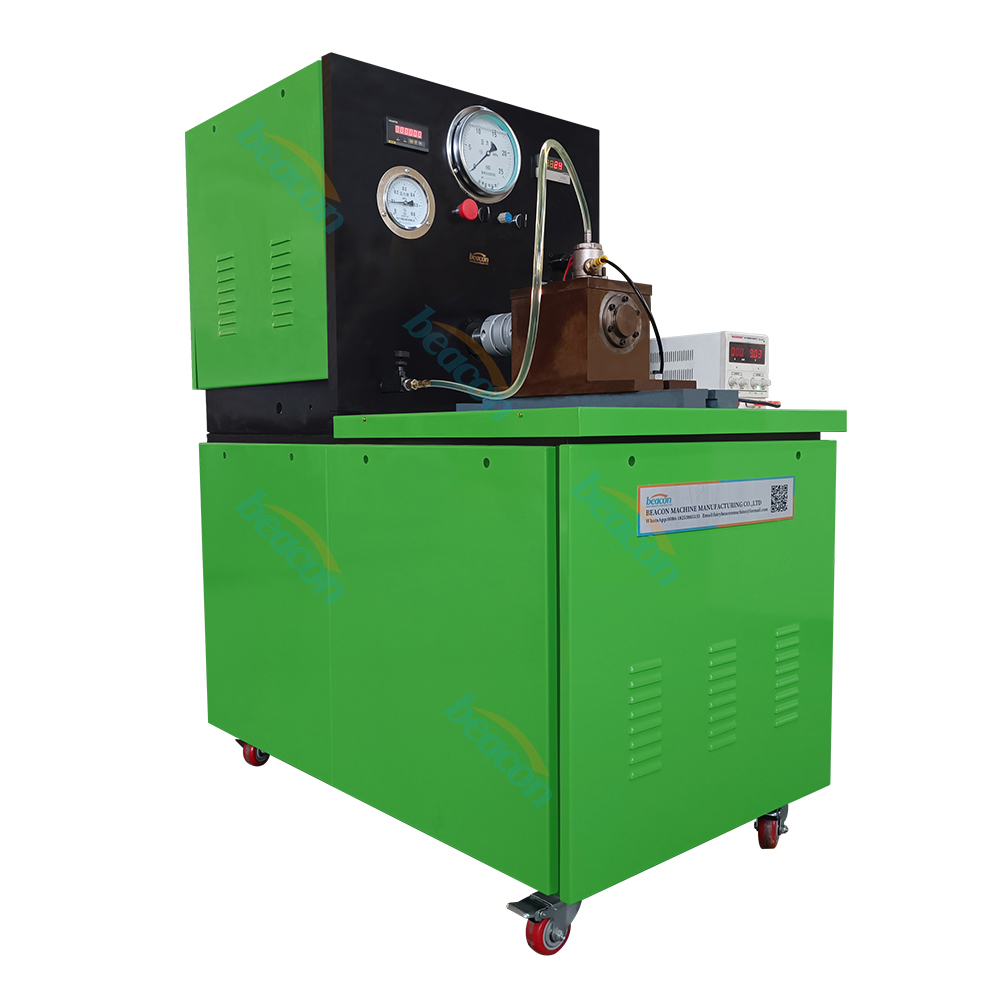

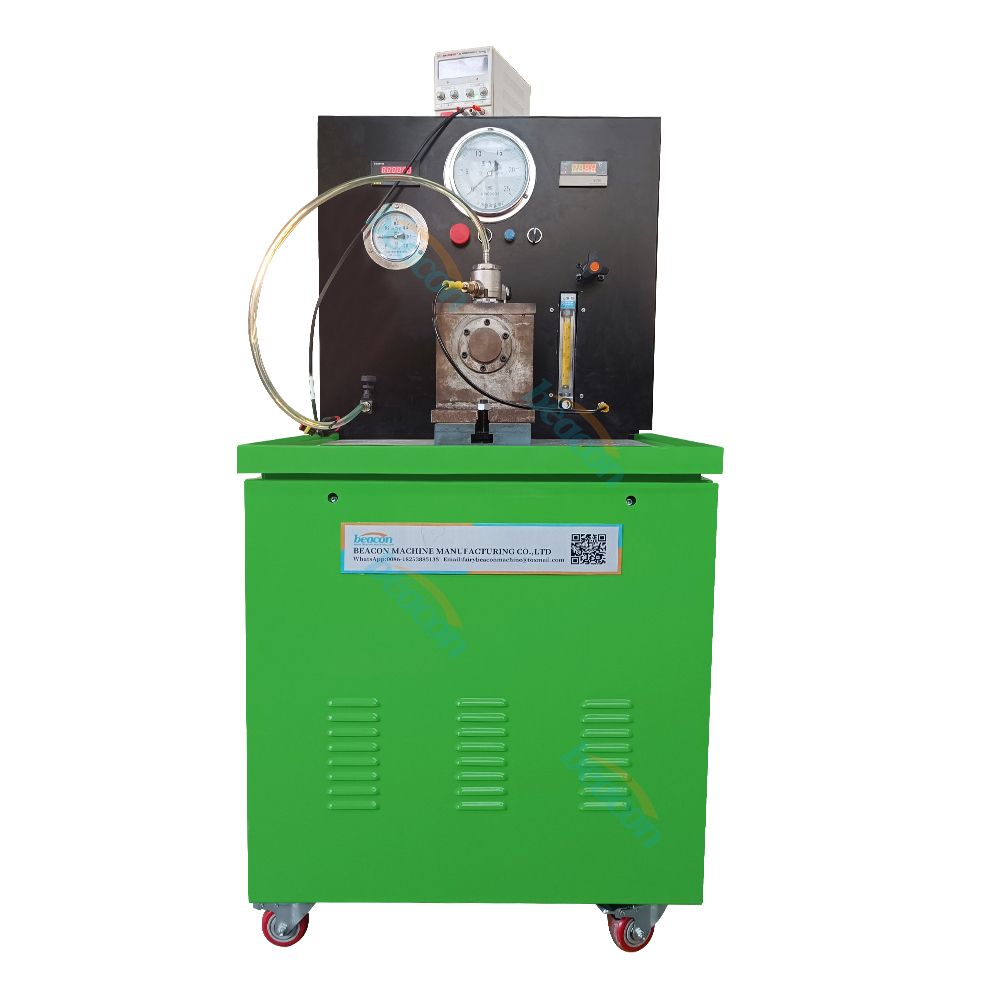

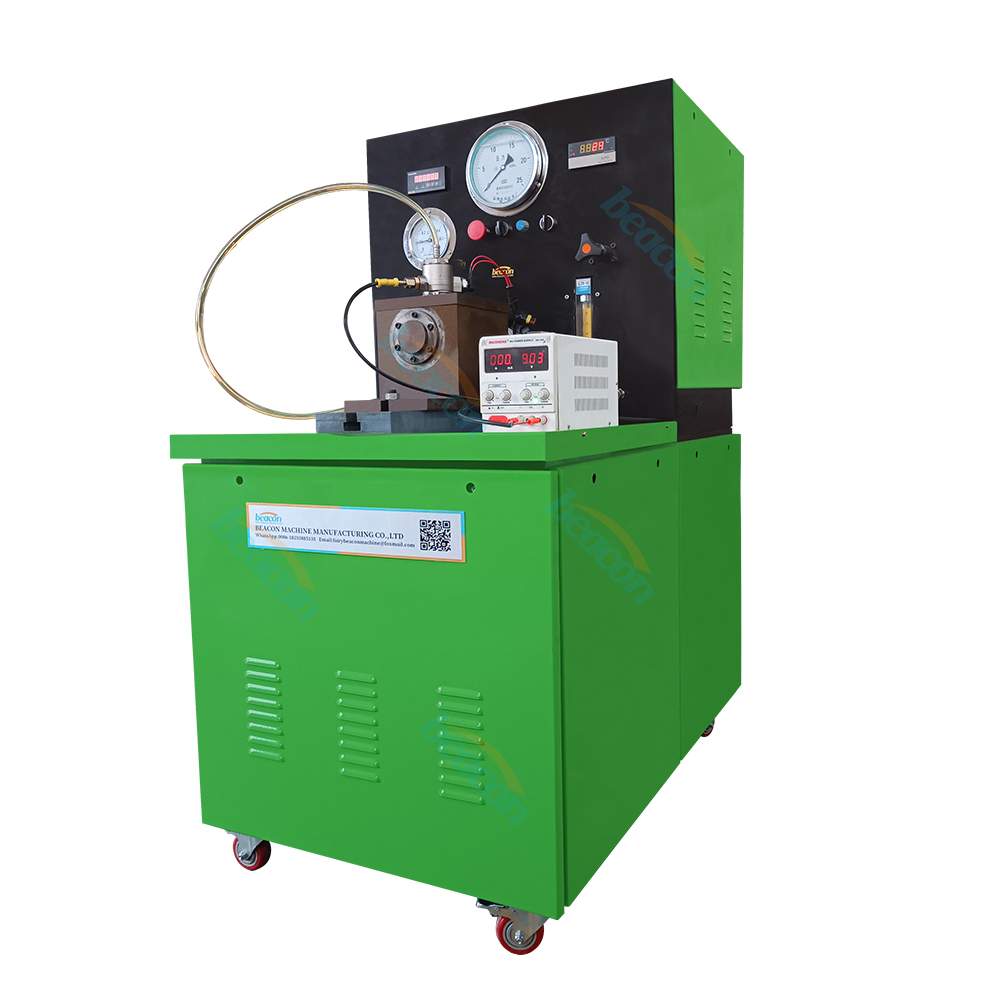

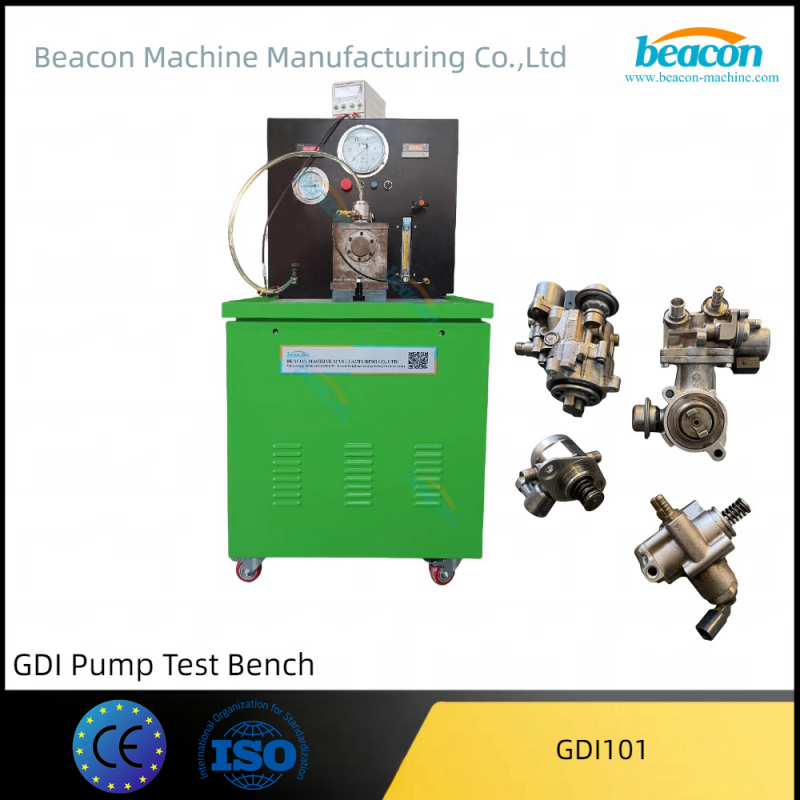

GDI101 High Pressure Gasoline Direct Injection Pump Test Machine GDI Fuel Injector Pump Test Bench

The high-pressure oil pump test bench is mainly used for the development, verification, and final production inspection of fuel high-pressure pumps (GDI pumps), and is also suitable for after-sales maintenance situations (there is also an optional economic test bench for maintenance purposes)
Its main technical indicators and functional characteristics are as follows:
1: Adjustable range of main drive speed: 0-4500 rpm, rated torque of 40N. m, peak torque of 70N. m
2: Test pressure range: 0-400bar, electrically adjustable, fast stabilization
3: Flow testing range, 50-4000mL/min
4: DIV valve drive: maximum current of 10A, adjustable supply voltage of 0-16VDC
5: Dual station inline layout (customizable for single station): can test one product simultaneously, with a testing time of 50 seconds;
Test items: Boosting capacity, holding capacity, PRV opening pressure
7: Applicable product types: Compatible with normally closed and normally open fuel pumps from brands such as Bosch, Hitachi, Delphi, etc
8: Three stage filtration of testing fluid: supply filtration, high-pressure filtration, and reflux filtration, all of which are replaceable filter elements, extending the service life of testing fluid, reducing equipment failures, and saving equipment maintenance costs
