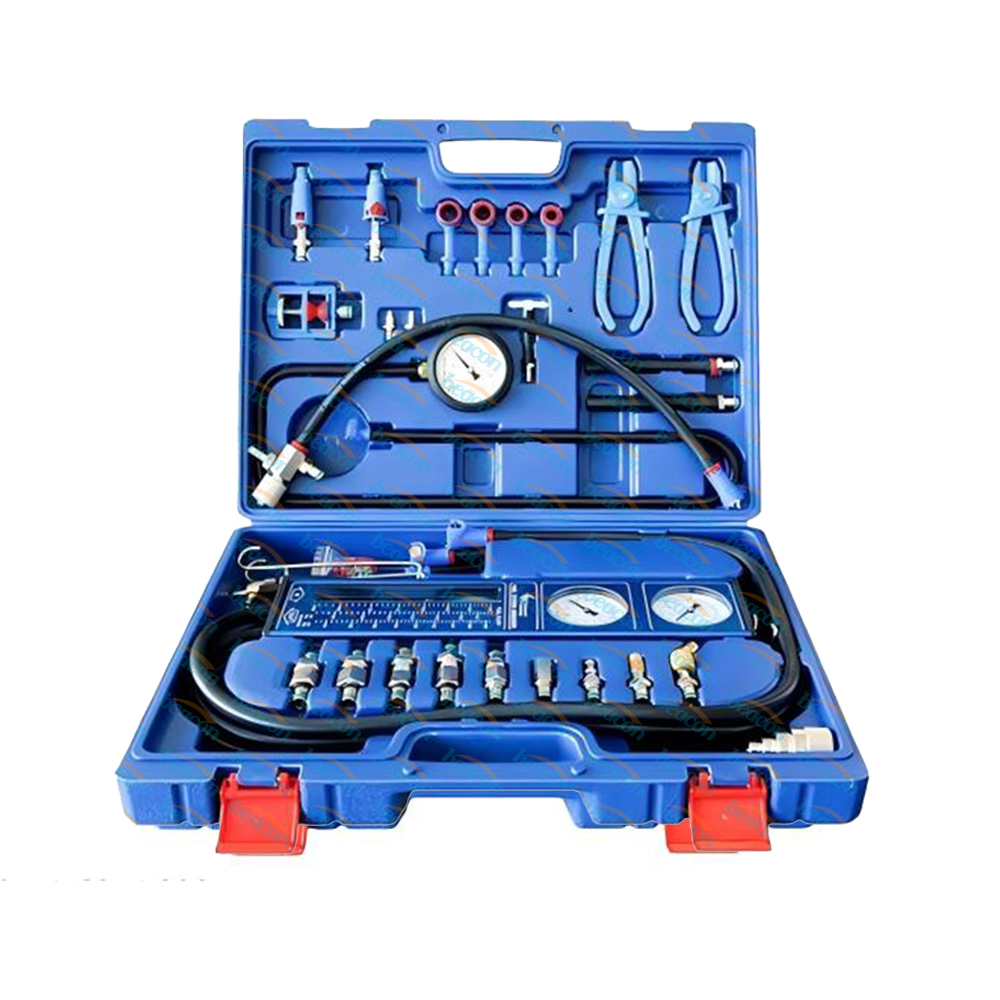

Fuel System Comprehensive Tester Pressure Flow Meter Vehicle Tool Kit Auto Repair Tool

G7-19 Fuel Pressure Flow Gauge

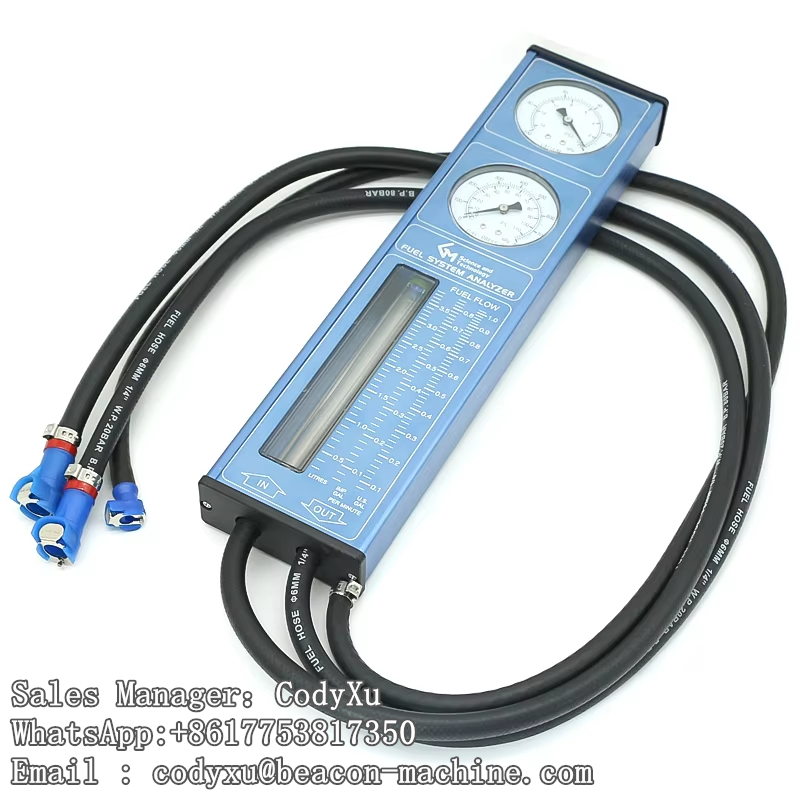

Professional comprehensive fuel system tester, which can test the fuel pressure, flow rate, intake system vacuum, exhaust system back pressure under the engine working condition, so as to determine the failure of fuel injector, regulator, filter element, oil pump, screen and so on. Equipped with vacuum and back pressure meter, it can determine the failure of engine intake and exhaust system. Such as valve sealing, ternary carburetor and other problems.
●A comprehensive test of four functions, simultaneously detecting fuel pressure, fuel flow, engine intake manifold vacuum, engine exhaust back pressure quickly identify engine faults.
● Equipped with a speed simulation valve, it can simulate the fuel supply state of different vehicle speeds in the workshop, no need for road test, and engine fuel system faults can be seen at a glance.
● 1.0 grade precision fuel pressure gauge and flow meter, ensuring the reliability of the test results.
● Unique quick-change fittings for the whole vehicle system, which not only have excellent sealing performance, but also are easy to use and long-lasting.

Tel:0086-18253885135

Email: info@beacon-machine.com

inquiry now

Introduction

parameter

1.Fuel pressure test
2.Fuel flow test
3.Engine intake manifold vacuum test
4.Backpressure in exhaust manifold test

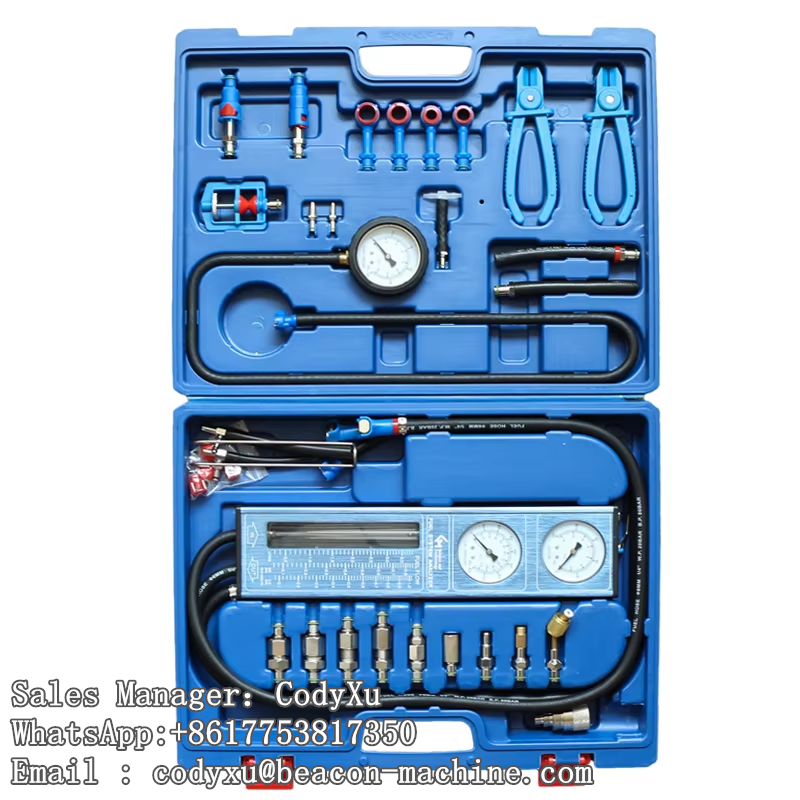

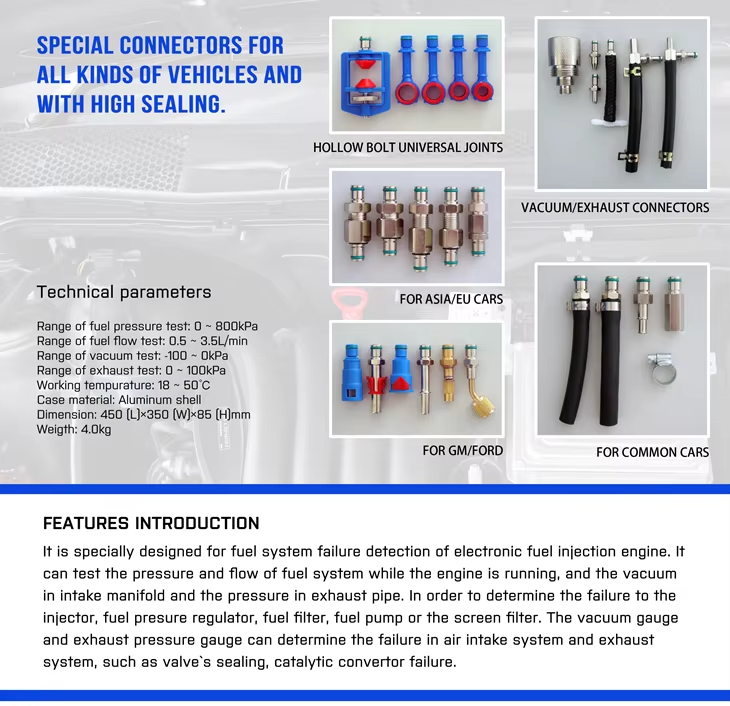

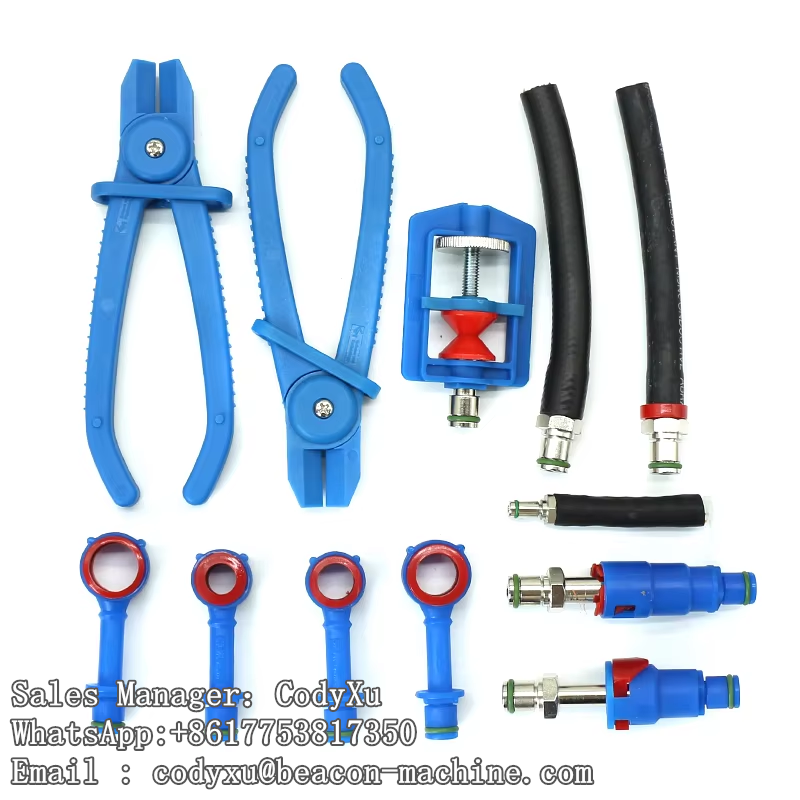

5.Various connectors to fit various vehicle models
Specifications:
1.Range of fuel pressure:0~800Kpa
2.Range of fuel flow:0.5~3L/Min
3.Range of engine vacuum:-100~0Kpa
4.Range of backpressure:0~60Kpa
5.Weight:4Kg
6.Dimensions:400mmx315mmx95mm

TAGS:Fuel Pressure Flow Meter,Vehicle Tool Kit,Automotive Engine Fuel System Analyzer,Flow Meter,Pressure With Flow Meter,Special Car Engine Fuel System Tester,Fuel Pressure Flow Meter,Engine Fuel System Tester,
