| EUP/EUI Test Bench Technical Parameters | |
| 1.Motor power | 7.5KW, 11KW, 15KW, 18.5KW |
| 2. Electronic power | 3 PHASE 380V or 3 PHASE 220V |
| 3. Motor speed | 0-4000RPM |
| 4. Presure adjustment | 0-2000bar |
| 5. Flow testing range | 0-600ml/1000times |
| 6.Flow measurement accuracy | 0.1ml |
| 7. Temperature range | 40+-2 |
| 8. Cooling system | fan or forced cooling |
Tel:+86-13375386268
Email: beacon@beacon-machine.com

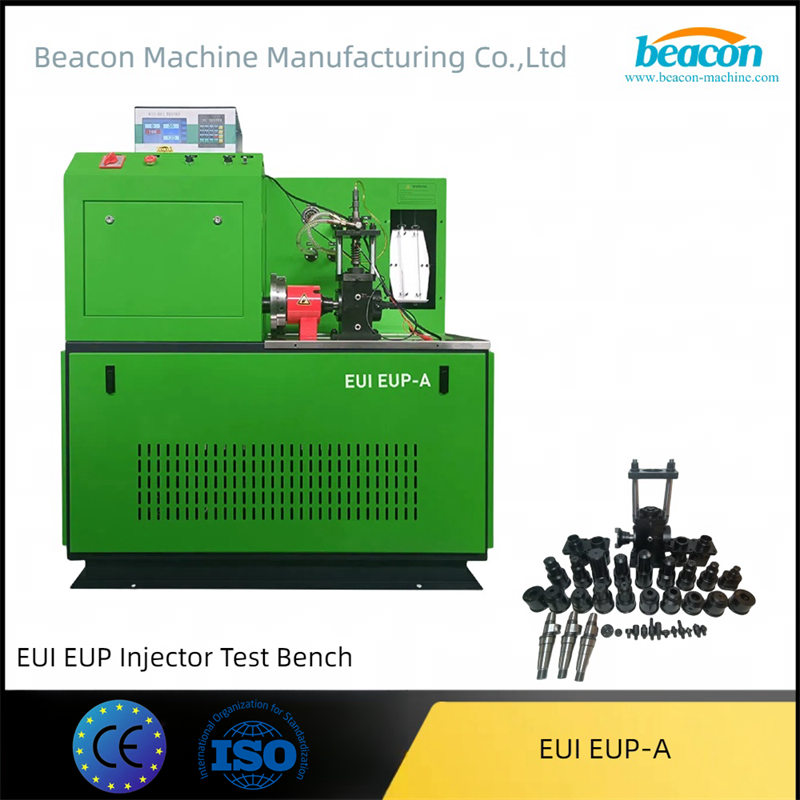

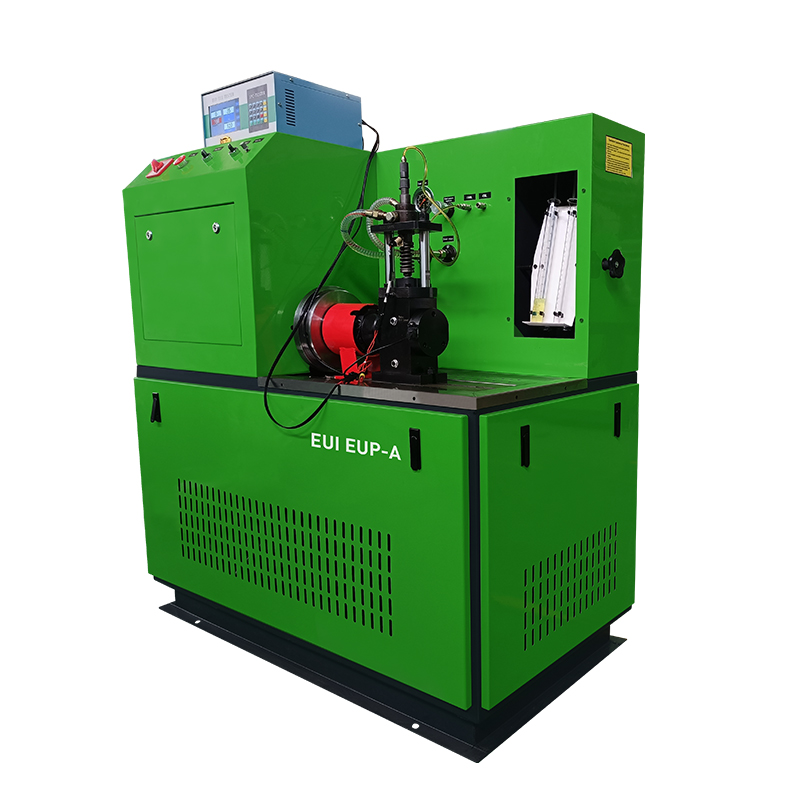

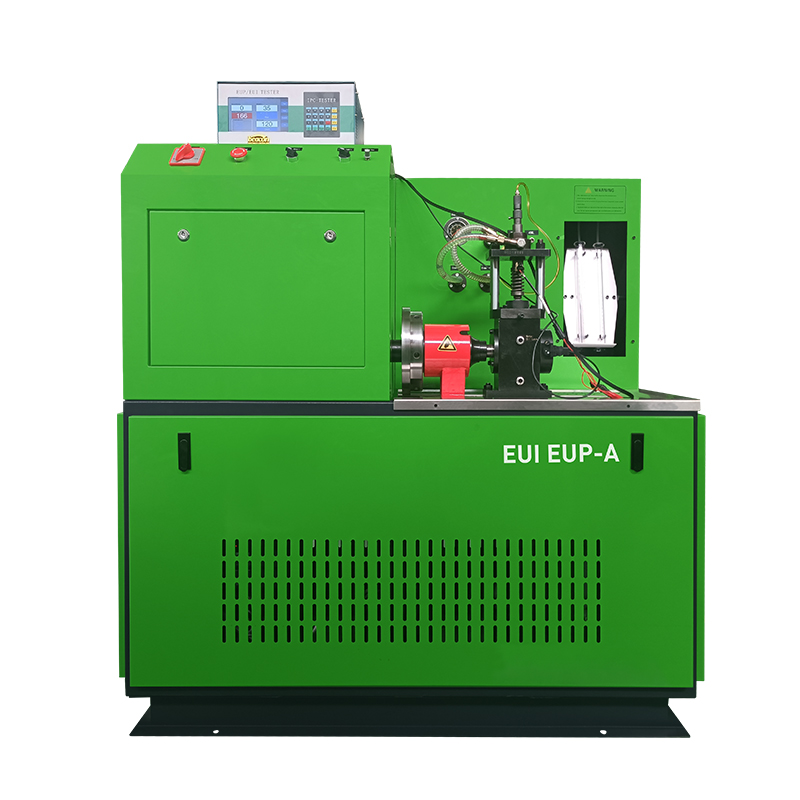

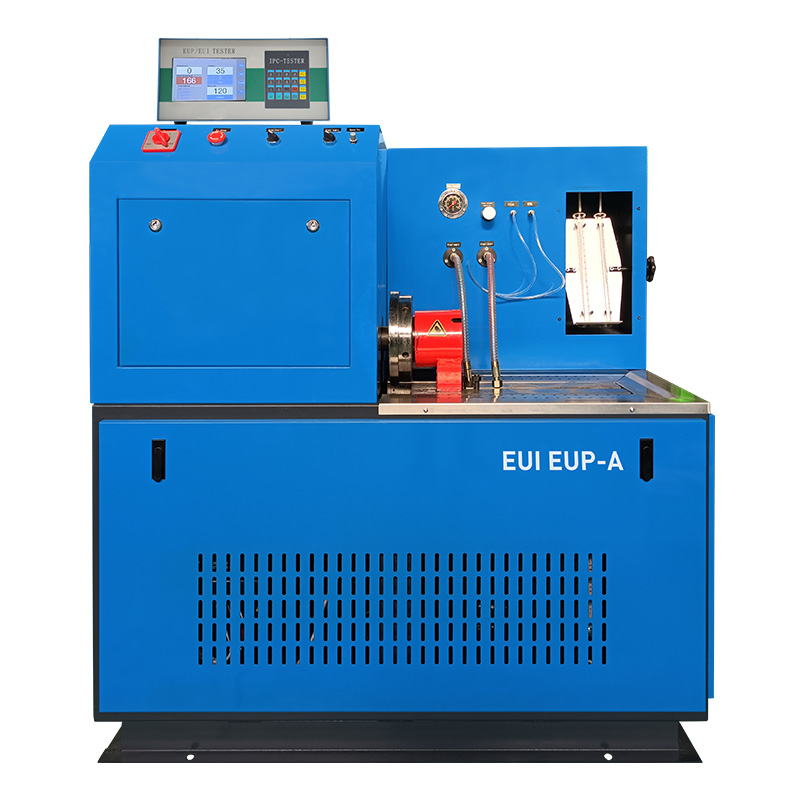

Mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of re-productivity of the measured value.
professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
| EUS2000 EUP/EUI Test Bench Technical Parameters | |
| 1.Motor power | 7.5KW, 11KW, 15KW, 18.5KW |
| 2. Electronic power | 3 PHASE 380V or 3 PHASE 220V |
| 3. Motor speed | 0-4000RPM |
| 4. Presure adjustment | 0-2000bar |
| 5. Flow testing range | 0-600ml/1000times |
| 6.Flow measurement accuracy | 0.1ml |
| 7. Temperature range | 40+-2 |
| 8. Cooling system | fan or forced cooling |
.
EUP/EUI Test Bench Function
1.Test piezo injector function and Electromagnetic injectors
2.Test HP0 pump function.
3. DRV testing
4.Checking the oil pump flow.
Optional Function
1).Forced cooling
2) HEUI TESTING
3)EUI EUP TESTING
