Pressure controlled automatically,
Display the frequency and pluse at the screen.
Test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
Tel:+86-13375386268
Email: beacon@beacon-machine.com

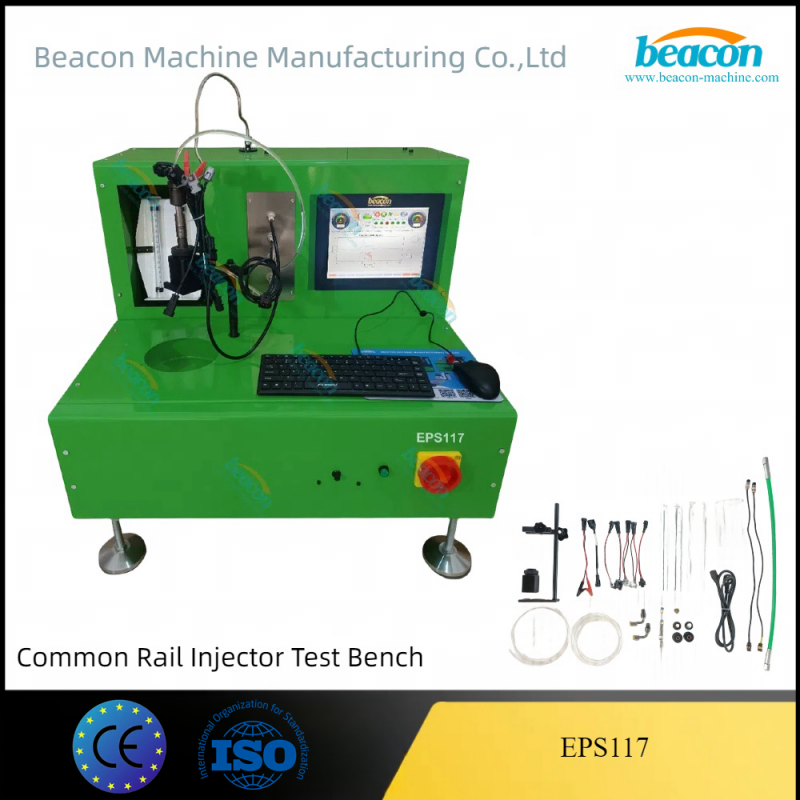

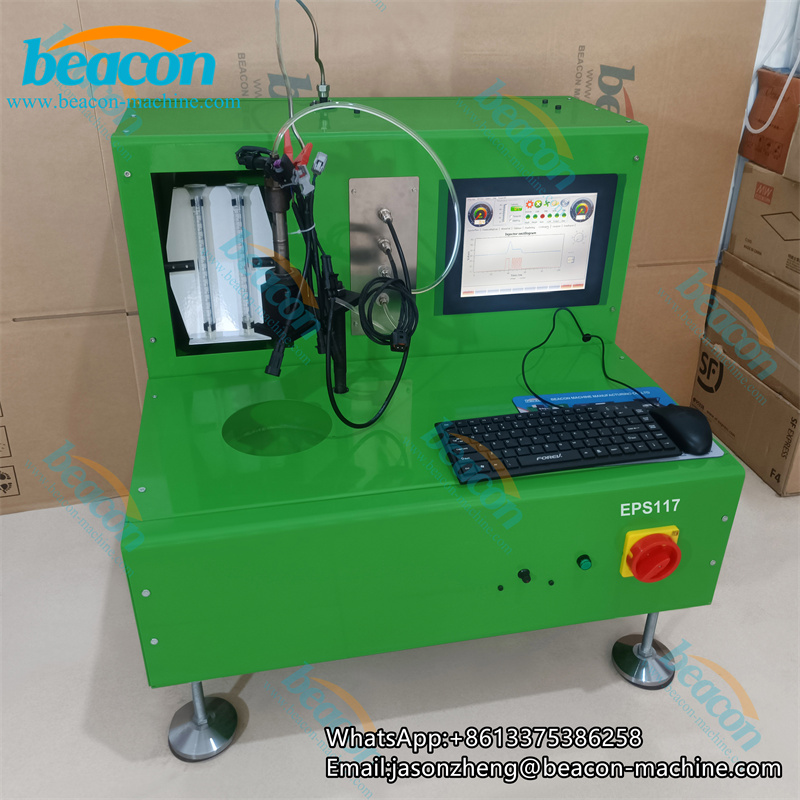

EPS117 injector tester Main Features
(1)Integrated automatic operation, including test bench speed, oil rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2)Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, north oil, heavy oil and other manufacturers of solenoid valve type or piezoelectric crystal oil injectors
(3)The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(4)The database is fully open for operation, and the part number can be added.
(5)Automatic network upgrade, and keep the test data and functions up to date;
(6)Test oil injection response time; (optional)
(7)The fuel injector compensation code can be generated(optional);
(8)The fuel injector resistance injector can be tested(optional)
(9) Dynamic travel to test (optional)
EPS117 injector tester machine Major Dispositions
1, industrial computer real-time control, windows system

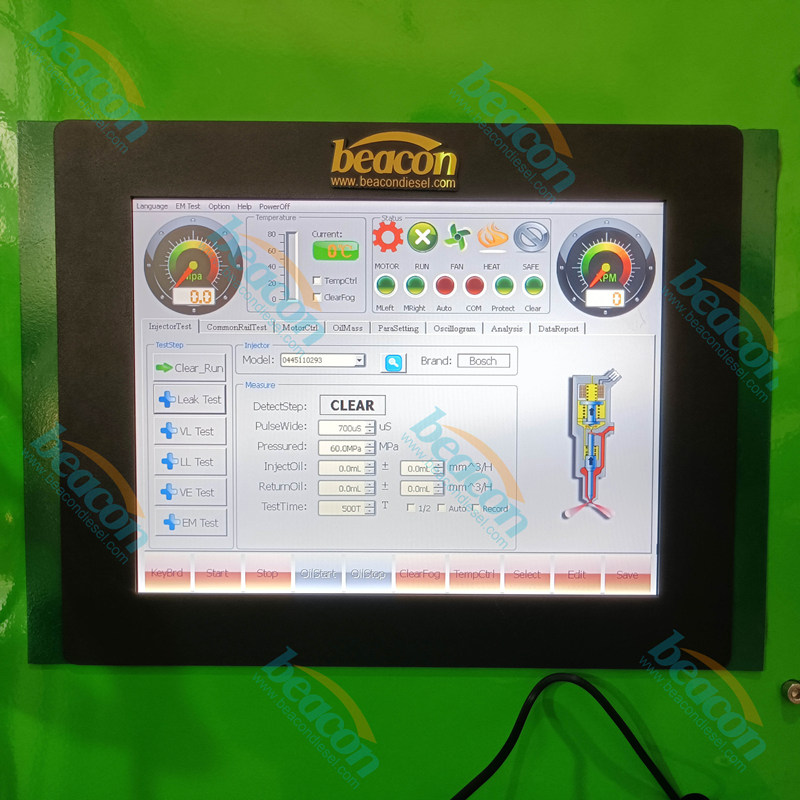

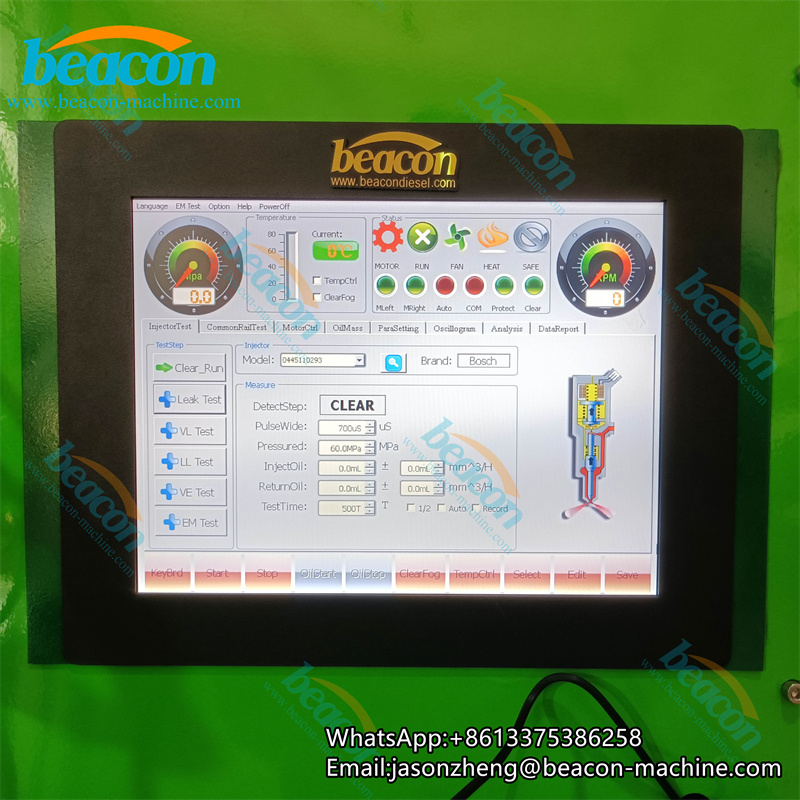

2, LCD screen display
3.The original BOSCH high-pressure common rail oil pump is used to generate 0~180MPa rail pressure
4, real-time measurement of pressure, speed, temperature, oil volume, etc
5, with over voltage, under voltage, short circuit and other protection functions
6.The pulse width and frequency can be adjustable, and the injection times can be set freely
7, can test the solenoid valve type fuel injector and piezoelectric type fuel injector
8, thousands of fuel injector data, can be query, input, storage
9.Accurate measurement, easy operation, low noise and energy saving
10, organic glass protective door, safe, easy to observe
Detailed technical specifications of the equipment
Use of test bench:
(1)Test the sealing performance of the common rail fuel injector testing
(2)Test the full load performance of the common rail injector
(3)Test the medium-load performance of the common rail injector
(4)Test the idle performance of the common rail injector
(5)Test the pre-injection performance of the common rail fuel injector
1. output power:2KW
2. power voltage:220V 1phase
3. motor speed: 0-3000RPM
4. Oil pressure:0-2000bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml.
