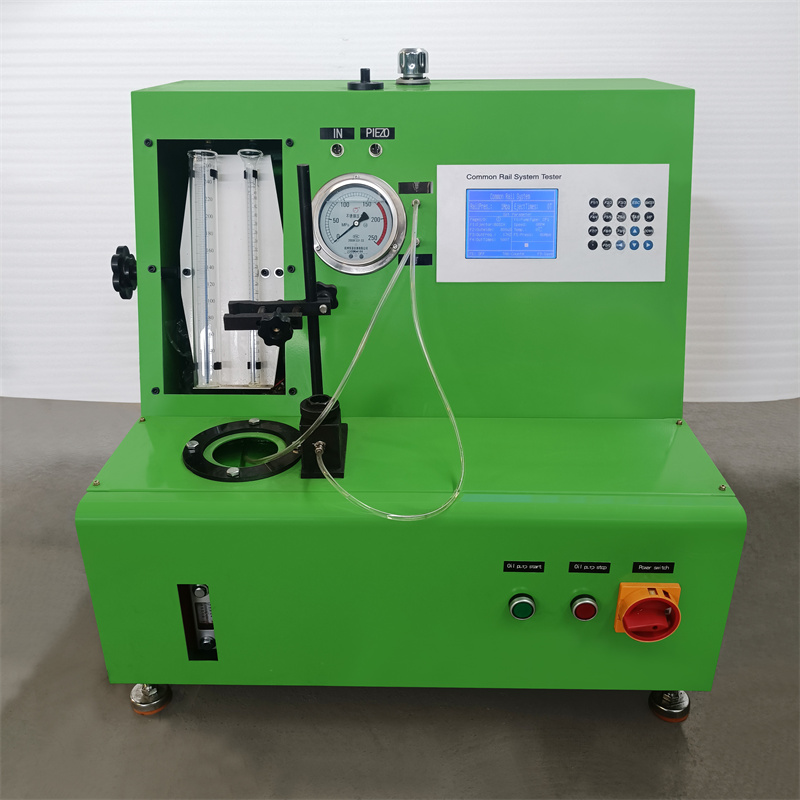

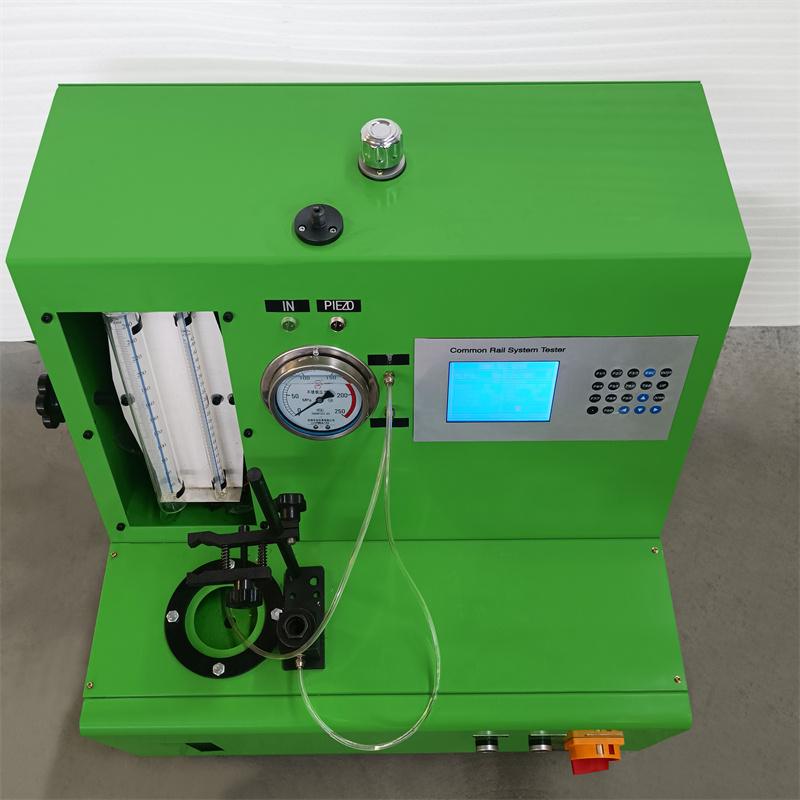

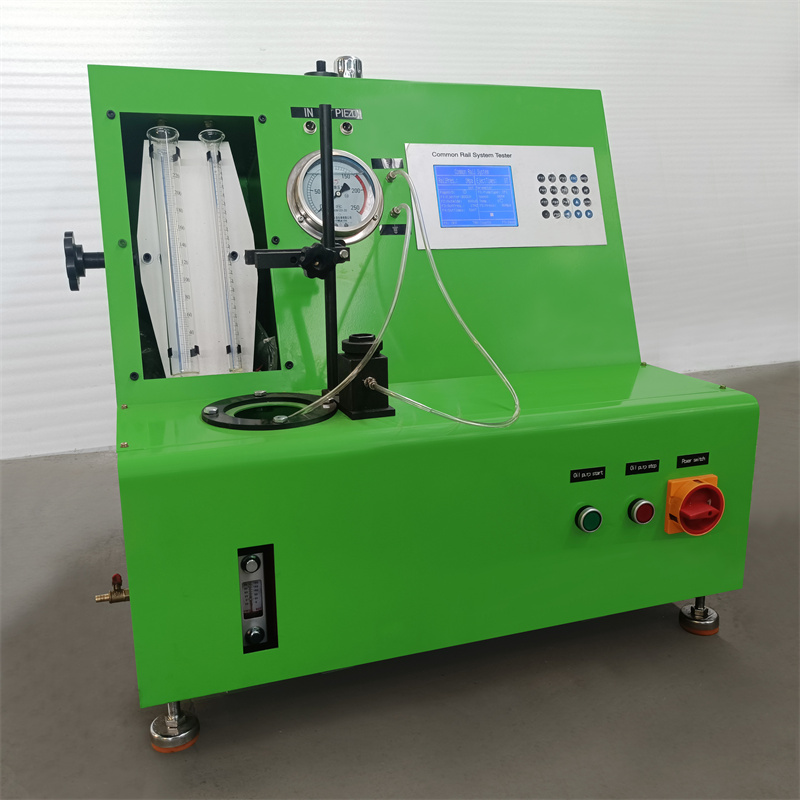

EPS100S common rail injector test bench calibration machine with pressure gage and liquid level gauge eps100 test bank
Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
Function introduction
1, it can be used to test Bosch, Delphi and Denso injector.
2, check the injector starting pressure
3, check the injector spray quality
4, check the seal of injector.
5, check injection quantity and back oil quantity.
6, check the injector oil flow
7, check the injector pre injection and main injection
8. piezo injector testing(optional)
Technical parameters
1.High pressure 0-1800bar
2. Check the injector starting pressure
3.Assessment of the injector spray fog quality
4. Inspeciton of the injector spray oil range
5.Check of the injector seal and angel
6.Check of the injector oil flow
7.The machine has fog dissipation convulsion device to improve the work condition.
8.It has the two garde filter to ensure the cleanliness of test.
9.The parameter of common rail injector ( fuel spray counts, frquency, pulse width, pressure etc..)can be set willfully.
10. it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
