This machine has the following characteristic small voume, flexible operation, convenienuse, high machining precision, et
Tel:+86-13375386268
Email: beacon@beacon-machine.com

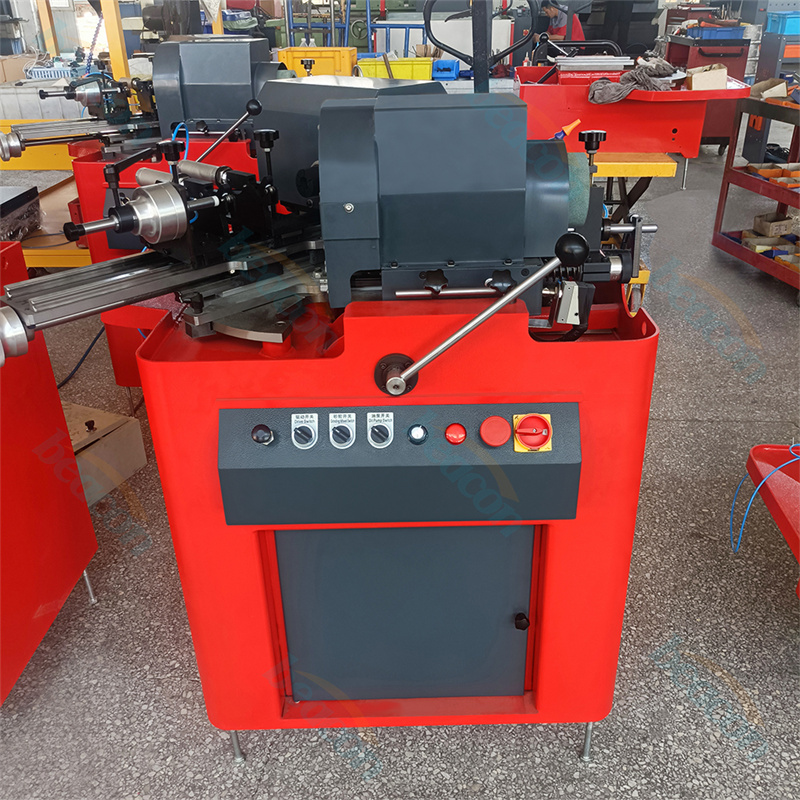

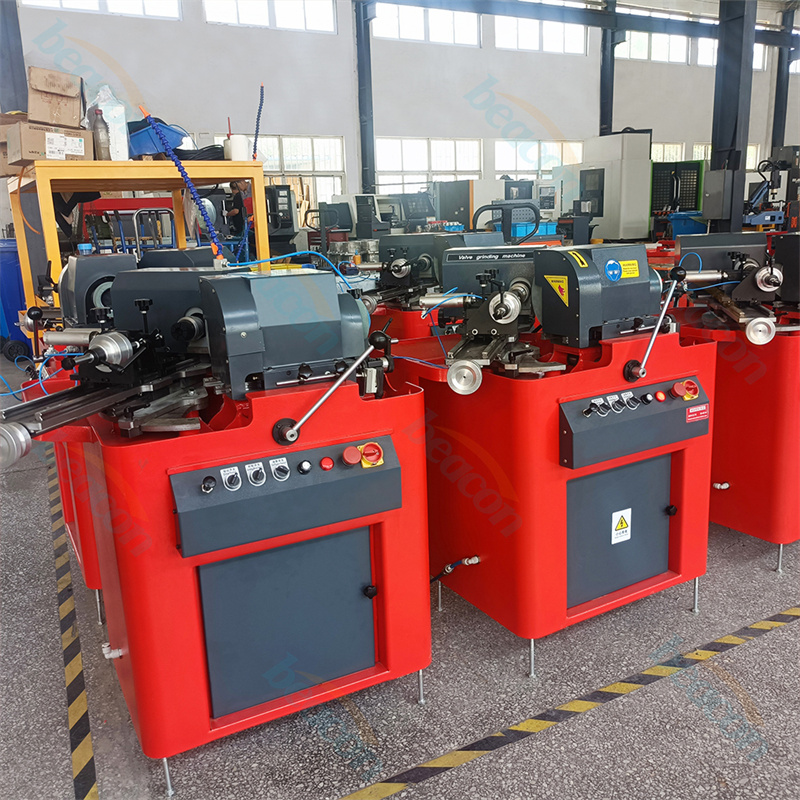

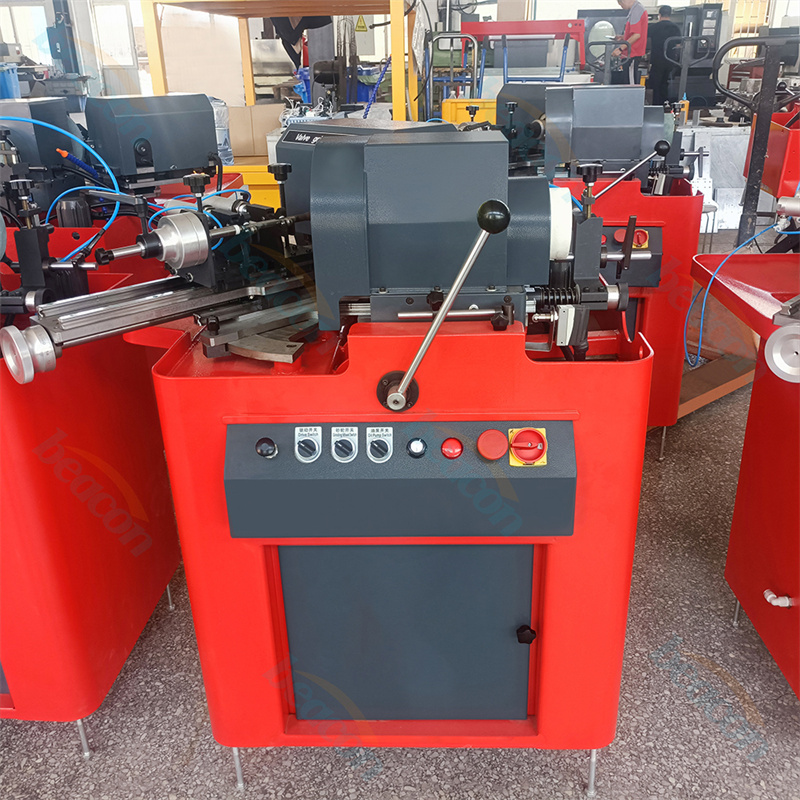

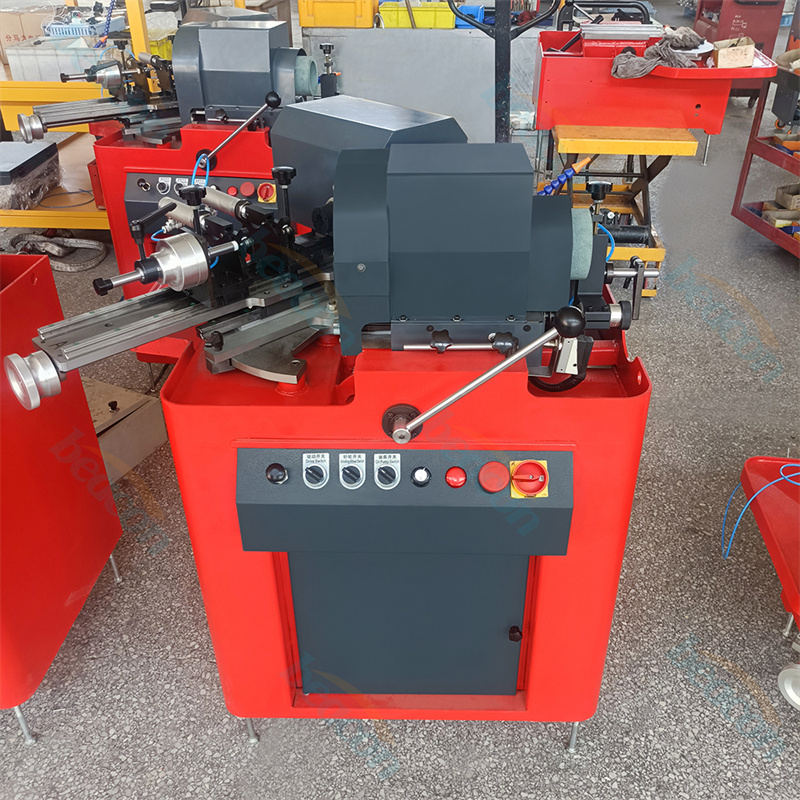

Cylinder Stem Grinder GS-100B High Efficiency Valve Refacer For Reface Car All Sorts Engine Valve
Instructions for use：
1.Adjustment for grinding angle of machine：
First determine the valve angle, then release the machine tool angle fixing handle, then adjust the scale to the same position as the valve angle.
2.Valve positioning device adjustment：
According to the diameter of the valve disc, select the driving rubber block, then install the rubber block into the driver, open the V cylinder switch and adjust the moving frame holder and cylinder top column according to the length of the valve rod. Adjust the drive line center handwheel so that the drive rubber block and valve in the same line. Turn off the cylinder switch and the valve is installed.
3.Valve working ring grinding：
The left hand holds the worktable walking scale handwheel, rotates the moving table. Hold the grinding wheel moving handle in the right hand and move the grinding wheel to the left so that the wheel is 2- -3 mm away from the valve, start the grinding wheel, drive and oil pump switch. Left and right hand adjustment so that the valve and grinding wheel gently contact, start grinding. Until the grinding ring is bright, the left hand rotates the hand wheel 360 counterclockwise, the right hand moves the grinding wheel to close to the switch wheel ,stop. Press the cylinder switch to remove the valve. Follow the above steps to process the next valve.
4.Valve end grinding：
First move the wheel to the nearest proximity switch, press the switch and the wheel can rotate. Tighten the grinding wheel platform limit fixed bolt. The valve is fixed to the v slot of the double v slot fixing frame, the grinding wheel motor is started, and the calibration knob is adjusted for grinding.
5.Chamfering grinding of valve end：
Fix the valve rod to the valve and adjust the position, then fix the valve to the v slot fixing support. Adjust the distance between the support and the grinding wheel ,start the grinding wheel. Right hand rotating valve,The left hand adjusts the dial knob to grinding
Specification:
GS-100A GS-100B
Valve stem dia (min- -max):(mm / inch) 3.5 - 20/0.16 -0.55 3.5 - 20/0.16 -0.55
Valve head dia (min-max):(mm / inch) 12 - 100/0.47 - 4 12 - 100/0.47 - 4
Valve lenght (min- -max):(mm / inch) 70 - 290/2.76 - 11.42 70 - 290/2.76 - 11.42
Angle grinding range:(degree) 10 - 57 10 - 57
Main wheel diameter:(mm / inch) 200/7.87 200/7.87
Cup wheel diameter:(mm / inch) 100/ 3.94 100/ 3.94
Main wheel width:(mm / inch) 15/0.59 15/0.59
Grinding wheel travel:(mm / inch) 90/3.54 90/3.54
Valve feed travel:(mm / inch) 90/3.54 90/3.54
Spindle motor:
Power:(W)
Speed:(rpm)
550
2900
550
2900
Valve driving motor:
Power:(W)
Speed:(rpm)
180
120-750
180
120-750
Coolant motor:
Power:(W)
100
100
Power supply:(KVA- V-Hz) 380V/50Hz 3ph or 220V/60Hz/3 ph
380V/50Hz 3ph or 220V/60Hz/3 ph
Air supply max:(bar/ psi) 6/87(max) 6/87(max)
Coolant tank:(L/US gal) 4/1 4/1
Space requirements:
Length:(mm / inch)
Width:(mm / inch)
Height:(mm / inch)
1050/41.3
1000/ 39.4
680/ 26.8
1050/41.3
1000/39.4
1080/42.5
Net weight approx:(kg/ Ibs) 180/ 396.8 240/ 529
