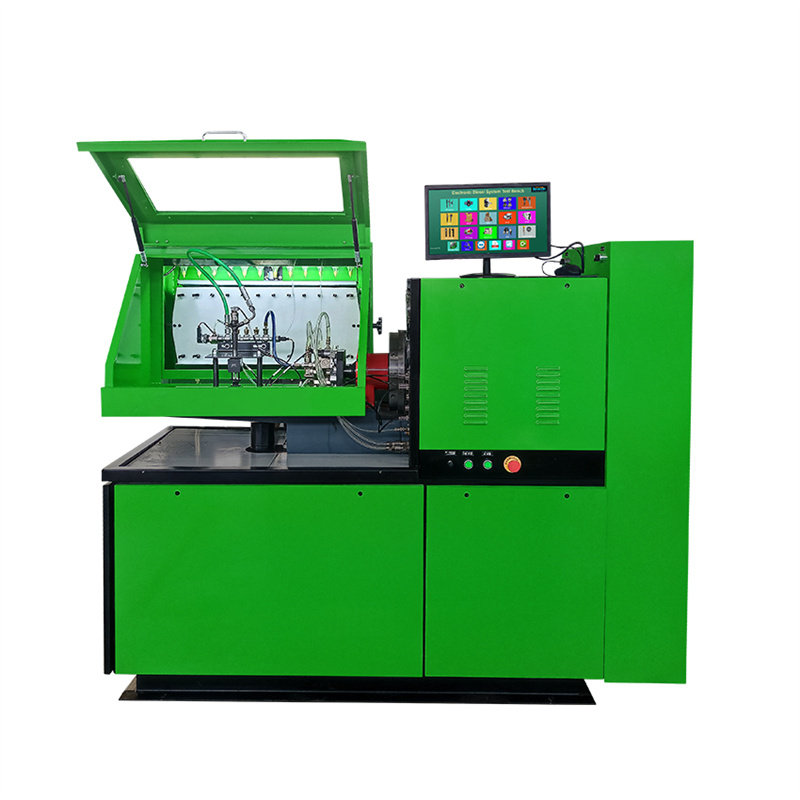

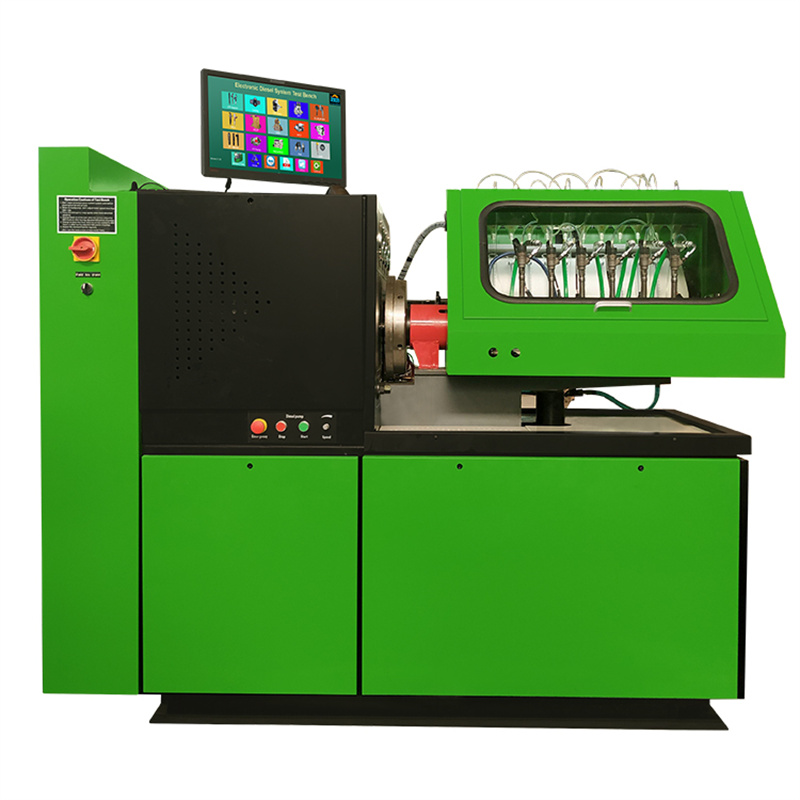

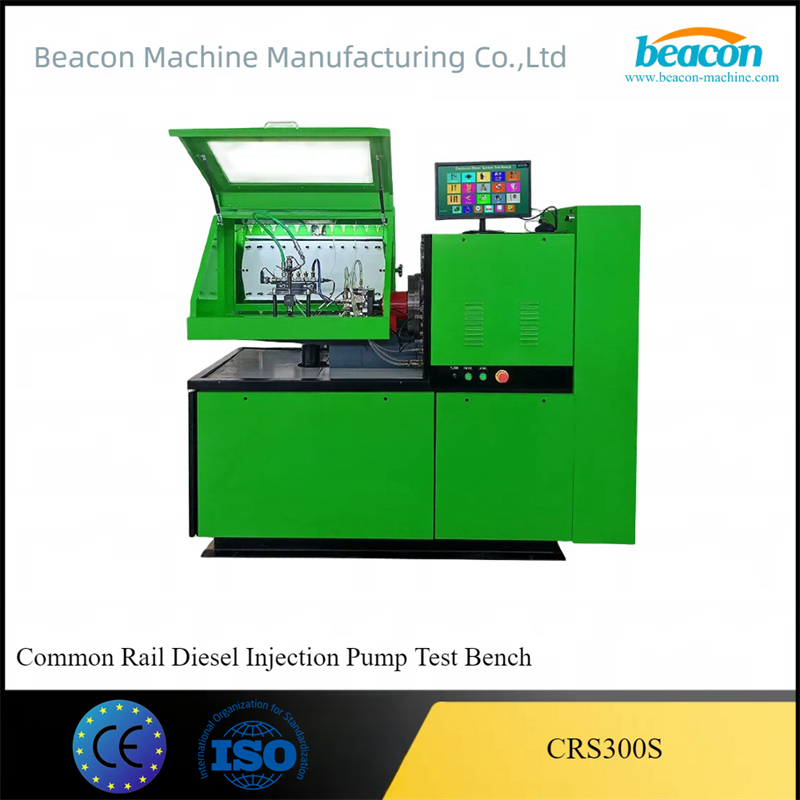

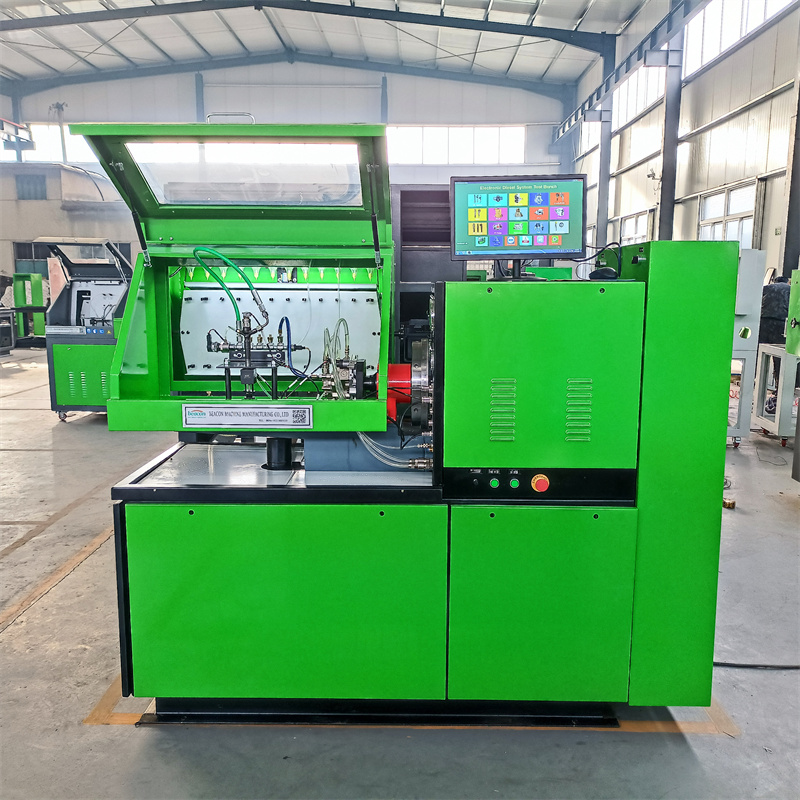

CRS300S diesel CRDI injector pump test bench

Main functions and features:

1,Industrial computer,windows operating system;

2,The database can query,store,modify,test data and generate a new database;

3,Closed-loop control, automatic adjustment and control of rail pressure, stable rail pressure, fluctuation value ± 1Mpa;

4,Can test the starting injection quantity of common rail injector;

5,Can test the maximum injection quantity of common rail injector;

6,Can test the pre-injection amount of common rail injector;

7,Can test the return amount of common rail injector;

8,Can test the uniformity of the fuel injection amount of common rail injectors;

9,LCD screen displays track pressure in real time;

10,Testing the performance of common rail pump proportional solenoid valves;

11,Check the tightness of common rail pumps and common rail injectors;

12,Detecting rail pressure sensor performance;

13,Adjustable drive signal pulse width and frequency;

14,Common rail injector injection times and injection times can be set freely;

15,With overpressure protection function, automatic shutdown when rail pressure is greater than 1600Bar;

16,Run-in experiments for common rail pumps and common rail injectors;

17,Plexiglass protective door for safer operation and easy observation.
