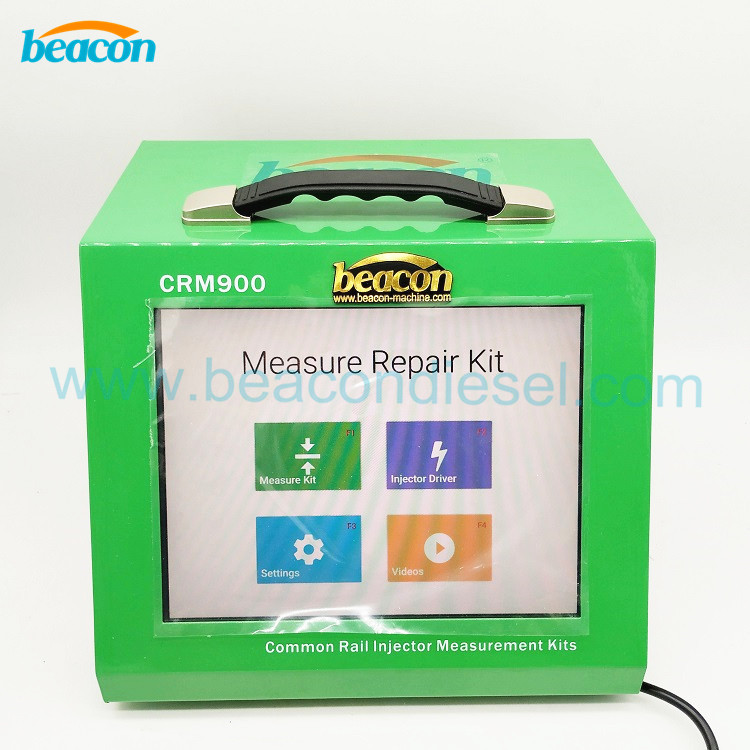

CRM900 common rail injector stroke measuring system, which include almost all common rail injectors stroke measuring standard data inside.
1. Adjust Needle Lift
2. Adjust Needle Opening Pressure
3. Adjust Total Lift of Armature Assembly.
4. Adjust Actual Lift of Armature Assembly
5. Adjust Solenoid Air Gap
6. Adjust Solenoid Spring Compression
7. Driving Armature
Measure thickness of calibration shims
Measure dimension of injector components
Provide the required thickness of calibration shims

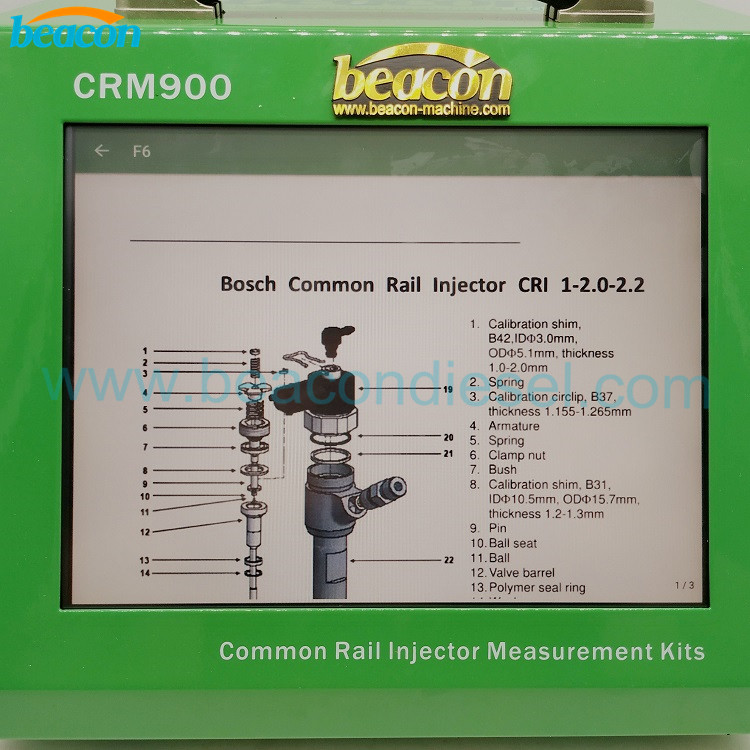

2:Complete database to cover Bosch common rail injectors
CRI 1, CRI 2, CRI 3 for Automotive engine
Tel:+86-13375386268
Email: beacon@beacon-machine.com
Matching set produced according to diesel injection technology
and therefore rapid development of test and control techniques.

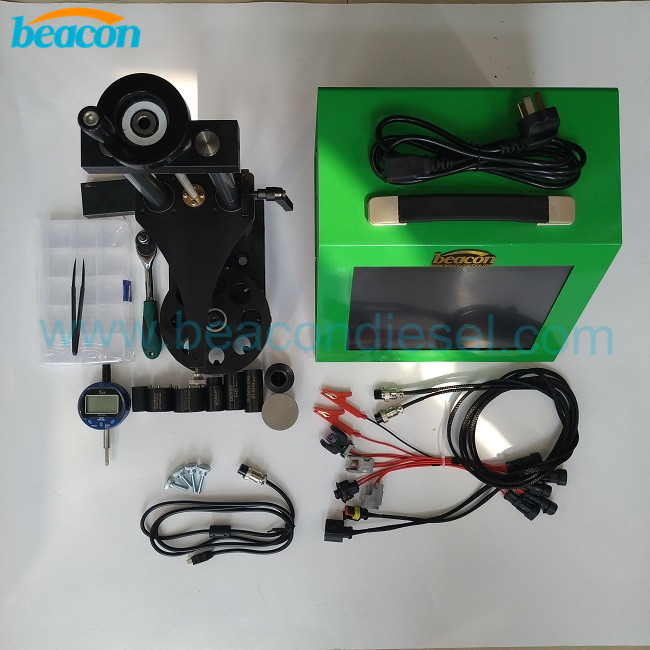

* Installation set which facilitates disassembling and assembling of all kinds of injector.
* Calibration set to read the injector size values and adjust them.

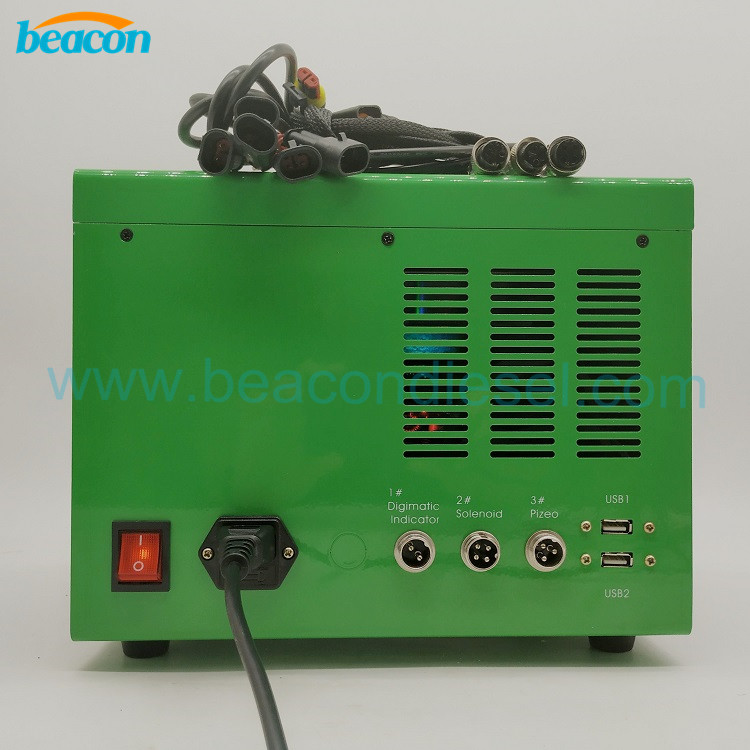

* Electronic unit to trigger the injector coil.
* Shim set to be used for injector adjustment.
* Digital microscopes to observe damages of injector parts clearly.
* Torquemeter to tighten injectors in accuracy value.
Software that contains spare part and setting values.
CRR920 user manual
The convenience of CRR920 matching set that it provides to its users;
* Opportunity to change all components including injector body.
* Opportunity to make Fixtures stroke measurements (0,001 mm.)
* Seamlessly repair and adjustment opportunity in minimum duration* Precise adjustment guarantee
with high quality shim set.
* Opportunity to reach part numbers and setting measurements with TTEX CRI 330 software.
