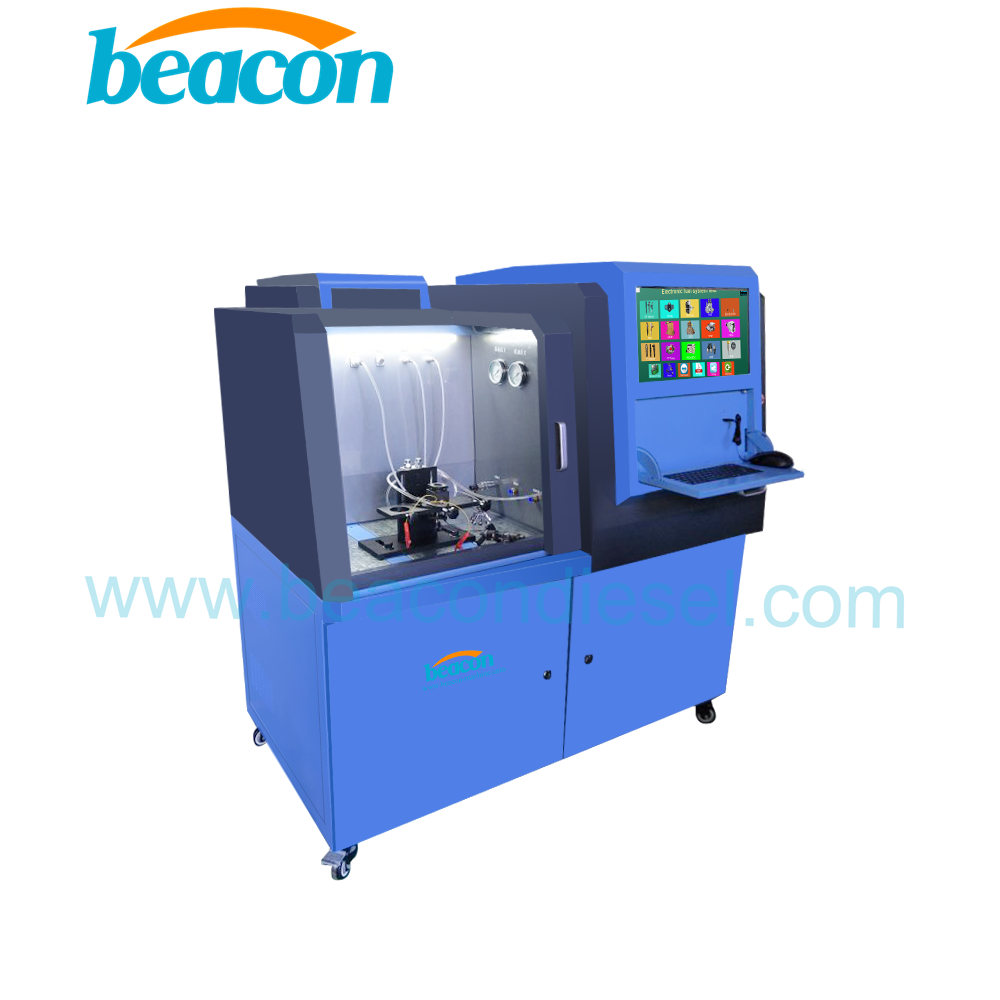

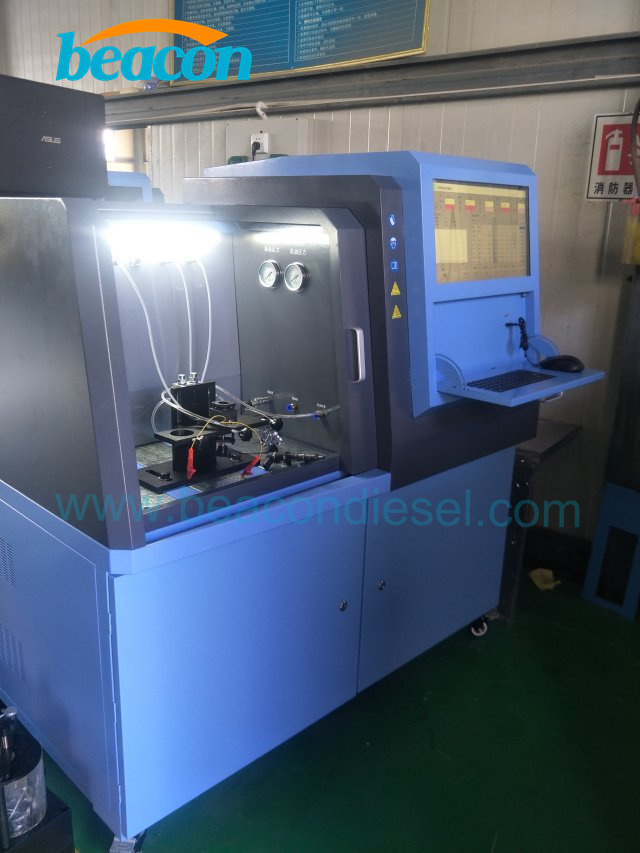

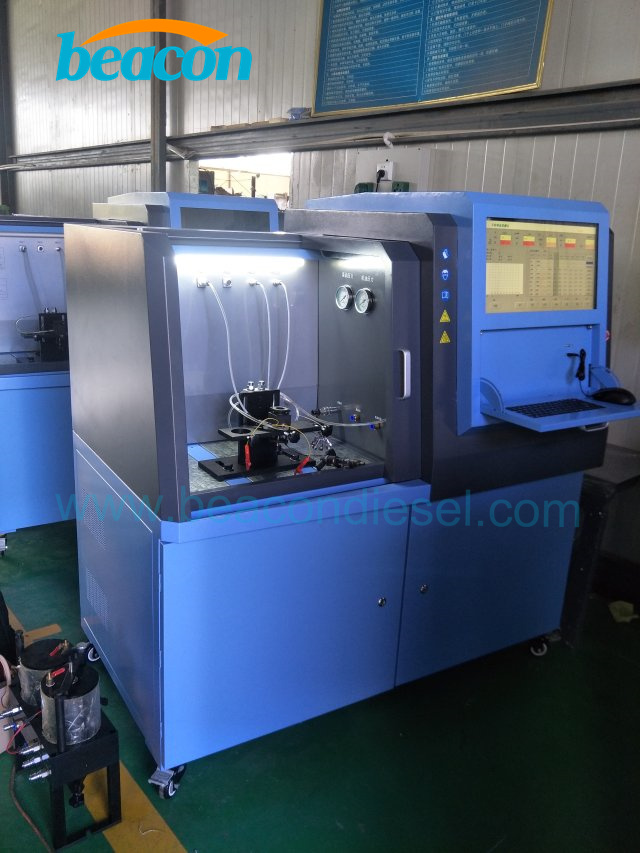

CR618 common rail eui heui icylinders diesel common rail injector HEUI test bench bank stand
Main motor speed :0-4000 r / min can be adjustable.
Motor power: standard 11KW
Fuel Injector open voltage Control range :12V, 80V, 150V Control accuracy: phase adjustment
Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ
Delivery Oil Count Control: 0-1000 times
Control accuracy :1 times
Fuel pressure control Control :0-2600 bar
Control accuracy :1bar
inquiry nowIntroduction
Introduction
--BOSCH CP3.3 common rail pump
--BOSCH original common rail +DRV
--Common rail system motor Power 5.5KW
--HEUI drive power:3KW
--Oil system pressure automatic adjustment system
--Diesel tan)heating,cooling,liquid level,temperature sensor,temperature security)
--Oil tank(heating,cooling,liquid level,temperature sensor)
--Industrial PC(with touch screen,built-in WIFI remote training,service,upgrade)
--Flow meter(German ZDM) injector flow sensor
--Flow meter(German KRACHT) oil flow sensor
--Drive circult board(solenoid valve electric parameters:to enhance the voltage,current,time,pull in voltage,current,time,
keep voltage,current,time,according to the setting of the parameters of production factory
Function:
Test of all the manufacturers of common rail injector
Test all of the manufacturers of piezo injectors
Test CAT HEUI (Oil common rail) injector
