Testing common injectors (over 7300 test plans)
Testing piezo injector
Bosch denso, siemens, delphi coding functions (more than 4800 coded data)
Testing all high pressure common rail pumps
Testing the Denso HP0 HP5 HP7 Pump
Test EUI EUP PT injector HPI X15 Q60
Test CAT HEUI C7 C9 3126B
System software supports 15 languages
Customized customer logo available
Tel:+86-13375386268
Email: beacon@beacon-machine.com

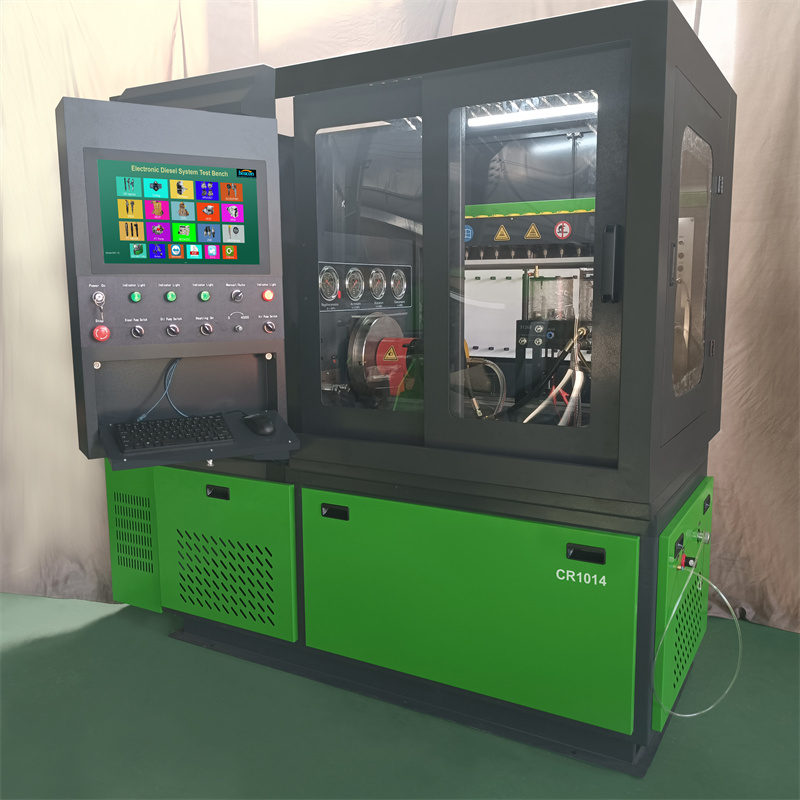

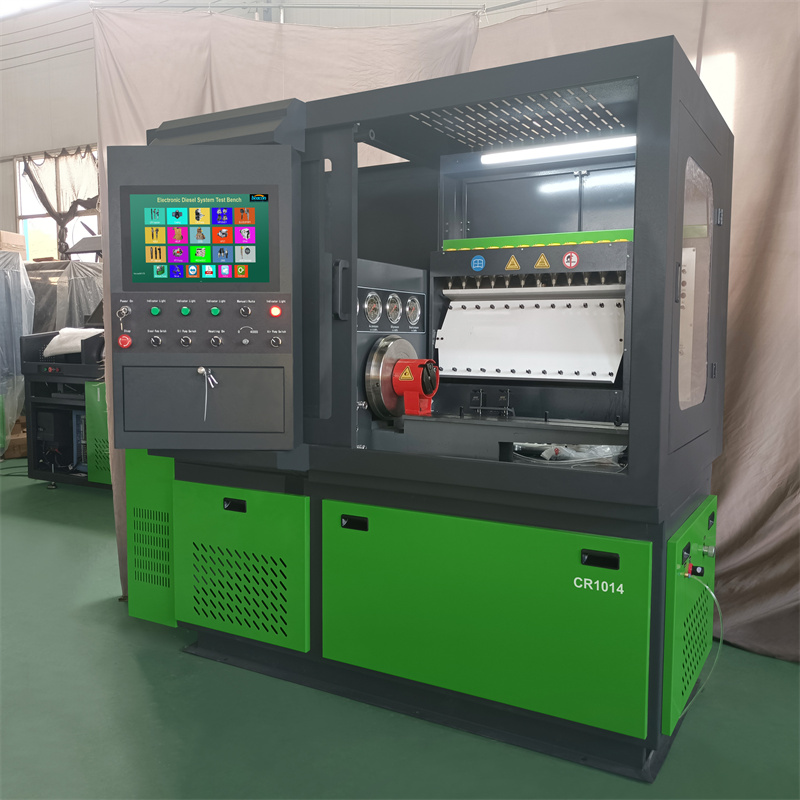

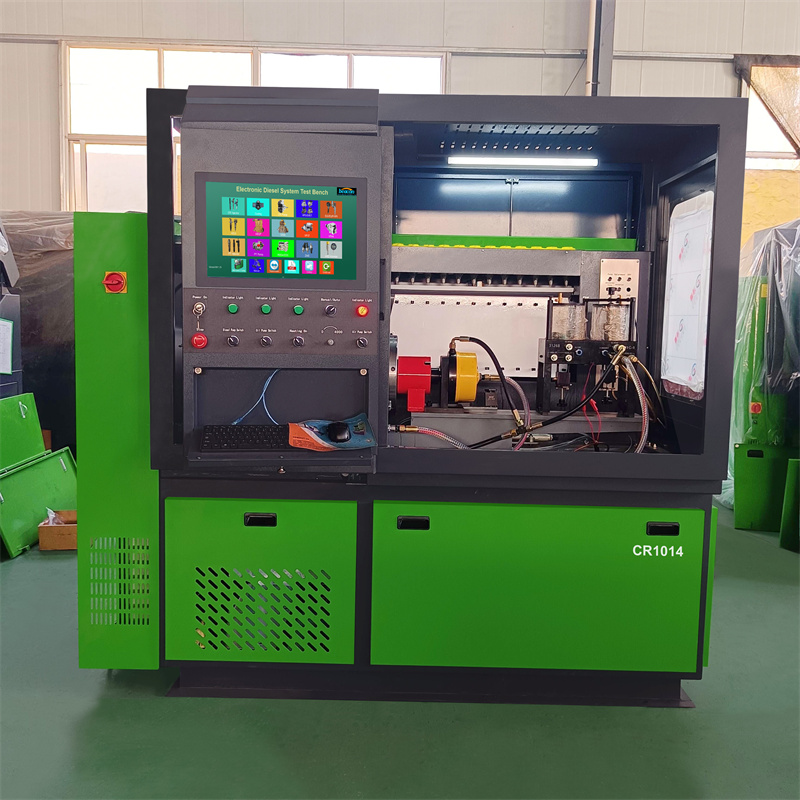

CR1014 Common Rail Diesel Fuel Injector Pump Calibration Machine Heui Eui Eup Test Bench
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test common rail (HEUI) injector
6.Test common rail (HEUI) engine oil pump
7.Test 320D common rail pump
8.Test EUI/EUP
9.Test VP44 VE VP37 pump
10.Test RED3 RED4 TICS ZEXEL electronic control pump optional function
11.Drive circuit board(solenold valve electric parameters to enhance the voltage current,time,pull in voltage ,current,time,keep
voltage ,current,time,according to the setting of parameters of production factory)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal
.Accept the speed sensor ,encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve
drive signal. Driving signal waveform can be programed.
Main parameter:
1. Host power: 11kw/15kw/18.5kw/22kw (according to customer needs)
2. Shaft speed : 0-3000r/min
3. Host center height: 128m
4. Wheel oil pump : 10L/min
5. Oil supply pressure : 0-0.4mpa
6. Fuel tank capacity : 40L
7. Oil tank capacity : 20L
8. High pressure oil supply: 0-250mpa
9. Oil supply: 0-35mpa
10. Hotbed control: 40 °C ± 2 °C
11. Oil hotbed :40 °C ± 2 ° C
12. Drive voltage :0-180v
13. Drive current: 0-25v
14. Input voltage: 220v-380v (according to customer needs)
