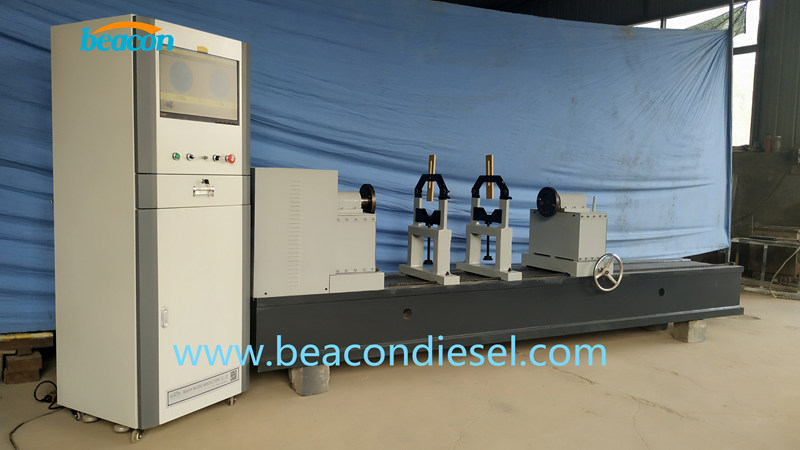

BDB-100 drive shaft balancing machine(soft bearing)

. System testing of high precision, reliable, easy maintenance, more advanced than other test systems. Adopt automatic tracking filter circuit and system computer that manufactured by abroad advanced integrated circuits to maximize the degree of integration of the electrical appliances, modular design and high-integrated circuit is a distinctive feature of the aircraft. Software interface designs friendly, you can store more than 100 rotor parameters, measurement is simple, you can only enter the type of numbers of the rotor than can enter into the measurement procedure, the screen displays the size of the unbalance and phase angle and real-time speed, rotor number, character prompt steps, real-time status display signal processing / de-emphasis status etc

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

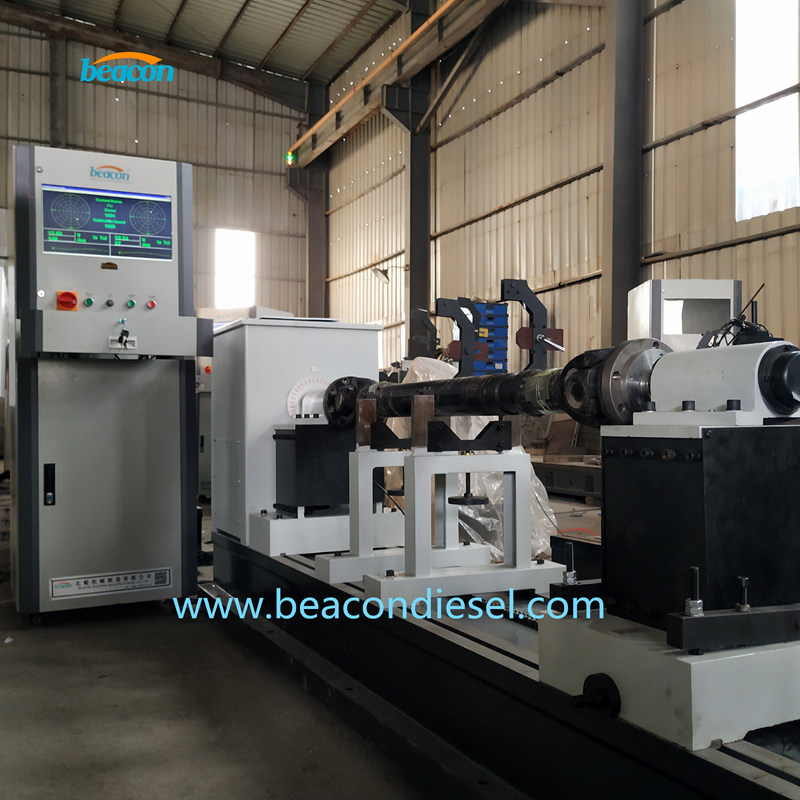

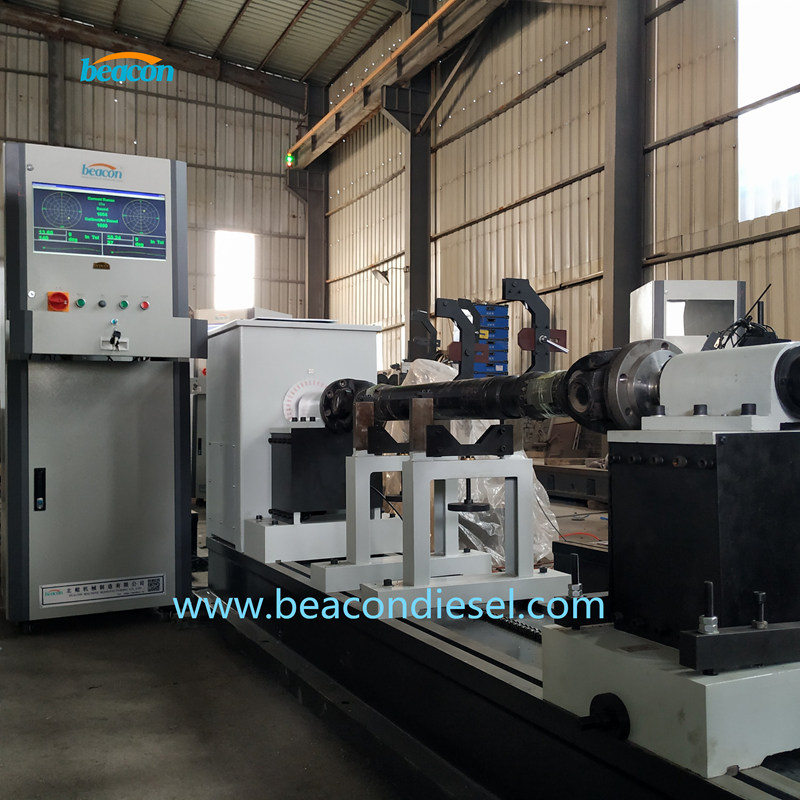

BDB series drive shaft balancing machine(soft bearing)

This series balancing machine is an ideal euipment for a car to balance and check the drive shaft. Just replace the installation of the workpiece fixture, you can make a variety of automotive drive shaft of the balancing correction, Dual-speed motor (inverter) drive, handle fast-brake brakes, double-sided balance, swing frame adopts semi-hard supporting structure, measurement systems use RYW-2001 balance measurement software, with industrial control computer and control cabinet.

parameter

MODEL

BDB-50

BDB-100(A)

BDB-200A

Max.mass of workpiece(kg)

50 kg

100 kg

200Kg

Max.length of workpiece(mm)

1500 mm

2000 cm

2400mm

Balancing speed min(r/min)

1200-3600rpm

900-3600rpm

900-3600rpm

Min.achievableresidualun balance(g.cm/kg)

≤5gcm/kg

≤8gcm/kg

≤20gcm

Unbalance reduction ration(%)

≥85%

≥85%

≥85%

Drive Power

2/2.4 kw

2/2.4(A: 2.2)

4 kw

Speed Mode

Dual-speed Motor

Dual-speed Motor(A-Frequency Control)

Frequency conversion
