Product Introduction

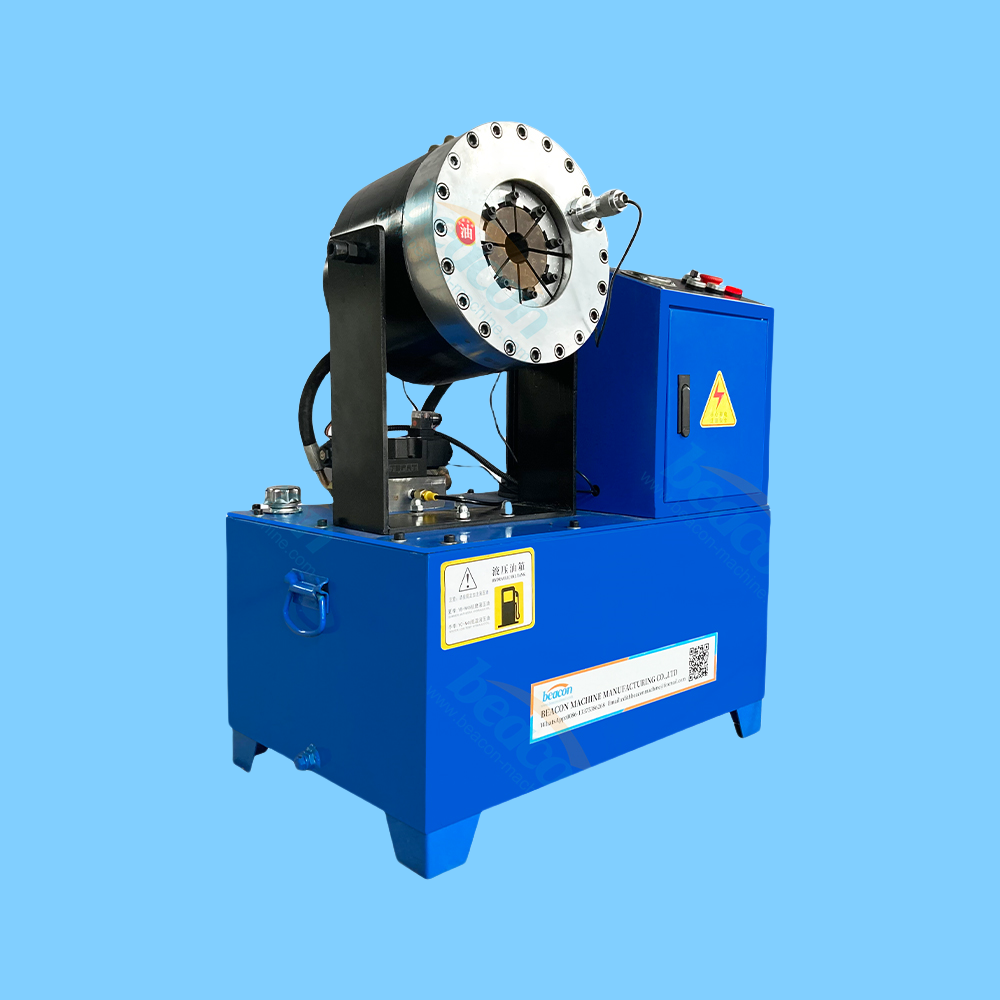

The pipe crimping machine is a hydraulic device used to crimp the matching metal pipes by applying contraction force through the mold of the pipe crimping machine, and firmly buckling the metal pipes on the matching engineering machinery high-pressure oil pipes or the brake pipes, oil pipes, air conditioning pipes, and power pipes on the car.
The pipe crimping machine is suitable for crimping various types of mechanical high and low pressure oil pipes, air pipes, water pipes, cable joints, automobile air conditioning pipes, automobile power steering pipes, oil pipes, gasoline supply pipes, as well as building pipes and daily hot water pipes. It is widely used in vehicles, engineering machinery, hydraulic machinery, welding and cutting equipment and other industries.
Item | Parameter |
Crimping range | 6-51 mm |
Number of dies | 10 sets |
Accuracy | 0.01 mm |
Pump output | 2.5L/SL/1OL |
System pressure | 3 1.5mpa |
Motor power | 3kw |
Voltage | 220v/240v/380v/415v(optional) |
Crimping force | 600 t |
Working efficiency | 200 pcs/h |
Maximum opening diameter | 114mm |
Maximum opening tolerance | 30 mm |
Machine size | 860*640*1300 mm |
Packing size | 900*685*1410 mm |
Net weight | 310 kg |
Gross Weight | 326 kg |
