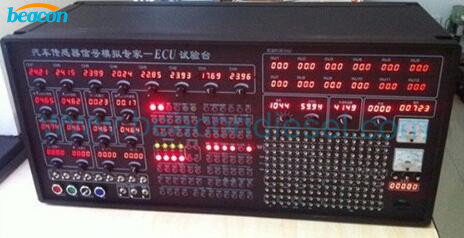

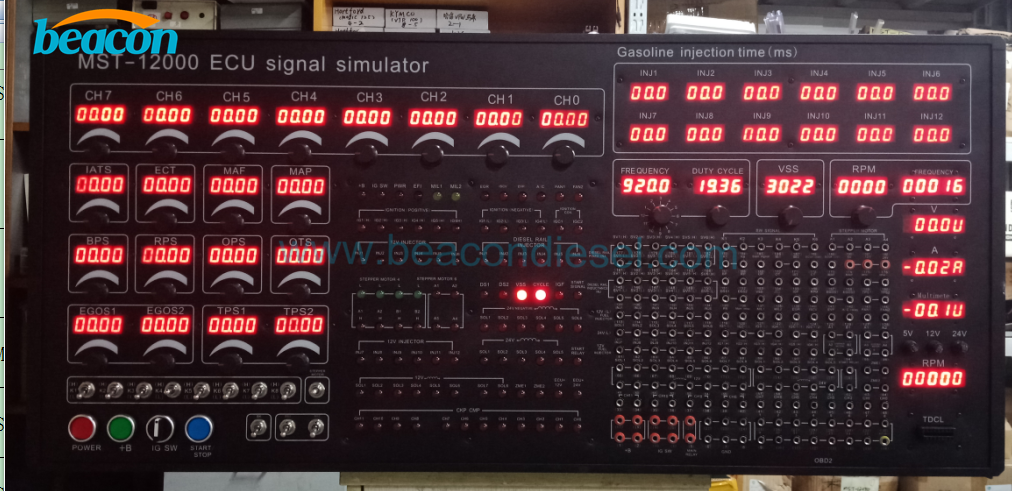

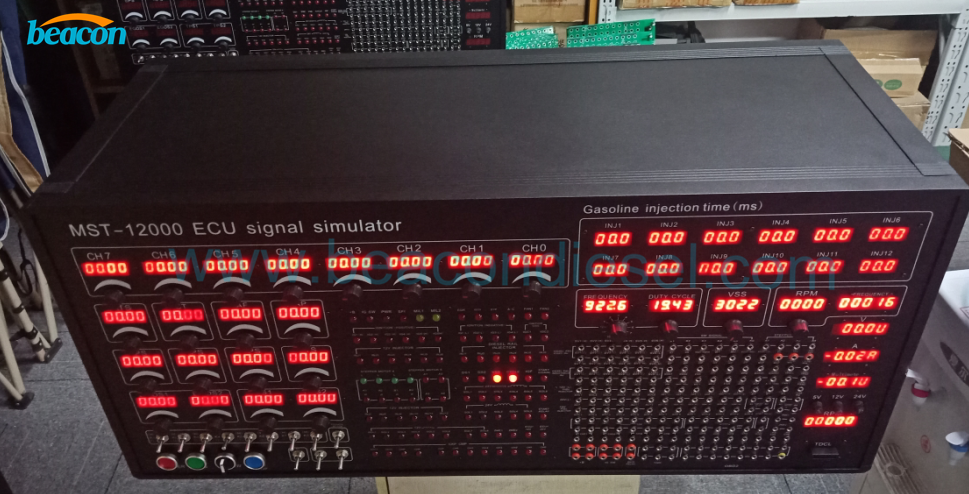

BC-MST-12000 ECU automotive circuit tester

Special Feature:

1.All cars crank signal simulation experts
The current could be set as discretionary waveform and output by twelve circuits, it will produce crankshaft,
camshaft signals (Hall, magnetic, optical signals) that works on all nowadays cars. The waveform data will be
saved by the computer permanently, and it also could update online for free.
2. Magneto electric crankshaft signal is insulated by transformer to ensure no interference between signals.

3. All cars sensor signal simulation experts
 It could simulate rotate speed signal, car speed signal (Hall, magnetic, optical signals), ABS wheel speed signal,
the oxygen sensor signal, throttle signal, accelerator pedal signal, air flow meter, intake pressure sensor
(simulation, digital) and knock sensor etc.
4. All cars Actuator Drive experts
Revolution meter, odometer, blower control module, ignition Module, Frequency and the pulse width control
solenoid valve, car audio amplifiers etc.
5. All cars actuator simulation experts:
Actuator simulation for the diesel common rail injector, rail pressure regulator, ignition coil, oil atomizer, idle speed
 stepper motor, ultrasonic generator etc.


Function:
*Users can set for the crankshafts independently, according to the different engine control systems
*Signals output (Applies to all car computer drive)
*Automatic transmission input, output shaft signal simulation
*Waveform set date input
*Engine speed signal output
*Car speed signal output (Hall signal, magneto electric signal)
*Three or four channels of ABS wheel speed signal output
*Computer board working current test
*EGR solenoid valve simulation
*CANP Canister Purge solenoid valve simulation
*Tachometer simulation and drive
*Blower control module driver
*Idle valve simulation
*Stepper motor simulation(four, six lines)
*Fuel injector simulation
*Ignition coil simulation
*Ignition module to simulate
*Reversing radar (ultrasonic wave) detector drive
*Automatic transmission shift valve simulation
*Diesel injector simulation
*Rail pressure regulator simulation
*Shift quality valve simulation
*Oil pressure regulator simulation
*Water temperature, intake air temperature, outdoor temperature, evaporator temperature sensor signal
simulation
*Oxygen sensor signal simulation (manual operation)
*Accelerator pedal dual channel signal simulation
*Throttle signal simulation
*Air flow meter, Intake air pressure sensor,(simulation, digit)signal simulation
*Brake switch simulation
*Clutch-Switch simulation
*AC request signal simulation
*A/C relay simulation
*Oil pump relay simulation
*radiator-fan relay simulation
*Audio signal output, power amplifier drive
*pressure switch simulation
*Fuel injection pulse width measurement
*The central door lock server simulation
*Burglar resistance simulation
*knock sensor signal simulation
*User functionality extensions
*Board working current test
