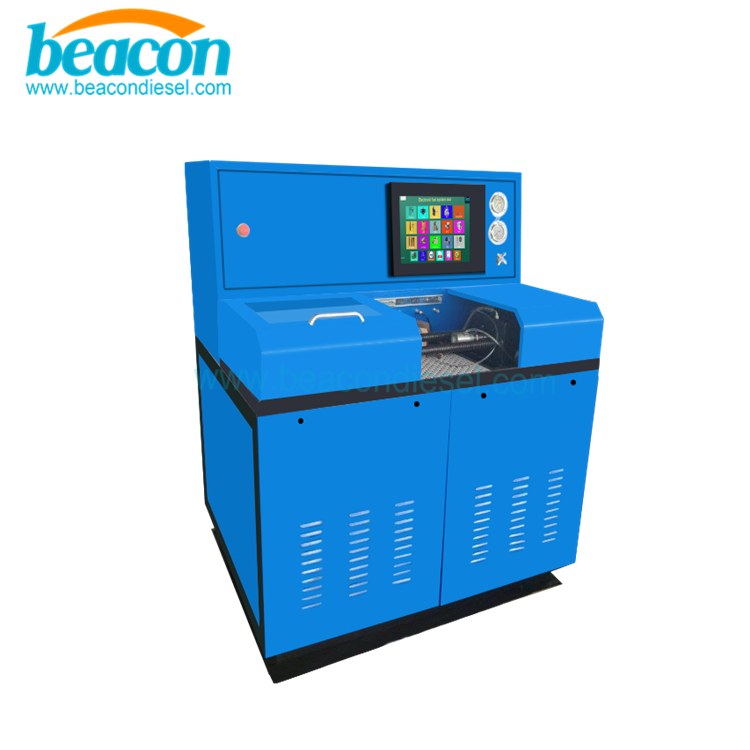

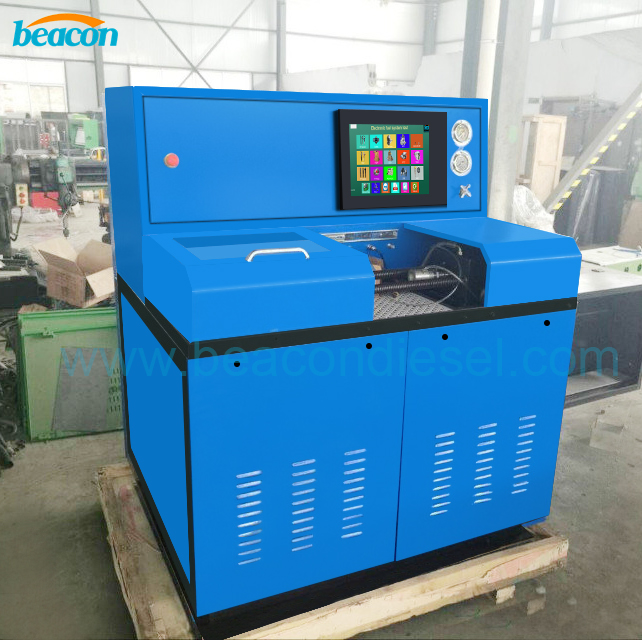

Automobile auto engine stand PT fuel testing instrument PT411 hydraulic diesel injection pt injector pump test bench

Rated voltage
 380V AC
Oil pump Rated work pressure
2.5MPa
Oil pump electromotor power
0.55KW
Main electromotor power
1.1KW
Clip tightly strength
1.9KN
Max route of travel of the piston
70mm
Weight
 400kg
Features size
980 × 720 × 1510mm

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

PT411 testing instrument is the appropriation COMAX PT fuel testing instrument,Be applicable to the PT cylinder type and the PT( K) types test that waits various model number to spray the oil machine to spray the amount of oil. Main characteristic: 1.Numeral the manifestation sprays the amount of oil Read the number keeps the view,The every time calculate accuracy is ±1ml,you can get the stable data in one or two testing, The number is accurate and stable,The accuracy is high. 2.90~500ml/1000 stroke of various model sprays the oil machine can be measure to spray the amount of oil. 3. The back of precision presses to imitate the work mode, Imitate the pressure of the actual work condition process in the air cylinder inside spray the compression oil,It enables the two condition to become same ,one is the spray the oil in the testing instruction, the other is the spray the oil in the air cylinder of engine. 4.The cam usage is convenience,Can choose the different cam according to the oil the nozzle apparatus of different type. 5.The system controlled by PLC,work condition exactitude, The accuracy is high;the fuel tank temperature is controlled by auto system,Guaranteed the fuel oil works in the stipulation temperature range. 6.The working pressure indicating system can facilitate direct-viewing monitors various oil ducts flowing tubing head pressure the change situation,Guarantees the survey the stability and the accuracy. 7.The display board control button uses mutually locks the electric circuit control,Increased the security.
