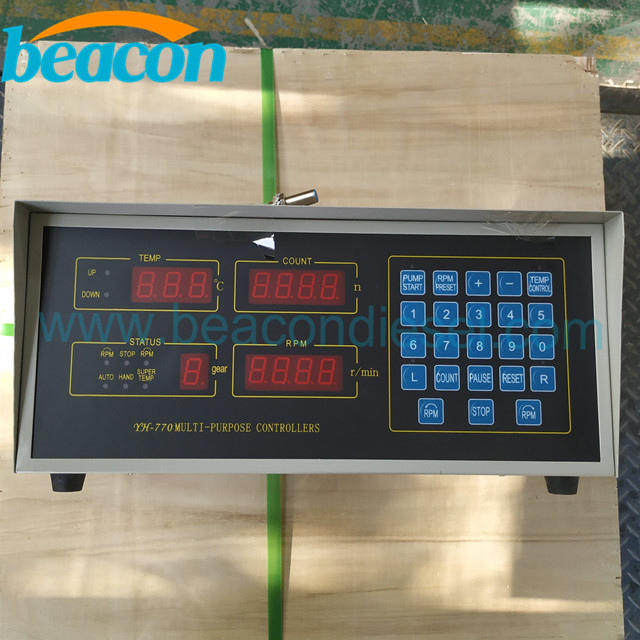

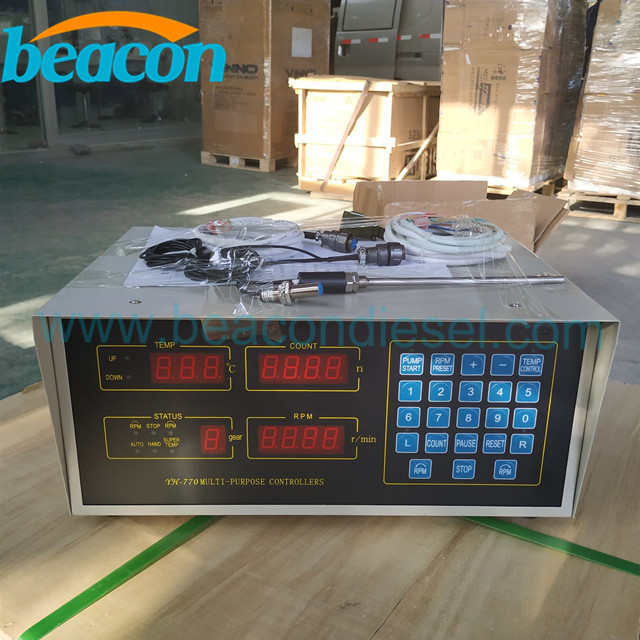

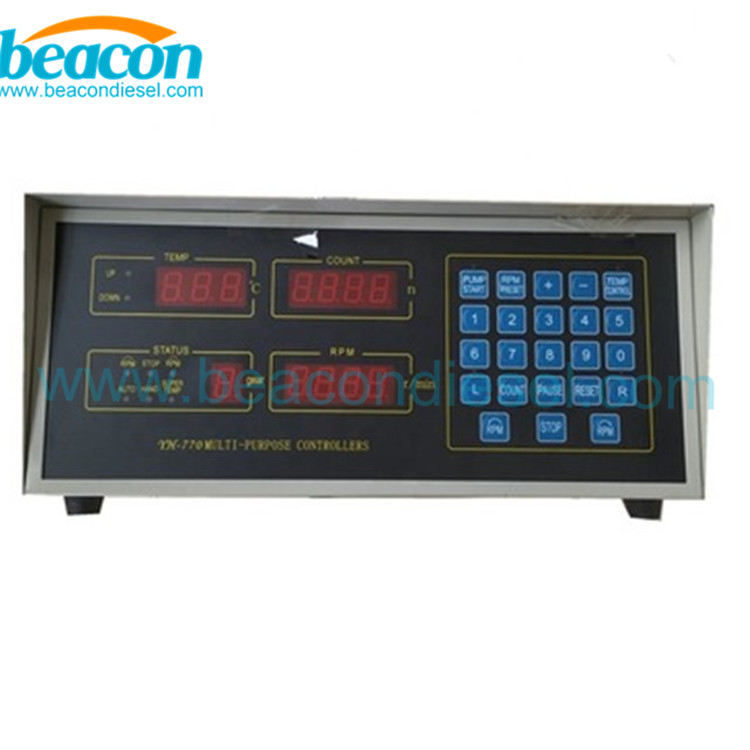

Automatic diagnostic tool YH-770 diesel fuel injection pump tester controller yh770 for 12psb mechanical test bench
The controller adopts advanced single chip microcomputer control technology, which can detect and display the amount of oil and control the speed.
Measurement and display control, fuel injection frequency control, overtemperature indication and adaptive function, can adapt to the control of different gear positions of different oil pump test equipment.
Add the original anti-lock technology, work steadily and reliably, and can be applied to any type of inverter.
inquiry nowIntroduction
YH-770 Apparatus for diesel fuel injection pump test bench for frequency conversion timing injection pump test bench at the present time. The controller adopted SCM control advance technology. It can test and control also display temperature, control and display rotate speed, enactment spray times, temperature overtake protect, sensor fall down protect, adapt itself function, and adapt more different kinds of test-bench, control different gears. Whole design, keyset numeral input adopted on straight, simple and easy to see. Adopt fit together form in shape, easy to form and detach, and easy to repair. In electron circuit design, had manifold consider improving anti-jamming, so that the control can stably and reliably to work and for a longer time in industry locale and use condition. The controller special reserve the high speed data communication interface for future many sets of networking, achieve the modern management.
Features
1. enactment and memory ten groups principal axis rotate speed, numeral switch on directness.
2. adapt itself function, and adapt more different kinds of frequency conversion
3.direct switch by number
4. "+","-"key to tiny adjust rotate speed.
5. .The setting parameters inputed by keyboard
6. the count of oil injection set by digit
7. runaway indication and emergency stop
8. oil temperature up or down limit indication
9. rotate speed warp self-correcting.
10. display and keyboard by oneself, easy to control.
parameter
|
Supply voltage
|
AC 220V±20%
|
|
Power expend
|
<50W
|
|
Temperature control range
|
0-99.9°C single way(distinguish ratio 0.1°C )
|
|
Speed measure range
|
30~4000r/min
|
|
Rotate speed set up in advance
|
40~4000r/min (0,1,2,....9. ten classes)
|
|
oil spray times
|
1~3999 times
|
