FUNCTION:
1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.

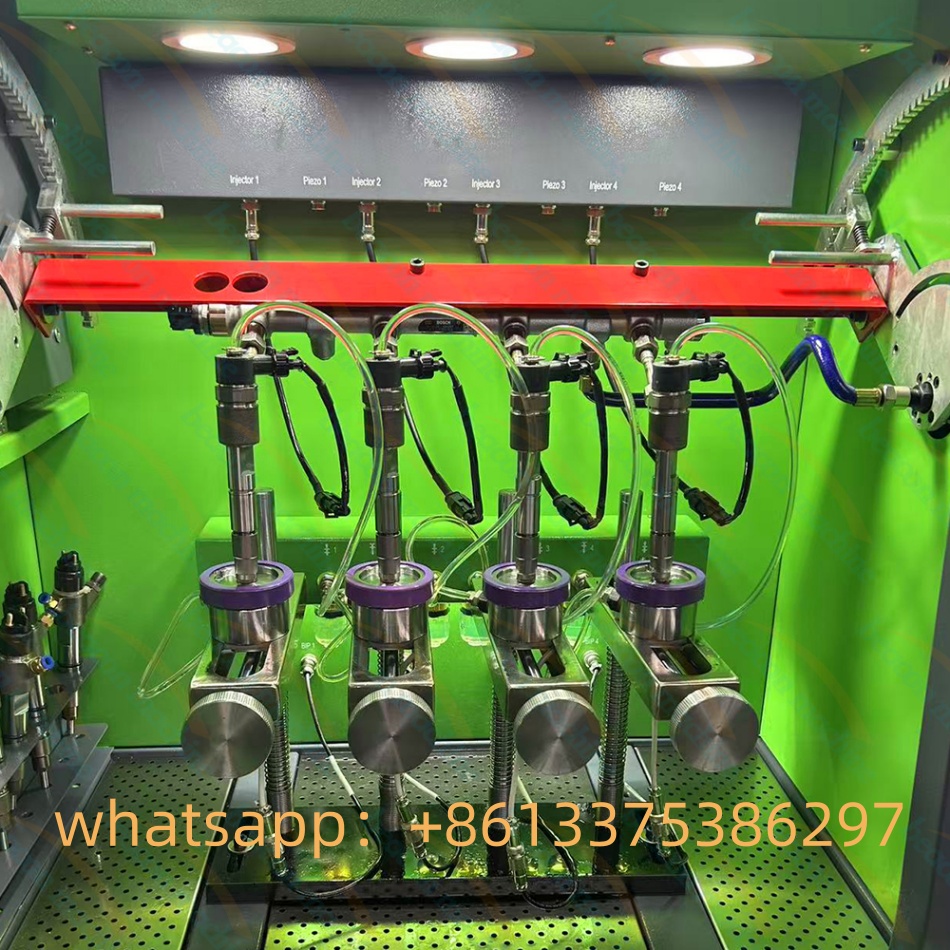

2. Test 4 pcs of injectors at the same time.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7. Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
11. All injector coding data.
OPTIONAL FUNCTIONS:
1. Test injecto response time.(BIP function).
2. Delphi E3 double pulse control system.
3. AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator).
4. Test 6pcs injectors at the same time (additional flow sensor can be added).
1. Current
|
0-11.5A
|
2. Motor power
|
5.5KW
|
3. Temperature range
|
38-42°C
|
4. Rail high pressure
|
240Mpa
|
5. ECU internal boost
|
0-200VDC
|
6. Power supply
|
220V/380V
|
7. Common rail pump
|
Bosch CP3 pump
|
8. Oil tank capacity
|
19L
|
9. Weight
|
350KG
|
