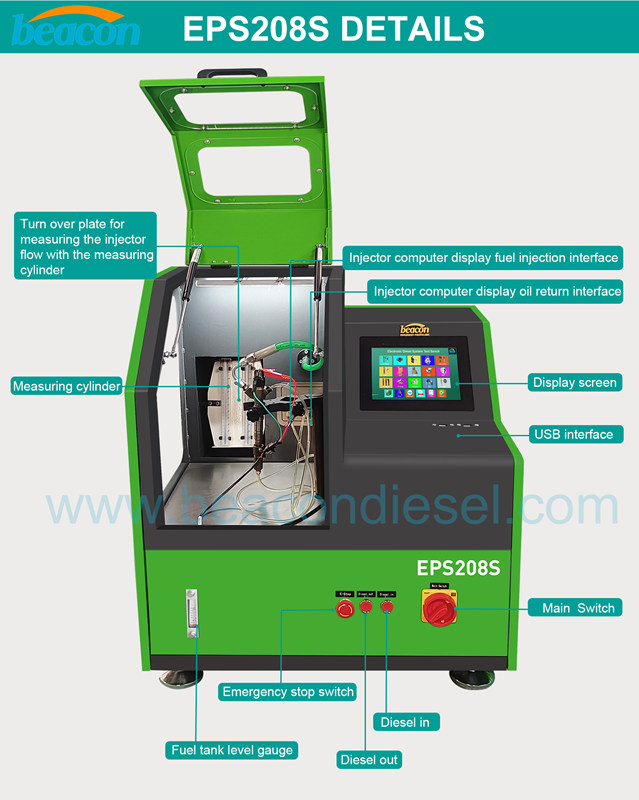

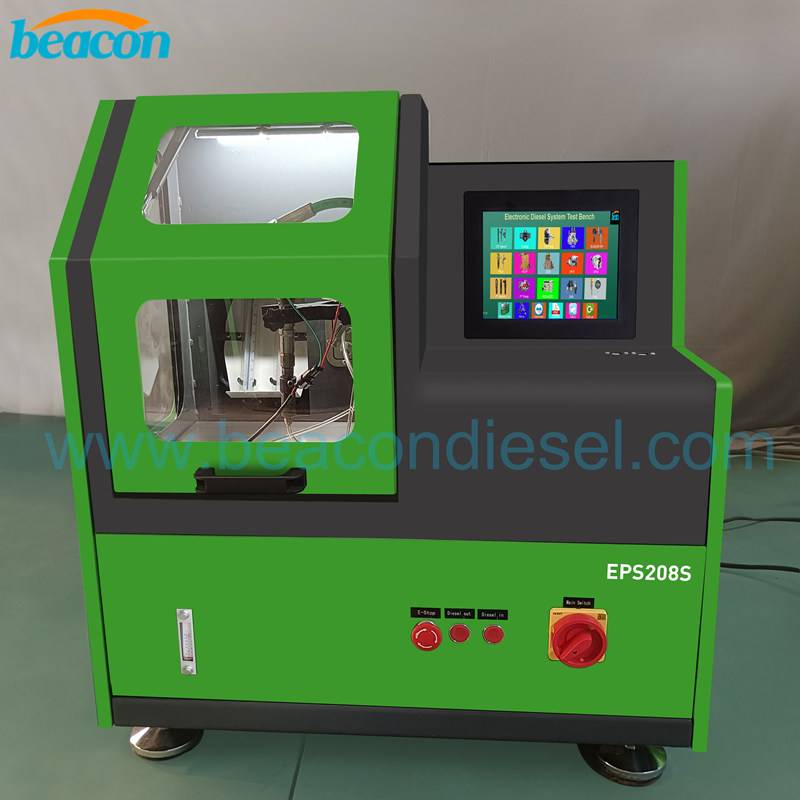

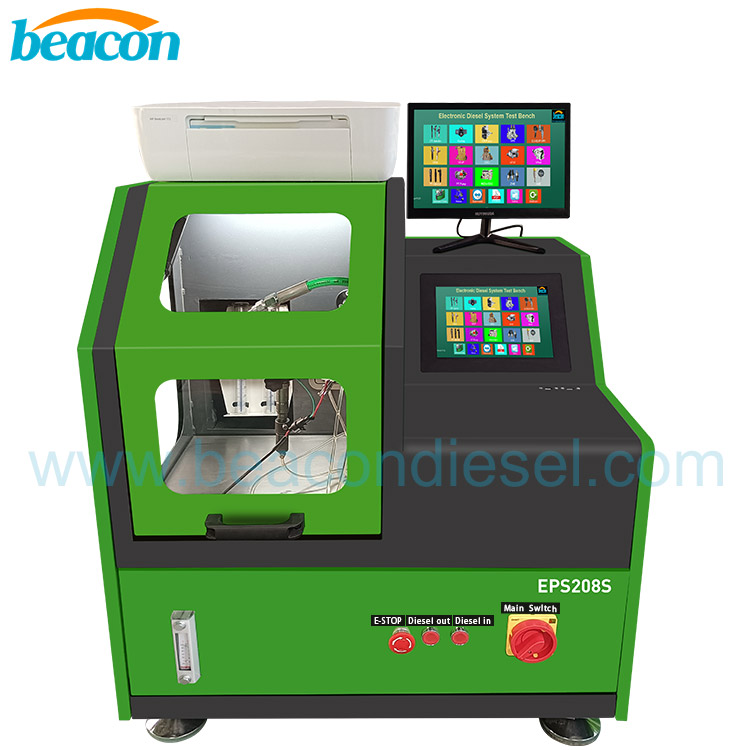

Auto Electric Common Rail Injector Test Bench EPS208S with Coding Function Repair Machine Injector Test Bench

CHARACTERISTIC

 1. Controlled by industrial computer in real time, Windows operating system.

 2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;

 3. More than 3000 kinds of injector data can be searched and used.

 4. It is installed B OSCH common rail pump to provide 0~2000 bar

 5. Rail pressure can be tested in real time,

 6. Provide pressure overload protect

 7. Pule and frequency of the injector can be adjusted.

 8. Injection time can be set.

 9. Protection function of short-circuit.

 10. Precise measurement, easy operation, low noise.

 11.Frequency converter inside to keep the RPM.

 1. Pulse width:0.1~20ms

2. Continuous injection times: 0-1000

3. Fuel temperature :40±2°C

4. Rail high pressure: 0-2000 bar

5. Test oil filtered precision:5μ

6. Input power: 220V 1phase

7. Rotation speed: 0~3000RPM

8. Oil tank capacity:16L

9. Overall dimension(MM):900*900*800

10. Weight:150KG.
