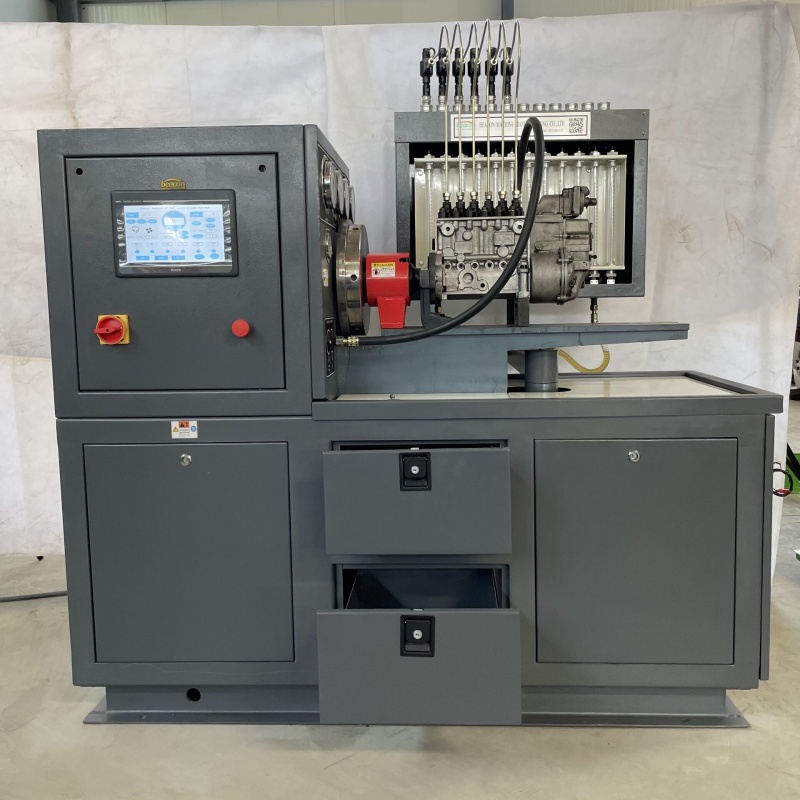

12PSD series diesel fuel injection test machine is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.

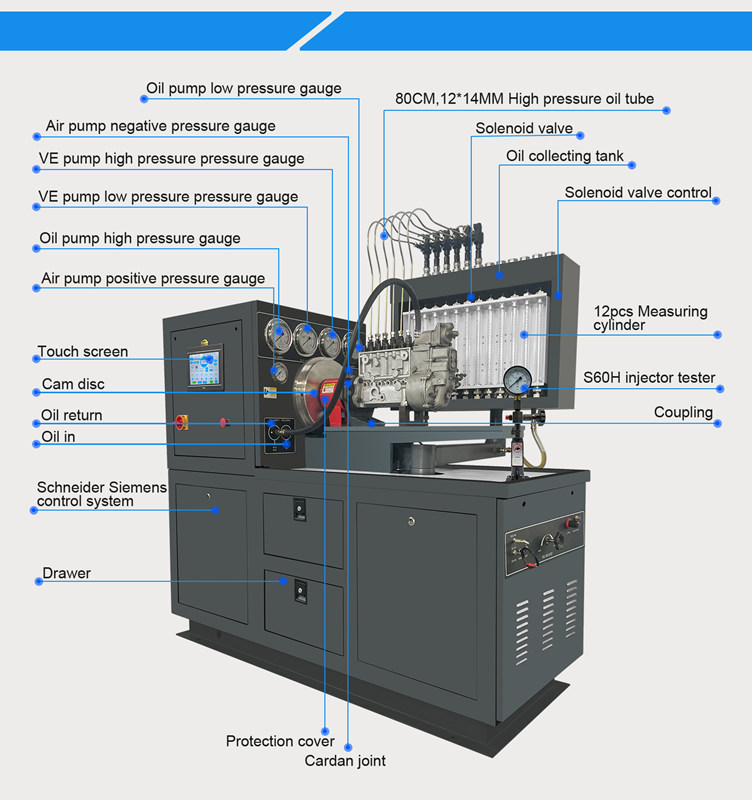

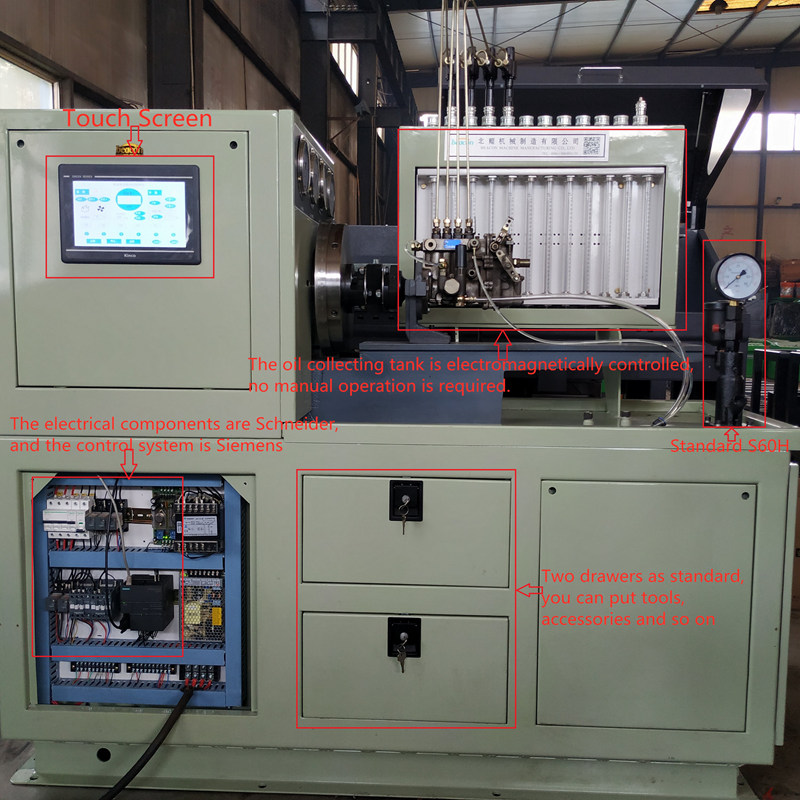

Difference from 12PSB test bench
1.12PSD is equipped with S60H as standard, the operation will more convenient.
2.Two drawers are standard, which can store more tools and accessories.
3.The oil collecting tank is controlled by a solenoid valve and needn’t to be manually turned over.
4.Schneider and Siemens control system, 10-inch touch screen, easy to operate.
5.Thickened shell
Tel:+86-13375386268
Email: beacon@beacon-machine.com

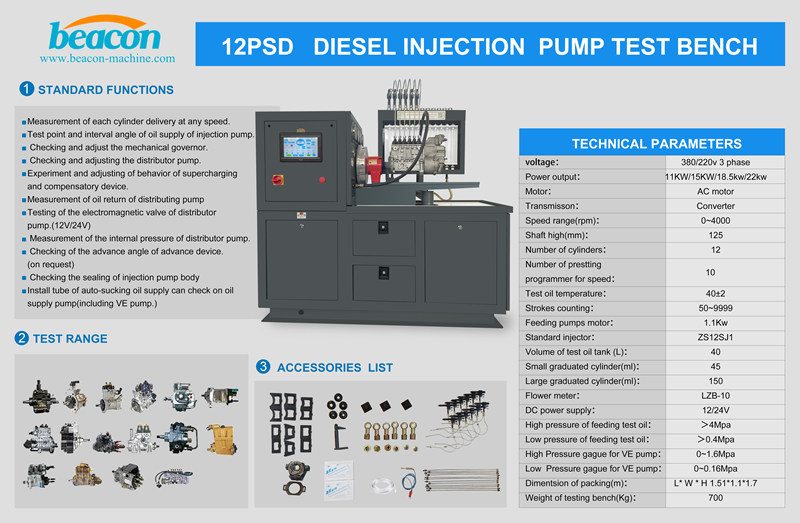

Main functions:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
|
1.test cylinders:12 |
5.5 |
