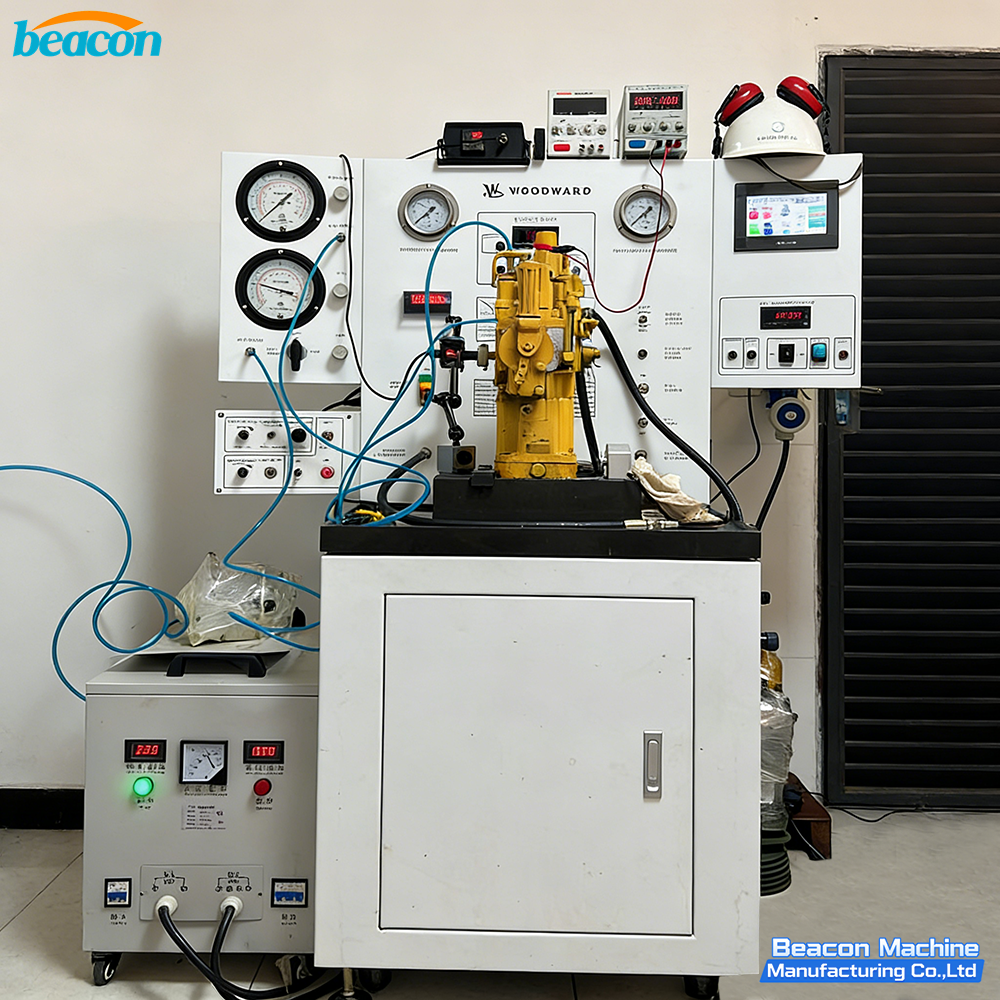

Frequently Asked Questions about BK2000 Speed Governor Test Bench

To help everyone have a clearer understanding of the BK2000 speed regulator test bench, we have compiled the most frequently asked questions from customers and will answer them one by one for you:

Q1: What is the testing range of BK2000?

A: Can test UG-8, UG-32, UG-40, 3161, PG (with standard base and driver) produced by Woodward company PG-EG、EGB 200、300、PG500、SG、PSG、EGB-2、EGB-58、LSG-10、PG-PH、EG-3、EG-10、TG-13 Type governor; Simultaneously supporting non Woodward brand speed controllers and actuators such as EUROPA, RHD6, TY111, TY555, etc.

Q2: What is the difference between the 80000 speed regulator test bench and the 90000 version?

A: The software of the two is consistent, with the core difference being the hardware configuration:

Motor: A is a variable frequency motor, B is a servo motor

Driver: A is a regular type, B is a high-precision type

Electrical appliances: A is Chint Electric, B is Schneider Electric

DC power supply: A has no DC steady current power supply, B has a DC steady current power supply

Gas liquid pressure difference gauge: A is a regular type, B is a Brady type

Control transformer: A is an autotransformer type, B is an isolation type

Programmable controller: A is a Siemens replica, B is a genuine Siemens product

Q3: Is there a cheap solution for testing only small speed controllers such as UG-8, UG-10, and RHD6?

A: Okay. When customers only test small speed controllers, they can subtract the speed increasing box (used for measuring PSG, TG) and DC power supply (used for measuring EG, etc., outputting 0-1000mA)

Q4: What is the difference in packing list between low configuration and high configuration versions?

A: The low configuration packing list does not include 24 (voltage regulator output line) and 25 (current regulator power supply), and all other configurations are identical

Q5: Does it come standard with a gearbox? What product needs to be tested?

A: Both high and low configurations of BK2000 come standard with a gearbox, which is required for testing PSG and TG series products. Other models do not require additional configuration.

Q6: Is the motor AC or DC?

A: The motor of BK2000 is an AC motor, consistent with the original Woodward solution, with parameters of power 3.7KW, torque 12N. m, rated current 12A, rated speed 1200rpm, and maximum speed 1500rpm.

Q7: Can the working voltage, speed, and measurement accuracy meet the requirements?

A: There are differences in 2 items (speed range), but all others can meet the following requirements:

Working speed range: Without adding a gearbox, the maximum speed can reach 7500RPM, with a speed accuracy of ± 1 RPM

Oil pressure measurement 0-4MPa, level 1.6, consistent with the original factory accuracy in the United States, can meet the requirements

Q8: What is the difference between Indian made BK2000?

A: Our equipment has three major advantages:

Production experience: With over 20 years of production experience, the equipment is more durable

Accuracy standard: higher machining accuracy, speed controller testing accuracy reaches 1.2 generations

After sales guarantee: Domestic factories can provide comprehensive accessories and after-sales support, without relying on overseas procurement

If you have any other questions, please feel free to contact our sales team at WhatsApp:+86 18253885135.

 We will provide you with one-on-one exclusive answers
